Carleader 4CH AHD 1080P Mini Mobile DVR Support TF Card Storage

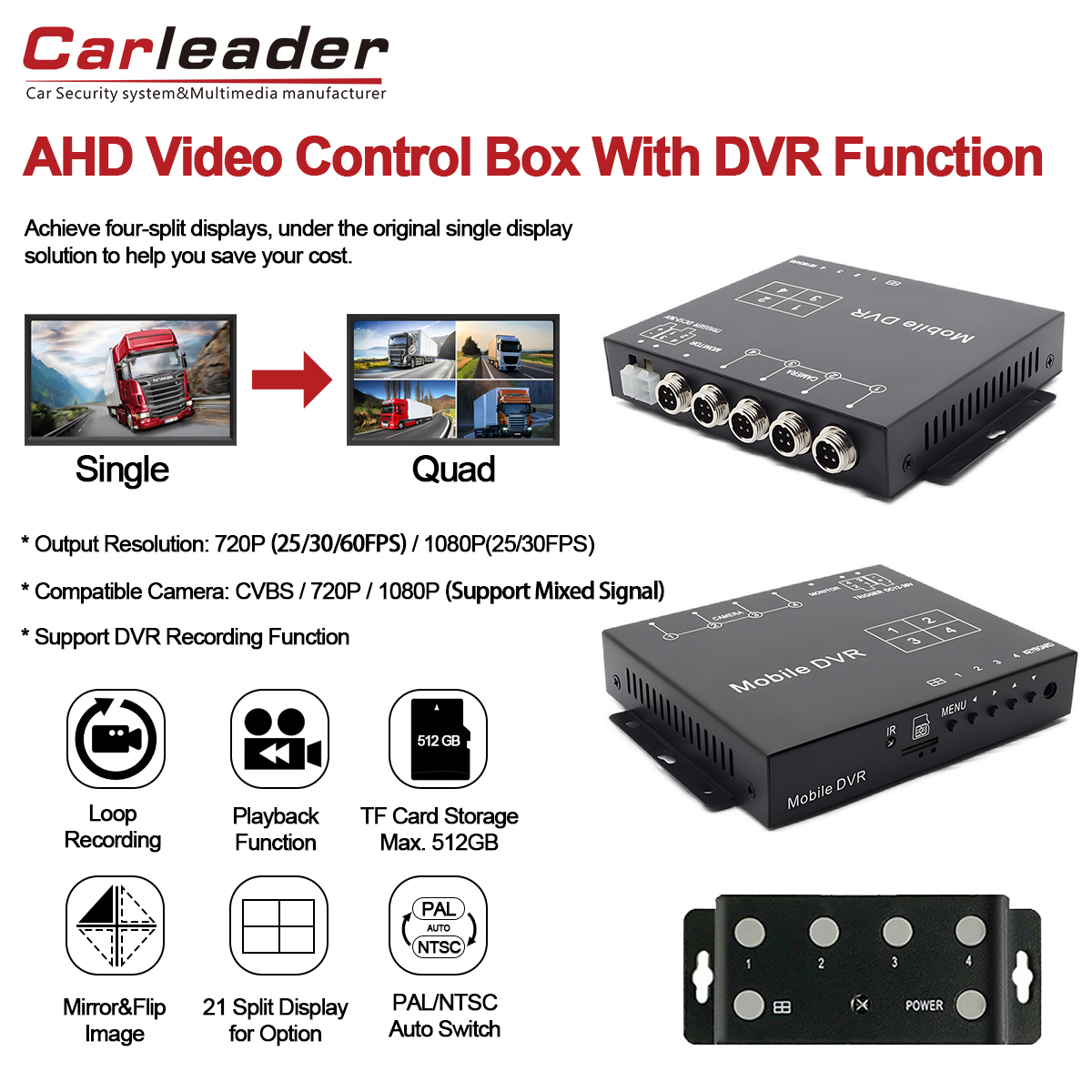

Carleader 4CH AHD 1080P Mini Mobile DVR Support TF Card Storage, a high-performance 4-channel car video splitter box integrated with advanced DVR recording function. Designed for commercial vehicles, fleet management, and enhanced security applications, it provides a comprehensive solution for monitoring, recording, and displaying footage from up to four cameras simultaneously on single display monitor.

Key Features & Benefits:

Multi-Channel HD Input: This small device can connect to four cameras at the same time. Whether the camera is 1080P HD, 720P, or CVBS, it can connect, and it is no problem to mix new and old cameras. It is very smart and will automatically arrange the images of several cameras and display them together on the same screen for you to see.

High-Definition Output: Offers superior AHD 1080P output (via a robust 4-pin aviation connector). AHD 1080P output is backward compatible with 720P/1080P at 25/30fps.

Advanced DVR Recording: Built-in DVR functionality allows loop recording function.         Supports micro SD (TF) card storage with a massive maximum capacity of 512GB.

Separated Channel Setting:

Per-Channel Image Adjustment: Independently fine-tune brightness, contrast, saturation, hue, and sharpness for each camera feed.

Normal/Mirror Mode: Set each camera's image orientation (normal or mirrored) separately.

Triggered Full-Screen Display: Each camera channel with corresponding trigger wire to instantly display in full screen on the monitor. Returns to the multi-view layout automatically 2 seconds after the trigger is released.

Integrated Power Hub: Supplies stable 12V power output to connected cameras and the monitor, simplifying installation and wiring.

Robust & Reliable Design:

Wide Operating Voltage: Functions reliably within a broad 9V-32V range, suitable for various vehicle electrical systems.

Power Protection: Incorporates high/low voltage and overload protection for enhanced durability.

Audio Support: Includes audio output capability for systems requiring sound monitoring/recording.

Global Compatibility: Supports both PAL and NTSC System camera.

Compact Form Factor: 155 x 87 x 32 mm compact size, ensuring easy installation in space-constrained vehicle environments.

Carleader 4CH AHD 1080P Mini Mobile DVR Support TF Card Storage Ideal For: Truck/bus fleet safety systems, taxi security, construction vehicle monitoring, RV surveillance, and any application requiring multi-camera vehicle monitoring with reliable recording.

Carleader 4CH AHD 1080P Mini Mobile DVR Support TF Card Storage combines powerful video processing, flexible display options, essential recording capabilities into a single compact unit, providing a complete and intelligent solution for your in-vehicle surveillance needs.
