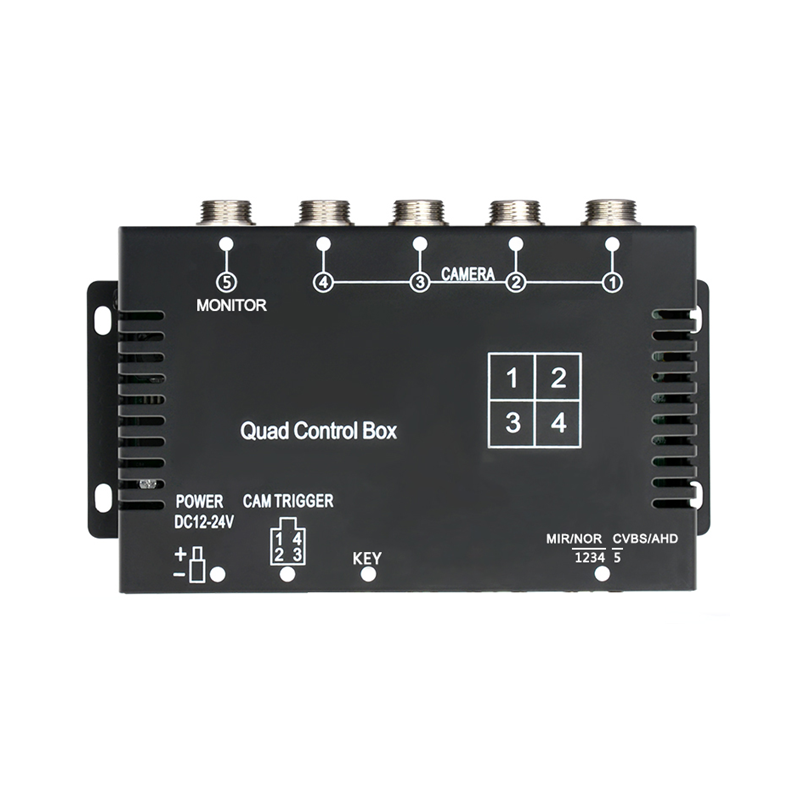

AHD 4 Channel Quad Split Control Box

Let's talk about what you need to know about the AHD 4 Channel Quad Split Control Box for heavy duty vehicles. AHD quad split control box is an important device for a vehicle CCTV monitoring system. Bus truck video split control box supports turning a single monitor into a quad view monitor, and can connect with 4 AHD car cameras. The following is a detailed explanation of the AHD rearview camera video control box functions, features, and typical use cases.

What is an AHD 4 Channel Quad Split Control Box?

• The core of this AHD quad video split box is a power supply and a video multiplexer, combined into one device for vehicles. Such as buses, trucks, trailers and other heavy duty vehicles.
• 4-channel designed to support up to four independent AHD cameras. And work with a single monitor.
• Quad view is AHD 4 channel control box's primary function. vehicle AHD split control box receives video signals from all four connected car cameras and displays all four images simultaneously on a single screen monitor.
• Control box refers to box other functions, AHD split control box provides power to the cameras and controls either a single display or split-screen displays.
• AHD (Analog High Definition) specifies the video formats compatible with the display and control box. AHD video control box is suitable for AHD cameras (e.g., AHD 720p, 1080p) or CVBS cameras. Only four AHD cameras or four CVBS cameras are supported simultaneously.

AHD 4-Channel Quad Split Control Box is a convenient device for a camera CCTV system. Can connect with 4 AHD cameras and display on a single monitor. We also have an AHD split control box version with a DVR video recording function. If you need more details about Carleader AHD quad split screen control box, please feel free to contact us!
