Carleader Infrared Dual Lens Rearview Camera For Truck Bus RV etc

2025-10-23

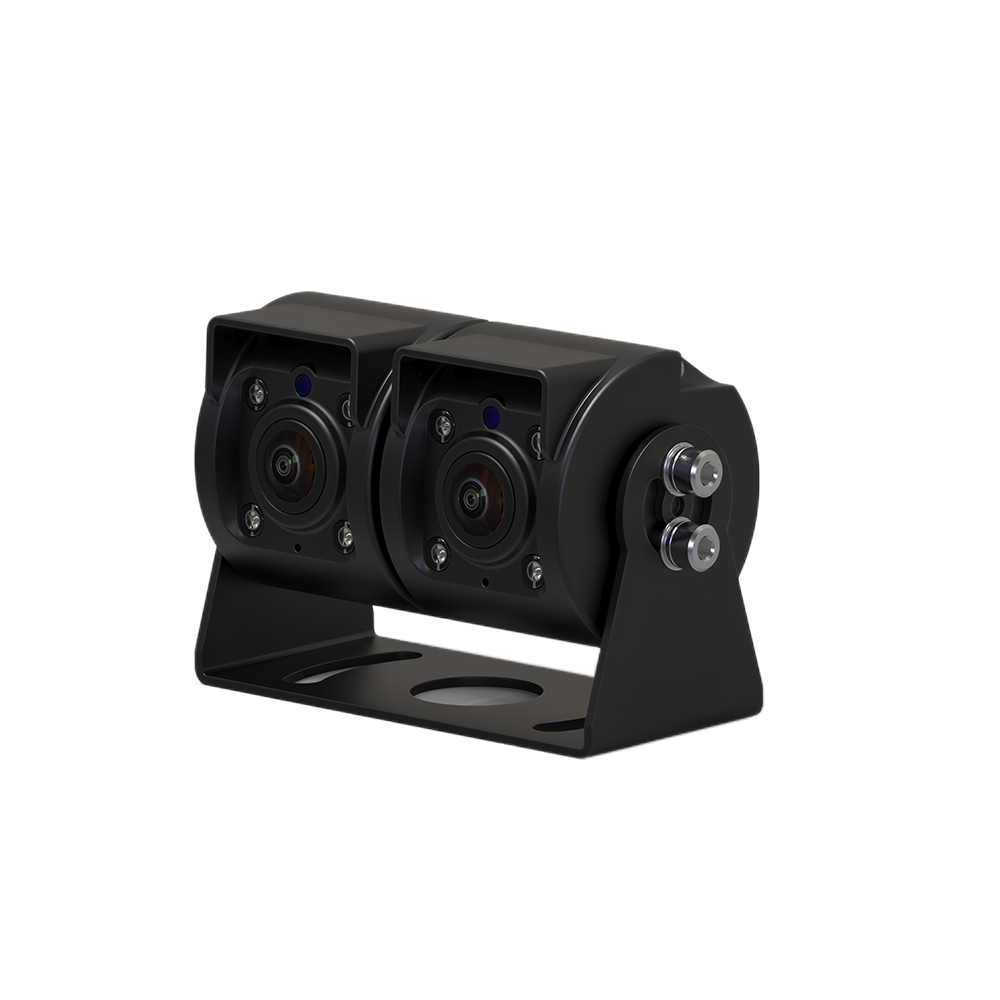

Carleader Infrared Dual Lens Rearview Camera For Truck is a high-performance infrared dual lens rear view AHD camera designed to deliver superior visibility and reliability for short and long distance vision in a wide range of applications. Built with advanced imaging technology and robust construction, this camera ensures clear and stable video output both day and night.

Key Features:

Dual Lens System: Equipped with two independent lenses offering wide viewing angles of 90° and 135° (default), perfect for user with near and long distance view or the rear of vehicle, with adjustable lens angles for flexible installation.


High-Quality Imaging: Features a 1/2.1 image sensor and supports multiple video resolution option including CVBS / AHD 720P / AHD 1080P for crisp and detailed footage.


Compatible Wiring: Dual Lens camera with 60cm length cable, features 4-PIN aviation connector, high compatibility.


Infrared Night Vision: Carleader Infrared Dual Lens Rearview Camera For Truck equipped with 4 IR LEDs per lens and a low lux rating of 0.1 LUX, providing excellent infrared night vision in low-light environment conditions.


Durable Design: Constructed with an aluminum alloy housing and rated IP69K for dust and water resistance, ensuring high performance in harsh environments.


Wide Temperature Range: Operates reliably in temperatures from -20°C to +75°C and can be stored in conditions ranging from -30°C to +85°C.


Flexible Power Options: Standard DC12V power supply with optional 24V support.


Optional Customization: Audio function for one of the lens; NTSC/PAL


Mirror/Non-Mirror Image: Optional mirror or non-mirrored image output to suit different installation needs.


Ideal for commercial vehicles, industrial equipment, and security systems, Carleader Infrared Dual Lens Rearview Camera For Truck combines versatility, durability, and advanced features to meet the demands of modern surveillance and safety applications.
