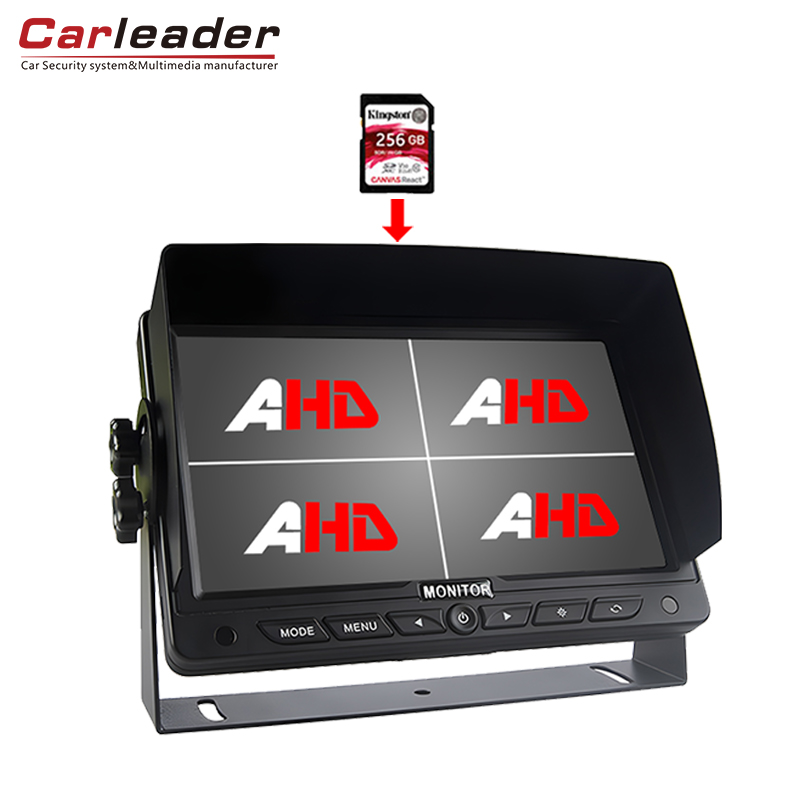

Carleader 7 Inch Truck Onboard HD Quad Split Monitor With DVR Recording Function

Carleader 7 Inch Truck Onboard HD Quad Split Monitor is a versatile and high-performance 7-inch monitor designed for professional video monitoring and recording applications. Featuring a high-definition digital panel with a 16:9 aspect ratio, this device delivers clear and vibrant visuals, making it ideal for a wide range of surveillance and display uses.

Key Features:

High-Resolution Display:

Boasts a 7" high-definition digital panel with a resolution of 1024xRGBx600, ensuring sharp and detailed image quality.

Multi-Channel Video Input:

Supports 4 AHD video inputs (AHD1–AHD4), compatible with D1/720P/1080P HD formats at 25/30fps (PAL/NTSC). AHD2 channel comes with priority function.

Flexible Recording Options:

Equipped with an SD card slot supporting up to 256GB storage. Features loop recording for continuous, uninterrupted operation.

Advanced Audio Functionality:

AHD1 with audio funtion as default, and other three channels do not have audio function. Also can do all four channels with audio function, in quad view display mode, only one channels with audio, but can be set to different channel in menu, in single display mode, every channel has audion function.

Smart Display Modes:

Supports multiple screen modes and includes an auto-dimming function for optimal viewing in various lighting conditions.

Wide Viewing Angles & High Brightness:

Offers viewing angles of L/R: 70°, Up: 50°, Down: 70°, with a brightness of 450 cd/m² and a contrast ratio of 500:1.

User-Friendly Interface:

On-screen display (OSD) supports 8 languages and includes remote control capability.

Robust Build & Design:

Includes a detachable sunshade and a durable metal U-type bracket (stand bracket optional). Compact dimensions: 19.4 × 11.5 × 2.65 cm (without shade), 19.4 × 11.5 × 6.65 cm (with shade).

Wide Power Compatibility:

Carleader 7 Inch Truck Onboard HD Quad Split Monitor operates on DC 9–32V, suitable for various installation environments.

Ideal for vehicle surveillance, security systems, and industrial monitoring, Carleader 7 Inch Truck Onboard HD Quad Split Monitor combines reliability, functionality, and superior image quality in a compact and durable package.
