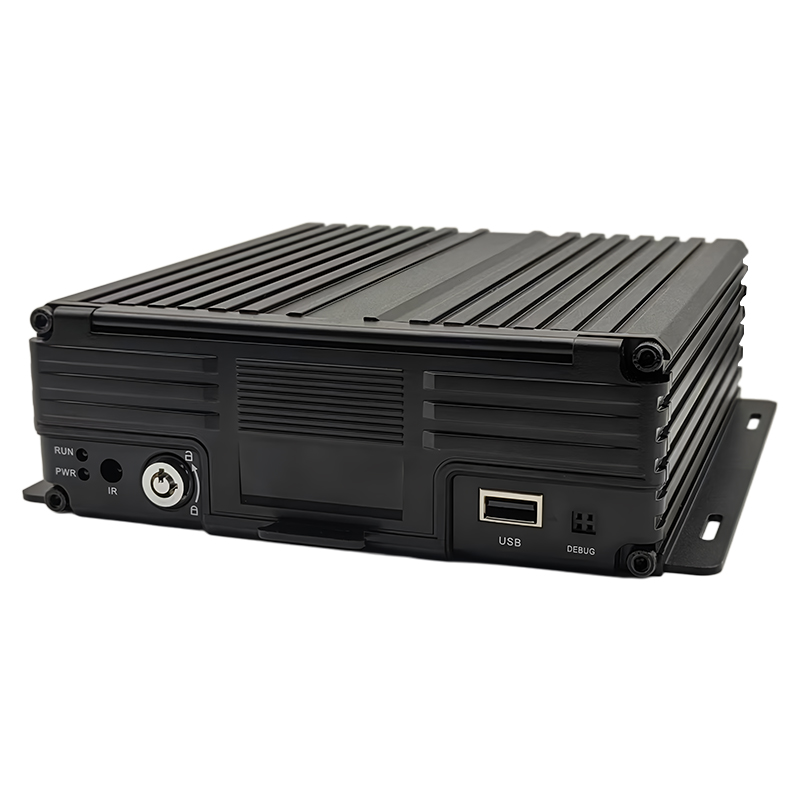

Elevate Your Fleet Security Management with Carleader 8CH AI HDD Mobile DVR Support ADAS+DMS+BSD

Introducing Carleader 8CH AI HDD Mobile DVR Support ADAS+DMS+BSD, an 8-channel High-End Hard Drive Digital Video Recorder engineered for professional vehicular surveillance and intelligent fleet management. Combining robust hardware design with advanced AI algorithms including ADAS, DSM, BSD. It delivers reliable, high-quality video recording, comprehensive driver assistance, and proactive safety monitoring—all in a single, integrated system.

Features

* Single chip design

* Support O&M debugging

* H.265 encoding, high compression ratio

* Support 8CH 1080P/720P AHD (4CH Support AI Algorithm)

* 1-CH CVBS + 1-CH VGA output

* AHD/TVI/CVI/IPC/ Analog video inputs

* Built-in G-sensor, monitoring of vehicle driving behavior

* Support reversing image ranging assistance

* Support image horizontal and vertical mirror adjustment

* Unique GPS drift suppression algorithm

* Input pulse automatic calibration algorithm

* Support debugging and maintenance of Yunweibao

Power supply:

* Professional vehicle power supply 9-36V DC wide voltage

* Low voltage, short circuit, reverse connection and other protection

* Support intelligent power management identification, low power automatic shutdown, flameout low power consumption

Data storage:

* Built-in super capacitor prevents data loss and disk damage

* A special file management adopted to encrypt data to effectively protect data security

* Support for 2.5-inch hard drives, up to 2TB

* Support hard drives & SD card storage

Wireless module:

* Built-in GPS/BD/GLONASS module, high sensitivity, fast positioning

* Built-in 4G module, support LTE/HSPA/WCDMA

* WIFI module (optional), frequency 2.4GHz

Active security early warning system:

* Built-in ADAS Advanced Driver assistance system (collision, vehicle proximity, lane departure, etc.)

* Built-in DSM driver status analysis system (fatigue, distraction, smoking, talking on the phone, driver anomaly, occlusion, driver contrast, etc.)

* Built-in BSD (optional) blind area monitoring system (Level 3 alarm)

* Support remote calibration function of operation and maintenance platform

Intense driving assistance

* Support speedup, slowdown, sharp turn alarm and upload platform

* Support rollover, collision alarm and upload platform

Comprehensive Interface Suite

Carleader 8CH AI HDD Mobile DVR Support ADAS+DMS+BSD is designed for easy integration with a complete set of labeled external ports:

* AV Input/Output: Dedicated M12 connectors for 8CH video/audio input and combined AV ports for CVBS/VGA output.

* Control & Data: Separate I/O interface for alarms, CAN bus, RS232/485, and other vehicle data signals.

* Expansion: Includes IPC ports (2x M12-6Pin), USB host port, and a speaker/microphone interface for audio alerts and communication.

* Antenna Connections: External sockets for GPS, 4G, and optional WIFI antennas.

Ideal For:

Carleader 8CH AI HDD Mobile DVR Support ADAS+DMS+BSD is the perfect solution for commercial fleets, public transportation, logistics, and special vehicles requiring:

* Uncompromising video evidence quality.

* Real-time driver behavior and safety monitoring.

* Vehicle tracking and fleet management.

* Proactive maintenance and incident prevention.
