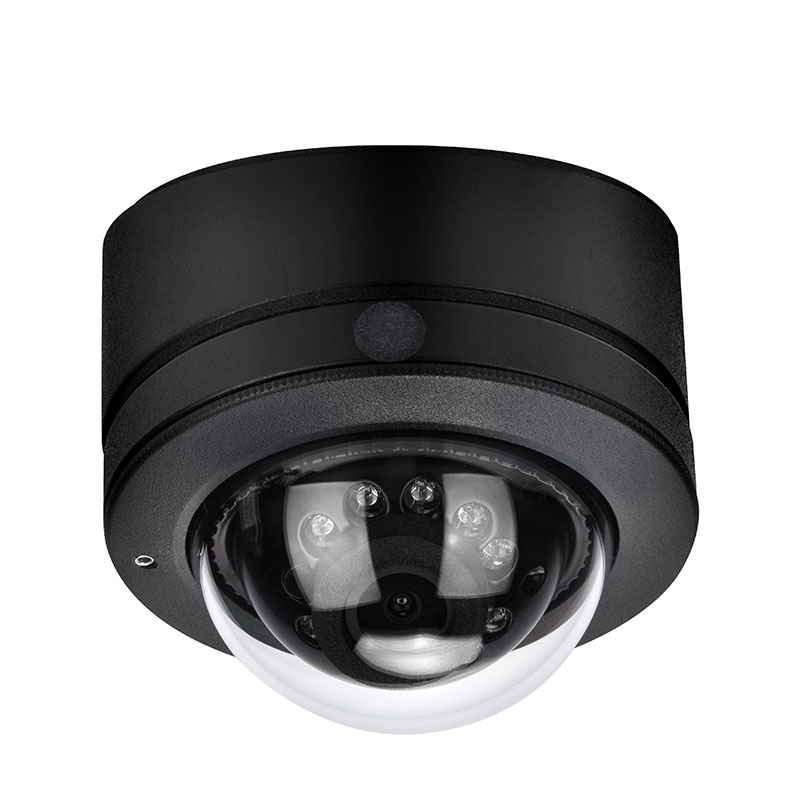

Carleader AHD Heavy Duty In-Vehicle Dome Camera--Provide Exceptional In-Vehicle Monitoring Experience

Carleader AHD Heavy Duty In-Vehicle Dome Camera is engineered to deliver reliable, high-definition video surveillance for in-vehicle environment monitoring. Built with durability and performance in mind, this camera is an ideal choice for industrial, commercial, and heavy duty in-vehicle monitoring applications where resilience and clarity are paramount.

Key Features:

Wide Resolution Option: Supporting multiple video formats—CVBS, AHD 720P, or AHD 1080P—Ensures sharp and adaptable video output tailored to your system requirements.

Exceptional Low-Light Performance: With 10 IR LEDs, support infrared night vision, Carleader AHD Heavy Duty In-Vehicle Dome Camera provides clear imaging in total darkness (0.1 Lux), enabling 24/7 monitoring capability.

Wide-Angle Coverage: A fixed 2.8mm lens offers a broad 120° viewing angle, ideal for covering expansive areas with minimal blind spots.

Flexible Installation: Comes standard with a 15° bracket (25° bracket optional), allowing for versatile mounting and optimal positioning.

Dual System Support: Compatible with both PAL and NTSC video systems, offering global adaptability.

Optional Audio: Available with a built-in microphone for integrated audio monitoring where required.

Technical Specifications:

Model: CL-911

Image Sensor: 1/3”

Video Input: CVBS / AHD 720P / AHD 1080P (selectable)

Lens: 2.8mm (120° viewing angle)

Illumination: 0 Lux with IR LEDs (10 LEDs)

Power Supply: DC 12V (standard), 24V optional

Video Output: 1.0Vp-p, 75Ω, AHD

S/N Ratio: > 44dB

Weatherproof Rating: IP69

Operating Temperature: -20°C to +75°C

Storage Temperature: -30°C to +85°C

Additional Options: Mirror/non-mirror image, built-in microphone, 25° bracket

Carleader AHD Heavy Duty In-Vehicle Dome Camera combines rugged construction with advanced AHD technology to provide a dependable surveillance solution that doesn’t compromise on image quality. Whether for day-to-day monitoring or critical security operations, this dome camera is built to perform and endure.
