Carleader 10.1 Inch AHD Quad Split Display SD DVR Vehicle Monitor

Upgrade your heavy-duty vehicle safety management with Carleader's premium 10.1 Inch AHD Quad Split Display SD DVR Vehicle Monitor, an all-in-one display + 4CH loop recording monitor designed for trucks, trailers, buses, construction machinery, RVs and all commercial vehicles. Integrating real-time quad-screen monitoring, support CVBS / AHD 720P / AHD 1080P video signal inputs and built-in SD card slot for loop recording, it is a perfect option for someone who only need recording function, has no need for DVR, delivering full-cycle driving footage backup to avoid traffic disputes, blind-spot collisions and cargo damage claims. Features with industrial-grade construction, wide-voltage compatibility and flexible customizable options for global aftermarket and OEM orders.

Features:

1. Premium 10.1" IPS HD Display Panel

* Adopts high-performance 16:9 IPS LCD screen with native 1024×600 (RGB) resolution, 550 cd/m² high brightness and 500:1 contrast ratio, delivering sharp, vivid images under strong sunlight or dim night conditions. Backlit click physical buttons enable easy in-car operation even with bumpy road vibration; optional auto screen dimming function optimizes eye comfort during night driving to avoid glare distraction.

2. 4-Channel Mixed HD Video Input with Priority Trigger Function

* Supports 4CH hybrid video access: AHD 1080P/720P + traditional CVBS analog signals, freely mix signal cameras for front/rear/left/right vehicle surround monitoring.

* Equipped with 4 independent trigger wires, Channel 2 owns top trigger priority: activate corresponding single full-screen view automatically when reversing or turning signals trigger, quickly switching back to quad split mode after trigger ends.

* PAL/NTSC dual video system auto-adaptation, compatible with global vehicle camera standards.

3. Built-in 4CH Full Channels Loop SD DVR Recording

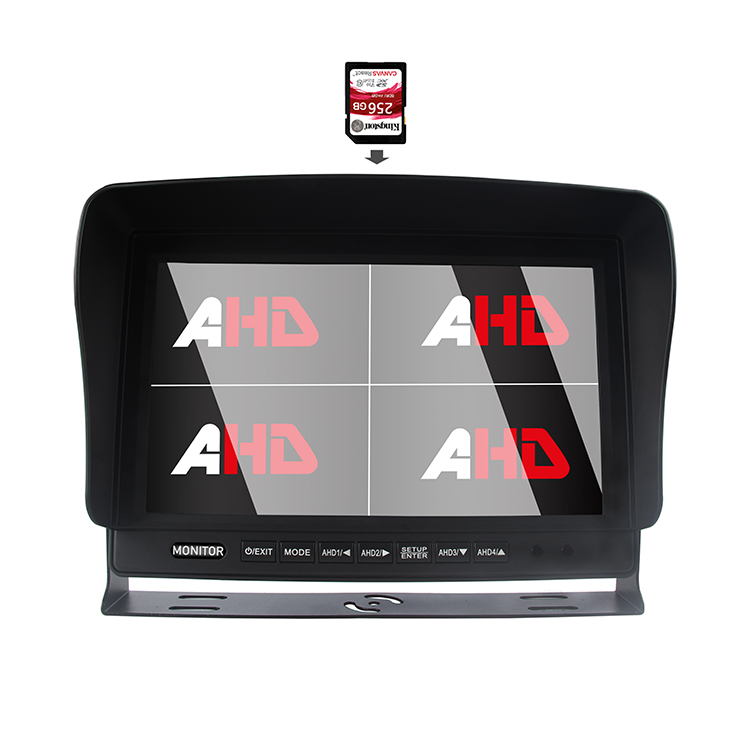

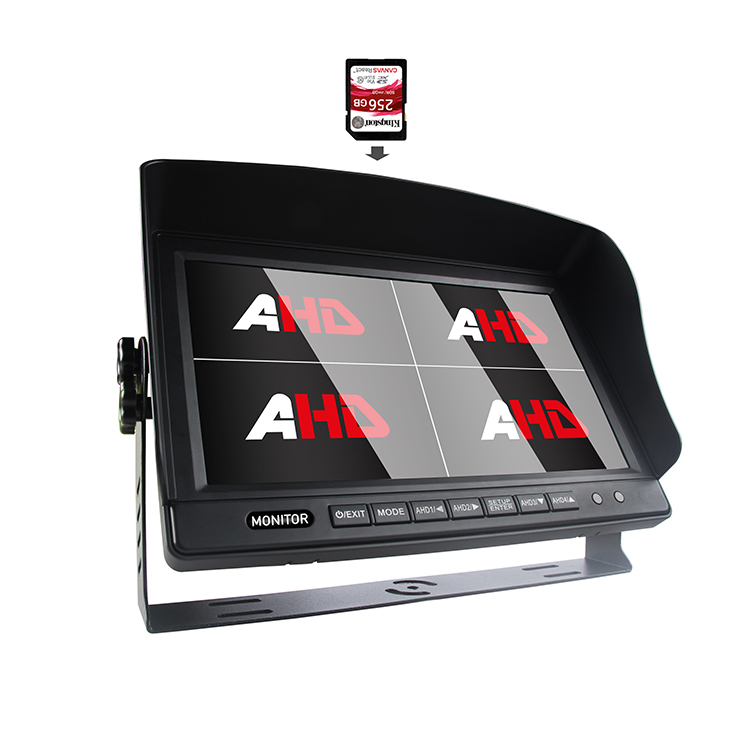

* Comes with dedicated SD card slot supporting maximum 256GB SD card storage (SD card excluded); all four channels execute seamless loop recording automatically once powered on, overwriting earliest footage when storage is full to ensure uninterrupted video archive. Built-in OSD playback menu supports on-device footage review, fast forward and file management without removing memory card.

* Menu include playback function to check the recording footage directly on the monitor.

4. Flexible Dual Audio Configuration (Selectable)

Two factory audio modes for custom selection:

* Default Mode: Only AHD1 channel with audio capture;

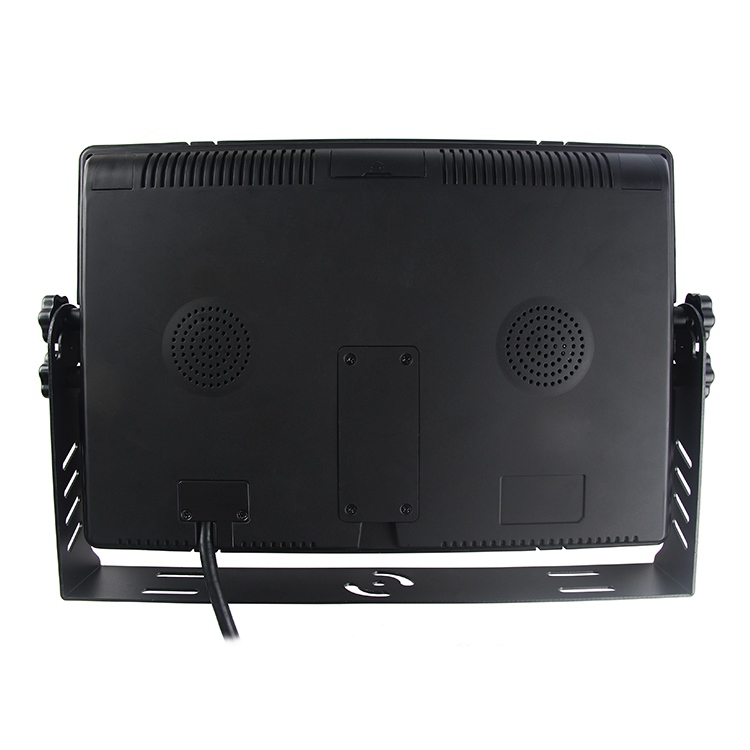

* Optional Full Audio Mode: All 4 channels available for audio recording. Under quad split display, it is able to select which channel with audio via menu; under single full-screen view, each channel outputs with respective audio when switch to the corresponding channel for clear sound evidence collection. A built-in onboard speaker directly plays real-time monitoring audio and playback sound.

5. Industrial-Grade Durability & Wide Compatibility

* Wide Voltage Range: DC 9~32V perfectly matches 12V/24V truck/bus onboard power supply with anti-surge circuit design to withstand unstable vehicle voltage fluctuation.

* Connector: Standard 4PIN aviation connector with screwable lock (anti-loose, vibration-proof for harsh vehicle environment), customized RCA connector available upon client request.

* Dimension: 25.5×15.5×3.0cm (without sunshade); 27.5×18.5×7.6cm (with sunshade).

Application Scenarios

Widely installed on heavy-duty trucks, semi-trailers, school buses, coach buses, engineering excavators, forklifts, agricultural vehicles and recreational RVs, ideal for fleet companies, logistics enterprises and individual truck owners to realize full-process driving monitoring, accident evidence preservation and daily vehicle safety inspection.

After-sales & Custom Service

Carleader provides 2-year official global warranty for all Carleader products. We accept customized service including connector modification, logo printing, monitor boot screen customization, and any other OEM request. Contact our sales team anytime for pricing, sample testing and bulk order quotation.

Looking for reliable all-in-one vehicle surveillance solution? Our factory directly supplies 10.1 Inch AHD Quad Split Display SD DVR Vehicle Monitor with competitive factory pricing. Feel free to contact us to send inquiry now to get customized solutions and best bulk purchase deal!
