Carleader 7 Inch Touch Screen Quad Split Display Vehicle AHD Monitor

Carleader 7 Inch Touch Screen Quad Split Display Vehicle AHD Monitor is a high-performance 7-inch vehicle-mounted quad AHD monitor, engineered for professional automotive surveillance and rearview applications. Combining a premium display panel, multi-channel video processing, and user-friendly operation, this monitor delivers stable, high-definition visual performance for a wide range of commercial and passenger vehicles, making it an ideal solution for in-vehicle safety monitoring.

Key Features & Functionalities

1. Premium Display Performance

* Equipped with a 7-inch digital IPS panel with a 16:9 widescreen aspect ratio, delivering immersive and accurate image reproduction

* High-definition resolution of 1024 x RGB x 600, paired with 450 cd/m² high brightness and 500:1 high contrast ratio, ensuring clear visibility even in bright daylight or low-light in-vehicle environments

* Integrated 7-inch capacitive touch screen for smooth, responsive, and intuitive operation control

2. Flexible Multi-Channel Video Input

* 4 independent AHD video input channels (AHD1/AHD2/AHD3/AHD4), supporting simultaneous monitoring of multiple vehicle blind spots

* Each channel is fitted with an independent trigger wire, with AHD2 channel set to priority trigger for critical rearview safety

* Wide compatibility with video formats: supports D1/720P/1080P HD 25/30fps PAL/NTSC, and is fully compatible with both AHD and CVBS analog cameras, adapting to various in-vehicle camera setups

3. Intelligent Display & Customization

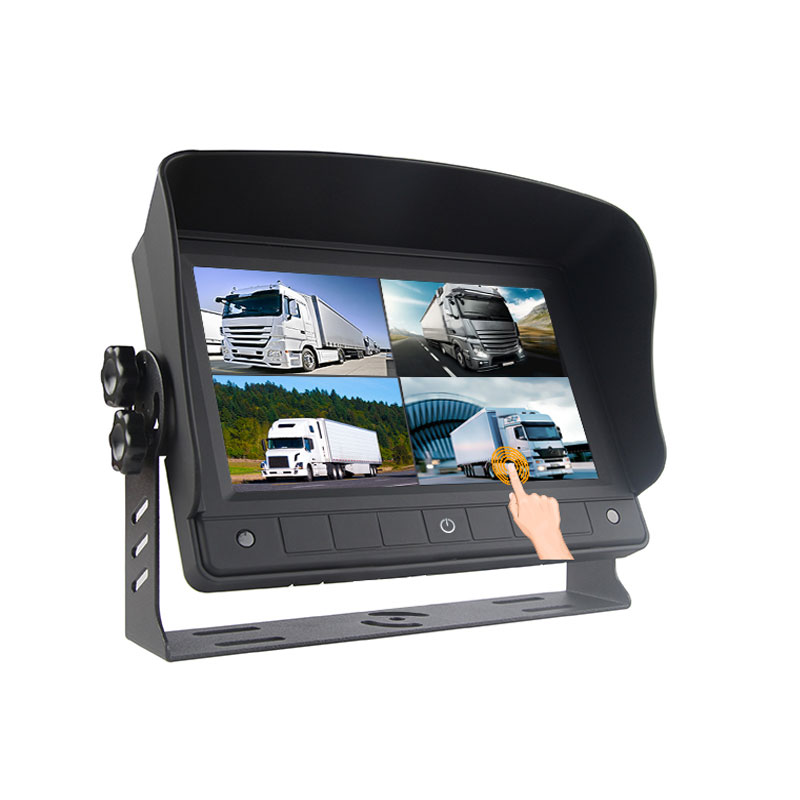

* Multiple screen display modes for flexible switching, meeting different monitoring scenario needs

* Optional auto dimming function, which automatically adjusts screen brightness according to ambient light, reducing driver visual fatigue during night driving

* Multiple language multi-function OSD setting interface, paired with remote control support, enabling easy and quick parameter adjustment for users of different regions

* All physical buttons are designed with backlights, ensuring convenient operation in dark in-vehicle environments

4. Rich Audio & Visual Auxiliary Functions

* AHD1 channel comes with default audio input function, with optional 4-channel full audio input support

* Each channel's audio can be independently selected and switched via system settings, adapting to different audio monitoring needs

* Independent blue screen setting for each channel, with the blue screen function able to be turned on or off via settings, providing stable visual feedback when no video signal is input

5. Reliable Power & Adaptable Design

* Wide voltage power supply range of DC9-32V, compatible with most 12V/24V vehicle electrical systems, ensuring stable operation in complex vehicle power environments

* Removable sun visor included, effectively reducing screen glare from sunlight, improving display visibility in outdoor environments

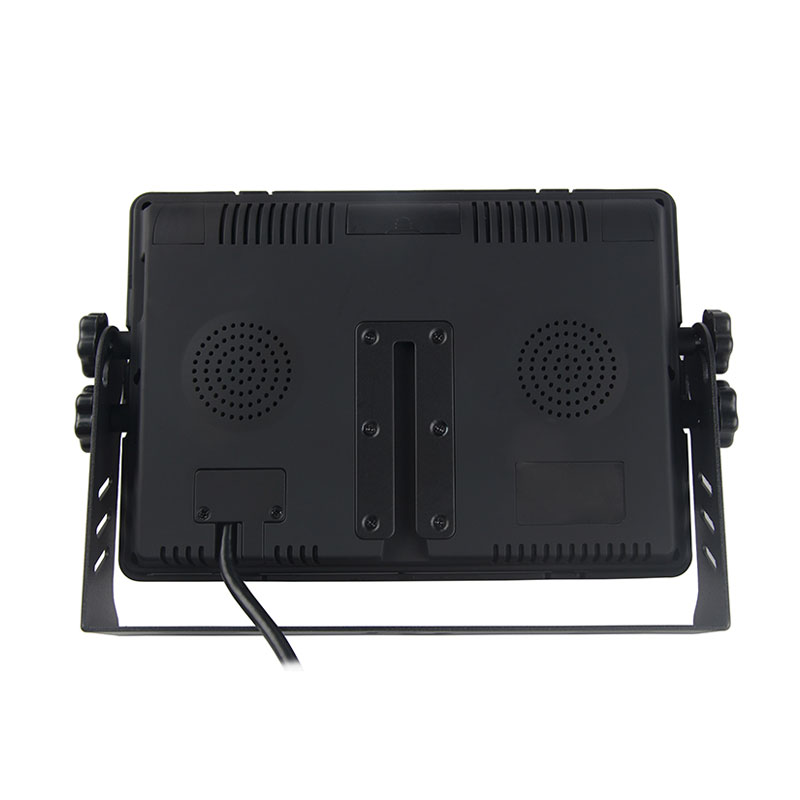

* Optional mounting bracket for flexible installation in different vehicle models and positions

* Compact dimensions: 18.5 x 12.8 x 3.0cm (without sun visor); 20.4 x 14.1 x 7.8cm (with sun visor), suitable for in-vehicle space-saving installation

Carleader 7 Inch Touch Screen Quad Split Display Vehicle AHD Monitor is widely applicable for various vehicle types, including passenger cars, SUVs, vans, trucks, buses, and engineering vehicles. It is ideal for in-vehicle rear view monitoring, blind spot detection, driving safety surveillance, and in-vehicle video display, providing reliable and high-performance visual support for driving safety and in-vehicle monitoring needs.
