Carleader Introduces 90 degree & 135 degree Adjustable Starlight Dual Lens Rear View Camera for Trucks and Commercial Vehicles

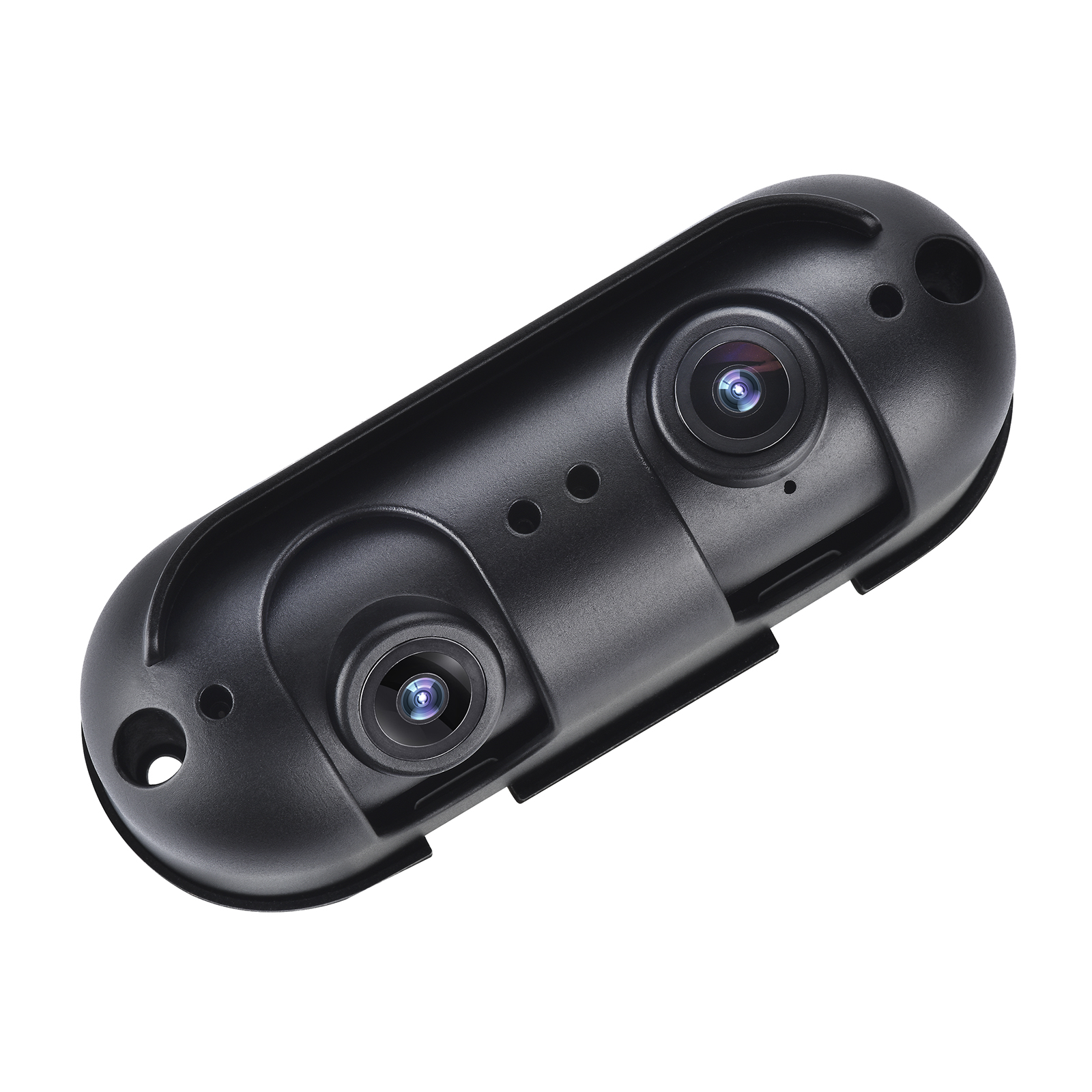

Carleader Develops a Dual Lens Camera for Wider Vehicle Coverage. Rear visibility can become challenging when a vehicle has a long body, large rear structure or multiple blind-spot areas. A conventional single-lens rear view camera normally focuses on one viewing direction, which may limit the amount of information available around the rear corners of a commercial vehicle. To address this challenge, Carleader has developed the Starlight Dual Lens Rear View Camera. Instead of using two separate camera housings, the CL-9090D combines two camera lenses into one compact aluminum-alloy housing. The two lenses provide different viewing directions, while each lens can be adjusted independently according to the actual installation position. This makes the product particularly interesting for applications where a rear view camera and side monitoring camera would otherwise need to be installed separately.

Two Lenses Create More Flexible Rear and Side Monitoring

The defining feature of this new Dual Lens Vehicle Camera is the two-lens configuration. The default viewing angles are 90° and 135°, and each lens can be adjusted separately. This means installers can configure the two viewing directions according to the structure of the vehicle and the area that needs to be monitored. For example, on a truck, one lens can focus on the central rear area while the second lens can be adjusted toward a rear-side area.

This makes the camera suitable for:

• Truck rear monitoring
• Truck rear-side monitoring
• Commercial vehicle blind spot monitoring
• Bus rear monitoring
• Van rear and side monitoring
• Forklift rear monitoring
• Fleet vehicle surveillance
• Industrial vehicle monitoring

The result is a more flexible dual camera rear view system without necessarily requiring two separate camera housings.

Adjustable 90° and 135° Viewing Angles for Different Installations

Not every vehicle has the same rear structure or camera mounting position. A camera mounted high on a truck may require a different viewing direction from a camera mounted near the rear bumper of a van. Fixed-angle cameras can therefore make installation more restrictive. The CL-9090D addresses this with independently adjustable lenses. The default combination is 90° + 135°, while the angle of each lens can be adjusted separately to suit the actual installation requirements. This makes the product particularly suitable for vehicle camera installers who work with different truck bodies, commercial vehicles and industrial equipment. From an SEO perspective, this also gives the product relevance for searches such as: Adjustable Rear View Camera, Adjustable Viewing Angle Camera, Dual Lens Vehicle Camera, 90 Degree Rear View Camera, 135 Degree Rear View Camera, Adjustable Truck Camera and Dual Camera Rear View System.

Starlight Color Night Vision Without IR LED Illumination

Another major difference between this product and conventional infrared rear cameras is its Starlight Night Vision technology. The CL-9090D is specified at 0 LUX minimum illumination without IR LEDs, and the camera is designed to produce color images in extremely low-light environments.

This makes it suitable for vehicles operating in conditions such as:

• Night-time transportation
• Poorly illuminated warehouses
• Logistics yards
• Underground parking areas
• Construction sites
• Early-morning delivery routes
• Low-light industrial environments

Unlike a conventional IR rear view camera, the Starlight configuration does not rely on IR LED illumination for its night monitoring function. For fleet operators, this provides another option when selecting a Color Night Vision Vehicle Camera for commercial transportation and vehicle surveillance systems.

Why Starlight Technology Is Useful for Commercial Vehicle Cameras

Commercial vehicles do not operate only during daylight hours. Trucks may leave distribution centers before sunrise. Delivery vans may continue working after sunset. Buses can operate into the evening, while forklifts and industrial vehicles may work inside poorly illuminated facilities. For these applications, a rear camera needs to remain useful under changing light conditions. The Starlight Dual Lens Rear View Camera is therefore designed around low-light color imaging rather than simply adding infrared LEDs to a conventional camera. This gives the CL-9090D a clear positioning as a Starlight Rear View Camera, Color Night Vision Rear Camera, Low Light Vehicle Camera and Night Vision Commercial Vehicle Camera.

One Camera for Rear, Side and Fleet Monitoring Applications

Although the product name focuses on rear-view monitoring, the dual-lens structure allows it to be used in a wider range of vehicle monitoring configurations.

• Truck Rear & Side Monitoring

A truck can use the two lenses to monitor different areas around its rear section, helping improve visibility during reversing, lane changes and maneuvering in confined spaces.

• Commercial Van Monitoring

The compact dual-lens housing can provide additional rear and side visibility for delivery vans and cargo vehicles.

• Bus and Coach Monitoring

The camera can be integrated into bus camera systems where additional rear or rear-side visibility is required.

• Forklift and Industrial Vehicle Monitoring

Its IP69K housing and broad operating temperature range make it suitable for demanding industrial vehicle applications.

• Fleet Safety Systems

The camera can be integrated with vehicle monitors, DVRs, MDVRs and other fleet video monitoring equipment, allowing it to become part of a larger commercial vehicle camera system.

Designed for Different Vehicle Camera Systems

Commercial vehicle fleets do not always use the same video architecture. Some existing systems are based on CVBS, while newer vehicle surveillance systems may use AHD high-definition video.

The CL-9090D supports: CVBS / AHD720P / AHD1080P. This gives system integrators the flexibility to select the appropriate video configuration for their existing vehicle monitor, DVR, MDVR or fleet monitoring platform. For customers upgrading an existing camera system, a CVBS version may be appropriate. For customers developing a higher-resolution AHD vehicle camera system, AHD720P or AHD1080P configurations can be selected.

1080P Vehicle Camera for High-Definition Monitoring

The AHD1080P option gives this product an additional advantage for customers searching specifically for a 1080P Rear View Camera or 1080P Truck Camera. Combined with the dual-lens architecture, the camera can be incorporated into a high-definition commercial vehicle monitoring system where more detailed visual information is required. The camera also provides a ≥50dB S/N ratio, while the electronic shutter supports 1/65 NTSC / 1/60 PAL to 1/10,000, providing flexible video-system compatibility.

IP69K Aluminum Housing for Exterior Vehicle Installation

A rear or side camera mounted on a commercial vehicle needs to withstand considerably harsher conditions than an indoor camera. The CL-9090D uses an aluminum alloy housing and carries an IP69K waterproof rating, making it suitable for exterior vehicle applications where exposure to water, dust and high-pressure washing may occur. The operating temperature range is -20°C to +75°C, while the storage temperature range is -30°C to +85°C, supporting use in a wide range of vehicle and industrial environments. This positioning makes the camera suitable for heavy-duty vehicle cameras, waterproof truck cameras, IP69K rear view cameras and commercial vehicle surveillance cameras.

Mirror and Non-Mirrored Image Options

Different camera positions can require different image orientations. A rear-mounted camera normally needs to provide a driver-friendly rear-view image, while certain side or specialized installations may require a non-mirrored configuration. The CL-9090D supports both mirror image and non-mirrored image options, allowing the camera configuration to be matched to the installation position. This further strengthens the camera's positioning as a flexible rear view and side view vehicle camera rather than a fixed-purpose camera.

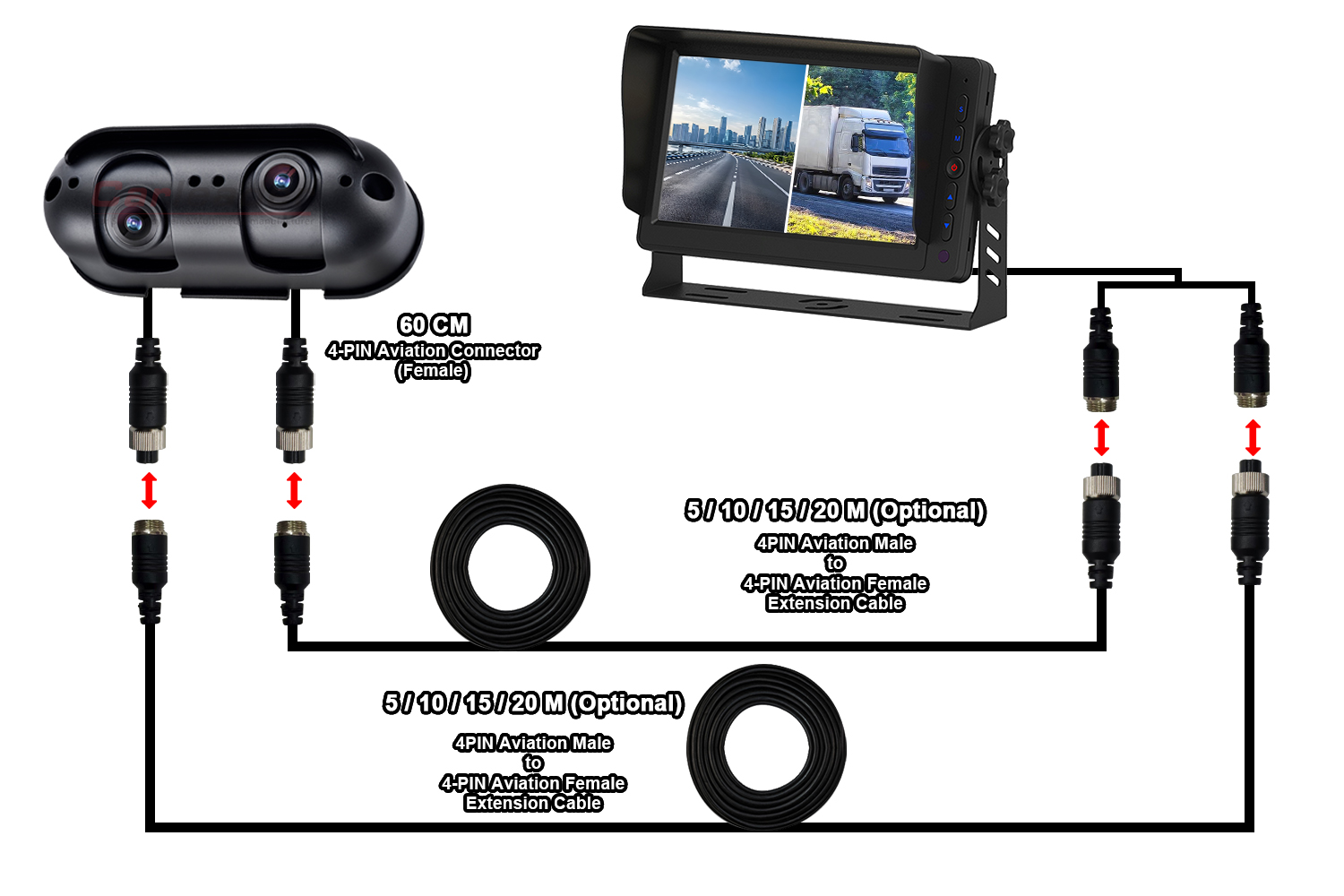

Connector Options for Different Installation Projects

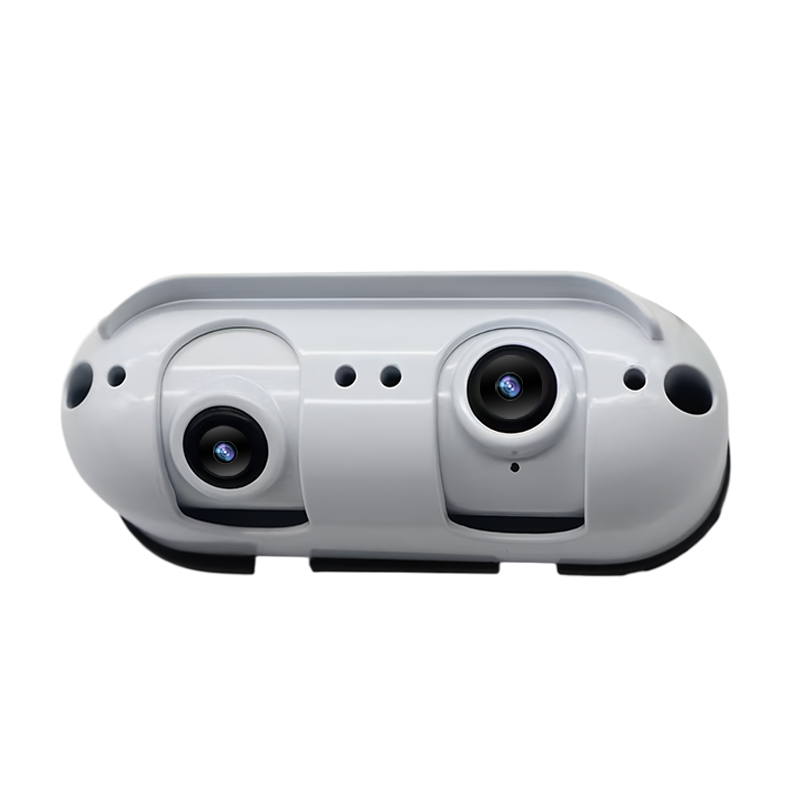

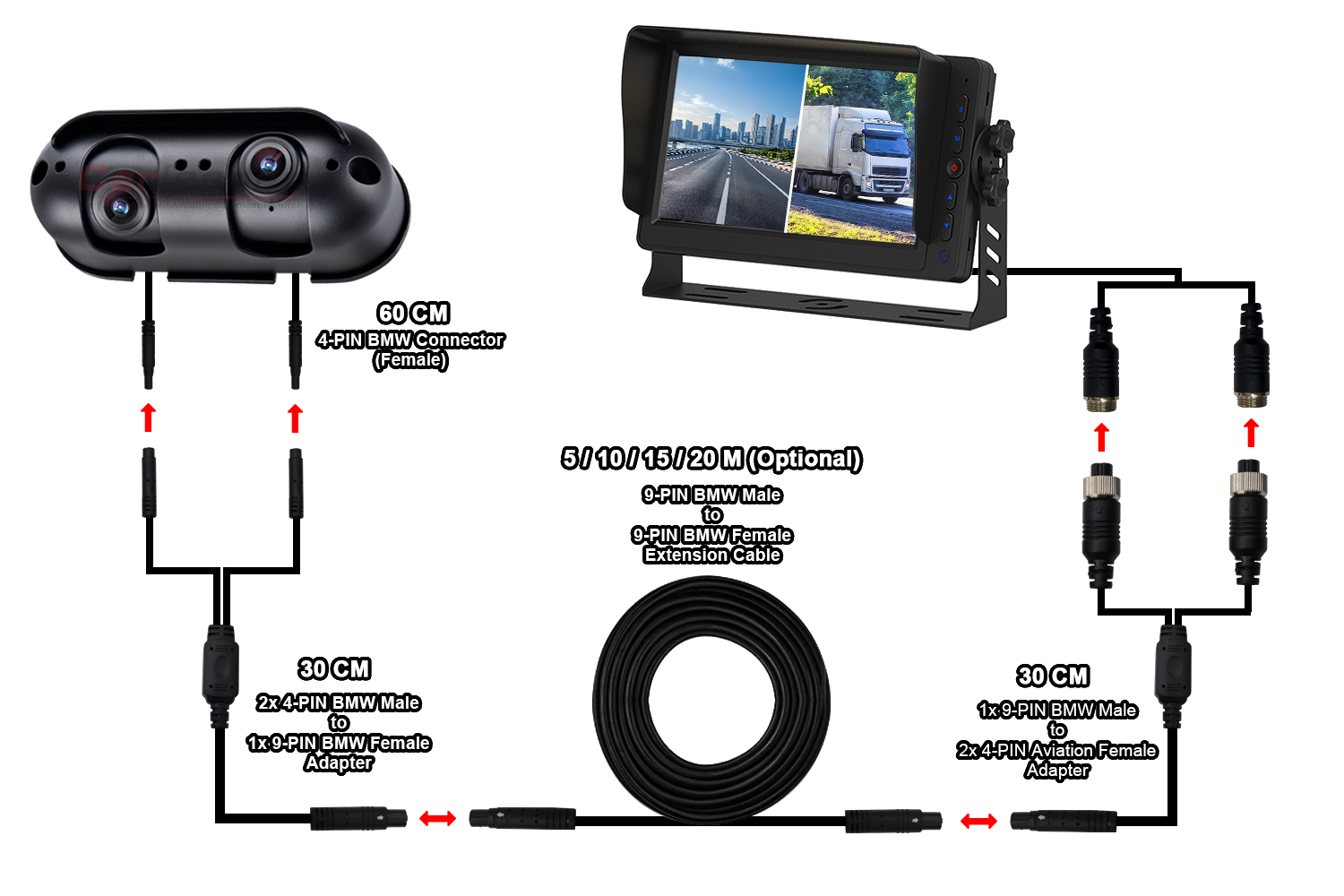

The standard product specification lists a 4Pin BMW connector, while the product feature information also supports 4PIN BMW and 4PIN aviation connector configurations. This provides additional flexibility for vehicle camera system integrators who may have different cable and connector requirements across projects. The camera is also available in black as standard, with white available as an option, according to the product page.

Carleader Expands Its Dual-Lens Vehicle Camera Portfolio

The launch of the 90° & 135° Adjustable Viewing Angle with Starlight Dual Lens Rear View Camera adds a flexible dual-camera solution to Carleader's commercial vehicle camera portfolio. By combining two independently adjustable lenses, 90°/135° viewing angles, Starlight color night vision, 0 LUX low-light performance, AHD1080P support, IP69K protection and 12V/24V compatibility, the CL-9090D is designed for trucks, buses, vans, forklifts and fleet vehicle monitoring applications. For buyers searching for a Dual Lens Rear View Camera, Starlight Rear View Camera, Adjustable Rear View Camera, 1080P Vehicle Camera, Truck Rear View Camera, Truck Rear Side Camera, IP69K Vehicle Camera or Commercial Vehicle Camera Manufacturer, this new camera provides a flexible platform for different vehicle monitoring projects.
