How a 4CH Vehicle Video Control Box Simplifies Multi-Camera Systems for Trucks

Simplifying Multi-Camera Control in Commercial Vehicles. Modern commercial vehicles often require more than one camera to improve visibility around the vehicle. A truck, for example, may use a front camera, rear view camera and side cameras at the same time. When several cameras are connected to one vehicle monitor, a reliable switching and control method is needed. The 4CH Vehicle Video Control Box for Multi-Camera Display and Camera Switching is designed for this type of application. It integrates four CVBS camera inputs into one compact vehicle video control unit, allowing installers to build a centralized multi-camera monitoring system without using separate controllers for every camera.

One Controller for Four Vehicle Cameras

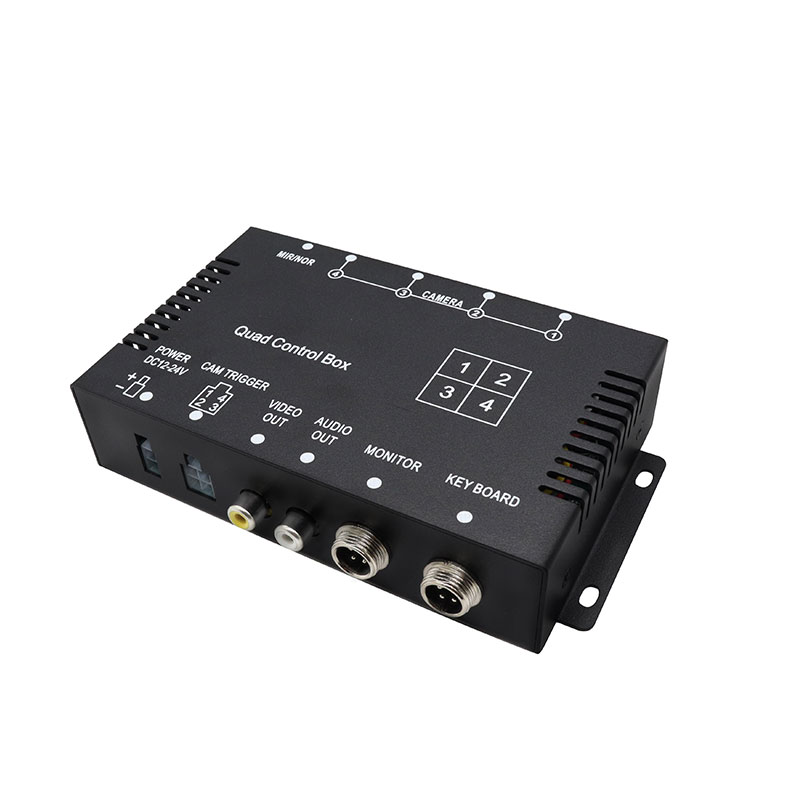

The 4CH Vehicle Video Control Box supports up to four CVBS camera inputs.

A typical vehicle camera configuration can include:

• CAM1 – Front View Camera
• CAM2 – Rear View / Backup Camera
• CAM3 – Left Side Camera
• CAM4 – Right Side Camera

This configuration can be used for trucks, delivery vehicles, logistics vehicles, buses, utility vehicles and other commercial vehicles where multiple viewing areas need to be monitored from one display. For vehicle camera system manufacturers and installers, using a centralized vehicle camera controller can also make system integration more straightforward.

Automatic Camera Switching When a Trigger Is Activated

One of the main functions of this camera switch box is automatic camera switching. Each camera can be triggered separately. When a trigger signal is activated, the corresponding camera can automatically switch to full-screen display.

For example:

• Reverse signal → Rear camera
• Left turn signal → Left-side camera
• Right turn signal → Right-side camera

This allows the vehicle monitor to automatically display the camera view associated with a specific driving condition instead of requiring the driver to manually switch between camera channels. The system also allows CAM1, CAM2, CAM3 or CAM4 to be configured as the display priority when multiple trigger signals are received.

Suitable for Existing CVBS Vehicle Camera Systems

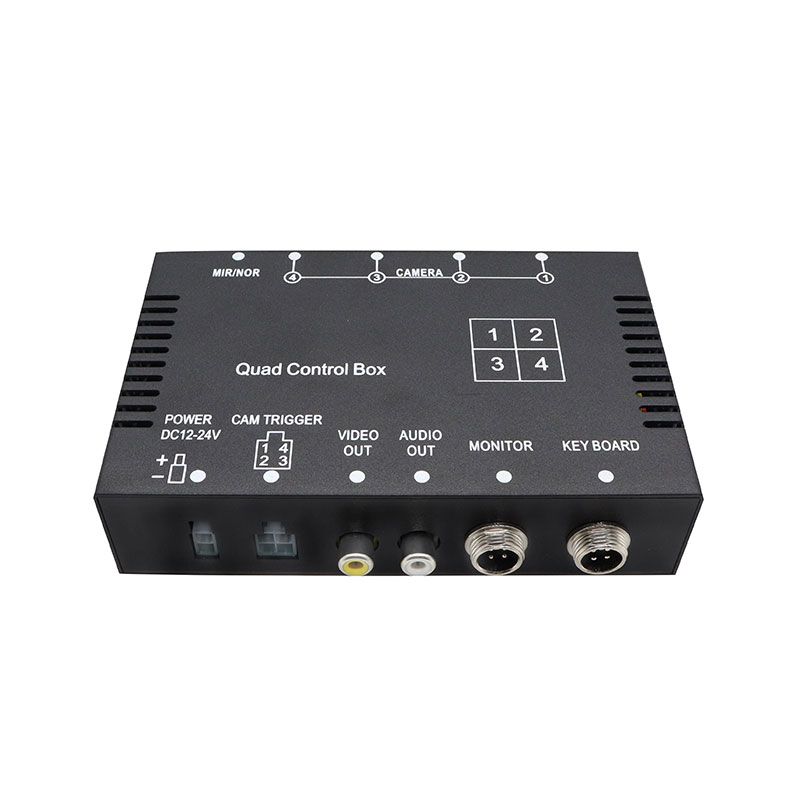

For customers working with conventional analog vehicle cameras, replacing an entire camera system is not always necessary. This CVBS video controller is designed for four CVBS camera inputs and can be integrated with compatible vehicle monitors. Video output is available through RCA or a 4P aviation connector, providing flexibility for different vehicle wiring configurations. The controller supports both PAL and NTSC video formats and provides 12V power output for cameras and LCD monitors. This makes the product suitable for system integrators looking for a compact automotive video switcher for commercial vehicle applications.

Flexible Image Settings for Different Camera Positions

Different camera installation positions may require different image orientations. The 4CH controller supports independent normal or mirror image settings for each camera channel. Therefore, installers can configure the front, rear, left-side and right-side cameras according to their actual installation positions. After a trigger signal is cancelled, the image can remain displayed for approximately two seconds before returning to the previous display state. This provides a more controlled switching experience for vehicle camera systems.

Applications of a 4CH Vehicle Camera Controller

The 4CH Vehicle Video Control Box for Multi-Camera Display and Camera Switching can be integrated into various mobile video monitoring applications, including:

• Truck camera systems
• Commercial vehicle monitoring
• Delivery and logistics vehicles
• Bus and coach camera systems
• Construction vehicles
• Dump trucks
• Concrete mixer trucks
• Excavators
• Wheel loaders
• Utility vehicles
• Special-purpose vehicles
• Multi-camera rear view systems

For fleet camera system manufacturers, vehicle electronics integrators and professional installers, the controller can serve as a centralized switching component between multiple CVBS cameras and a vehicle monitor.

Why Use a 4CH Camera Switch Box?

A multi-camera vehicle system does not always require a complicated video processing platform. For applications that mainly need multiple camera inputs, automatic camera switching and centralized display control, a dedicated 4CH camera switch box can provide a straightforward solution. The Carleader 4CH Vehicle Video Control Box for Multi-Camera Display and Camera Switching combines four-channel CVBS camera input, individual trigger control, automatic full-screen switching, configurable camera priority and independent mirror settings in one compact unit. For vehicle camera manufacturers, distributors and installers looking for a 4CH vehicle video controller, CVBS video controller, automotive video switcher or camera switch box, this type of controller can be integrated into different commercial vehicle monitoring projects. Carleader supplies vehicle camera controllers and vehicle video monitoring components for commercial vehicle applications. OEM and customized requirements can be discussed according to project specifications.
