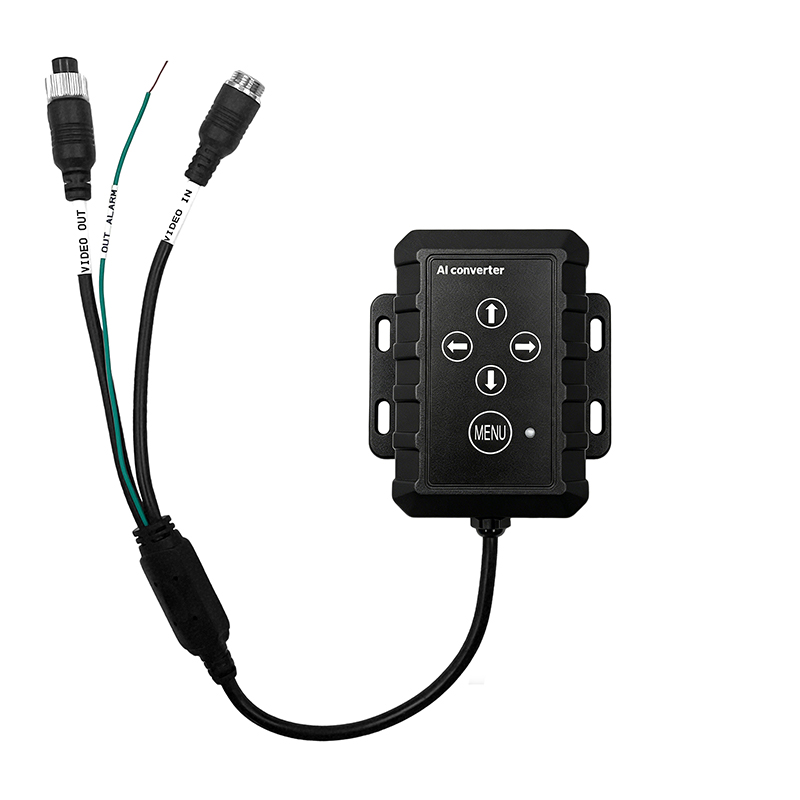

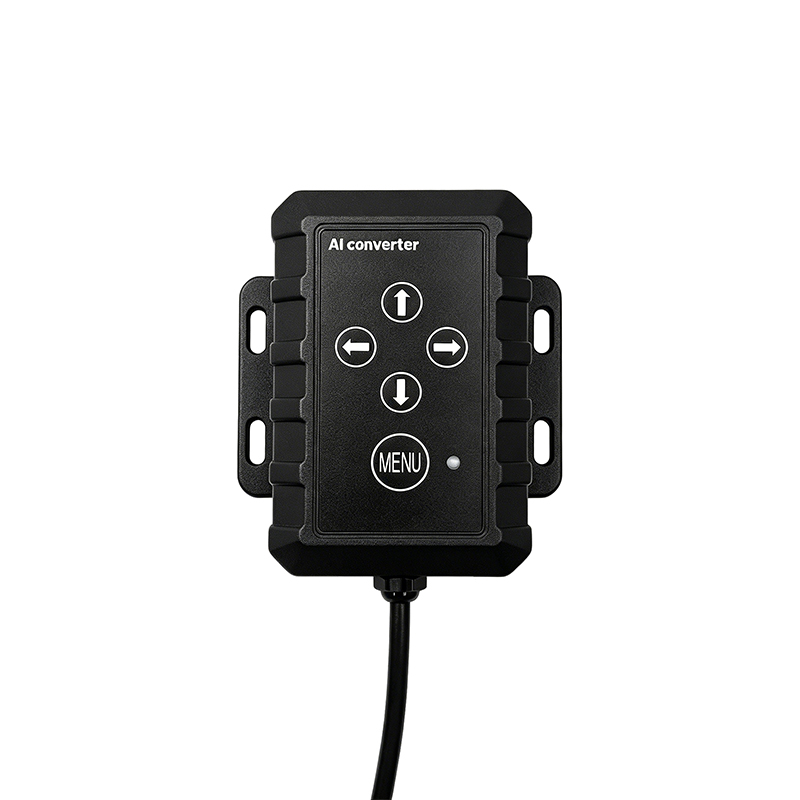

AI Detection Algorithm Converter Built-in Calibration Fit for CVBS/AHD Camera

Carleader Newly Launched AI Detection Algorithm Converter Built-in Calibration Fit for CVBS/AHD Camera, a AI converter integrates an ordinary camera video signal overlay algorithm to achieve AI functions, Support CVBS/720P/1080P camera, support PAL/NTSC system.

Model:CL-818AI

Send Inquiry

Product Description

This converter integrating 0.5T NPU, and efficiently supports intelligent algorithms such as pedestrian detection and vehicle detection. It has professional ISP image quality and is equipped with 1 Gb DDR; it supports fast startup and image output.

Parameter:

AI Detection Algorithm Converter Built-in Calibration Fit for CVBS/AHD Camera
Video Input	Support CVBS/720P/1080P camera, support NTSC / PAL system
Video Output	AHD1080P, PAL system as default. (1080P/720P/CVBS，NTSC/PAL，can be changed by setting)
Converter Menu	Detection Area Type (Front/Rear, Left, Right), Resolution and System, Mirror On/Off, Flip On/Off, Detect Object (people&vehicle, people, vehicle), AI Detection Area Calibration, Reset.

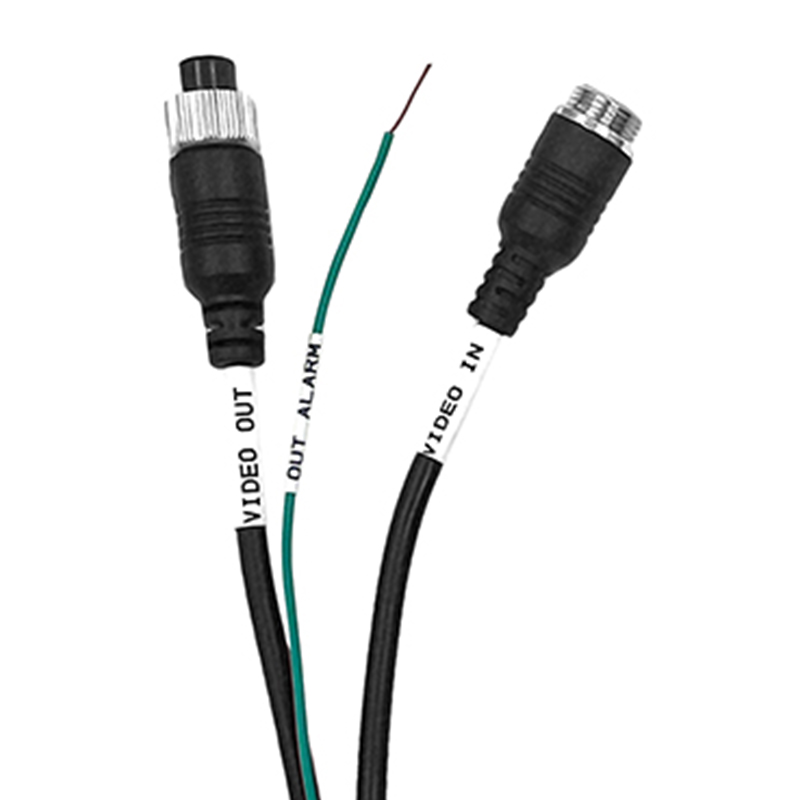

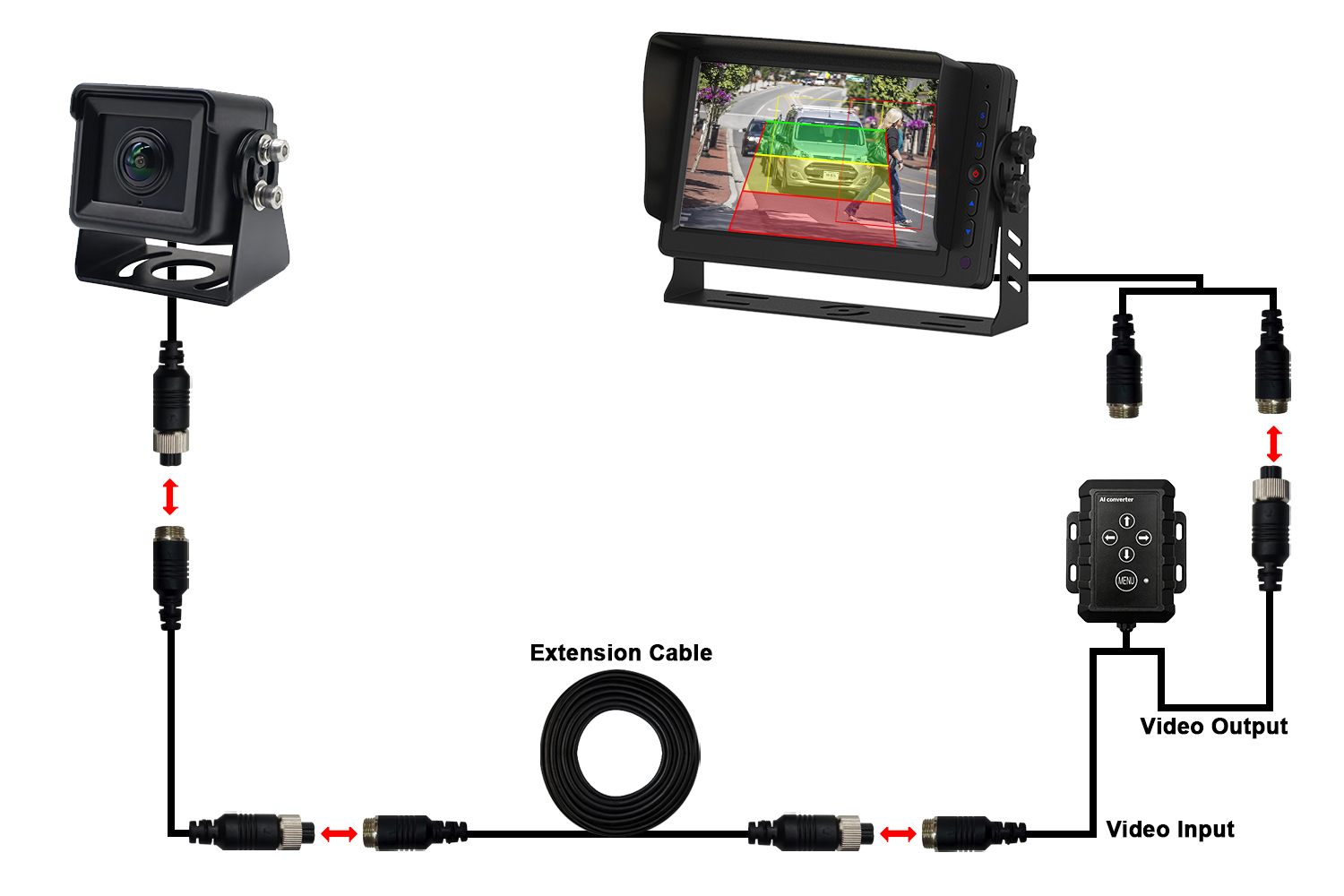

Connector	Video Input (For Camera): 4PIN aviation male connector Video Output (For Monitor): 4PIN aviation female connector
Working Voltage	DC 12-24V
Working Current	12V 150mA
Power	＜2W

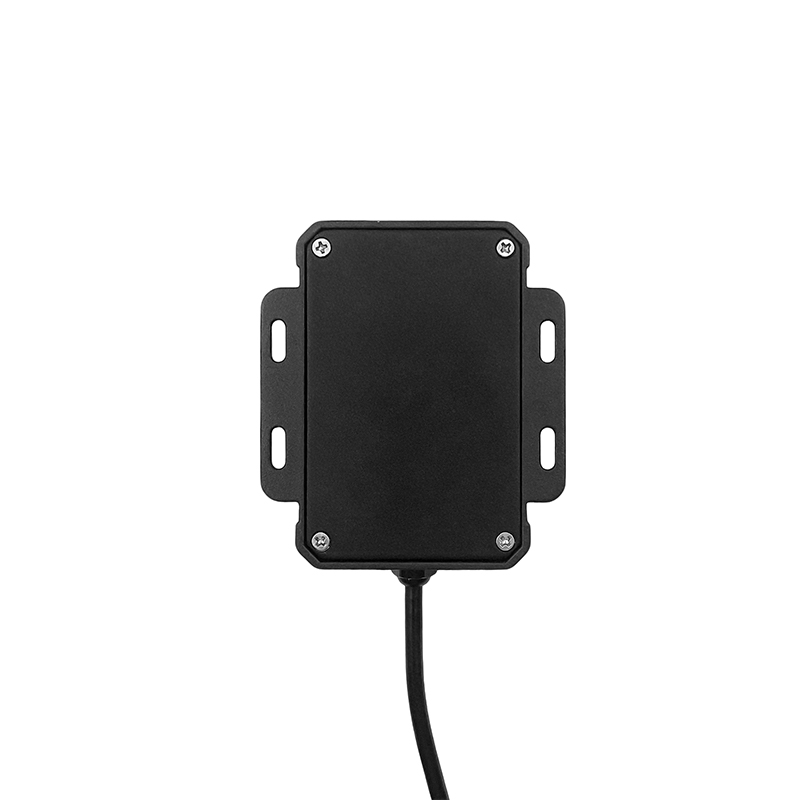

Installation Part	4pcs fixed installation hole (Package include screws)
Housing Material	Aluminum Alloy
Housing Color	Black
IP Rating	IP68
Working Temp.	-20℃ to +70℃
Storage Temp.	-30℃ to +80℃
Dimension	98 * 86 * 25 mm
