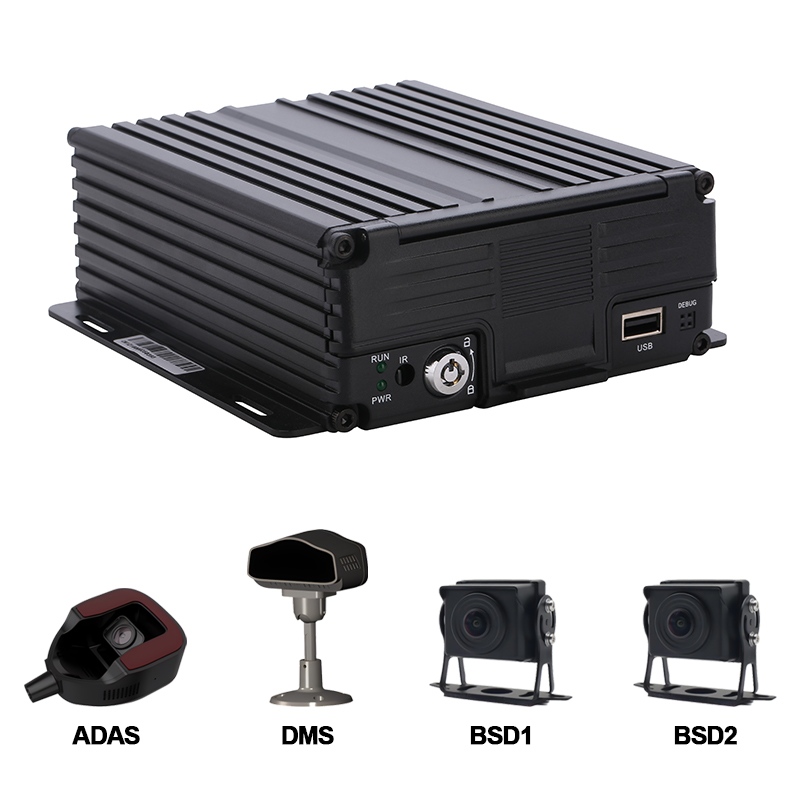

Smarter Fleet Management with Carleader 4CH AI HDD Mobile DVR Support ADAS+DMS+BSD

Introducing Carleader 4CH AI HDD Mobile DVR Support ADAS+DMS+BSD, an 4-channel High-End Hard Drive Digital Video Recorder engineered for professional vehicular surveillance and intelligent fleet management. Combining robust hardware design with advanced AI algorithms including ADAS, DSM, BSD. It delivers reliable, high-quality video recording, comprehensive driver assistance, and proactive safety monitoring—all in a single, integrated system.

Features

* Built-in high performance chipsets, coded with H.265 standard, high compression rate and image quality

* AHD/TVI/CVI/IPC/ANALOG/IPC five in one video input, wide compliance

* 4+1 live preview and storage

* 1CH synchronized AV output, 1CH VGA output

* Hard Disk Auto-Heating (Optional)

* Support UPS power input

* Built-in G-sensor, monitor the driving habits

* Reverse Assistance

* Adjust the camera image horizontally and vertically

Power:

* Professional In-Vehicle power design,8-36V DC Wide Voltage Range

* Multiple protection circuits like under-voltage, short, reversed plug-in

* Smart power management system, shutdown under low voltage, low consumption when standby

* Report the GPS info to the server regularly with very low power consumption, compliant with JT/T794-2011 standard

Data Storage:

* Built-in super capacitor to avoid data loss and disk damage caused by sudden outage

* Special file management system to encrypt and protect the data

* Proprietary technology to detect the bad track of the disk which can make sure the continuity of video and long service life of the disk

* Support 2.5 inch HDD/SSD, maximum 2TB

* Support SD card storage, maximum 512GB

Transmission Interface:

* Support GPS/BD/GLONASS optional, high sensitivity, fast positioning

* Support wireless download by WiFi, 802.11b/g/n, 2.4GHz

* Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA

Active security early warning system:

* Built-in ADAS Advanced Driver assistance system (collision, vehicle proximity, lane departure, etc.)

* Built-in DSM driver status analysis system (fatigue, distraction, smoking, talking on the phone, driver anomaly, occlusion, driver contrast, etc.)

* Built-in BSD (optional) blind area monitoring system (Level 3 alarm)

* Support remote calibration function of operation and maintenance platform

Comprehensive Interface Suite

Carleader 4CH AI HDD Mobile DVR Support ADAS+DMS+BSD is designed for easy integration with a complete set of labeled external ports:

* AV Input/Output: Dedicated M12 connectors for 4CH video/audio input and combined AV ports for CVBS/VGA output.

* Control & Data: Separate I/O interface for alarms, CAN bus, RS232/485, and other vehicle data signals.

* Expansion: Includes IPC port (1x M12-6Pin), USB host port, and a speaker/microphone interface for audio alerts and communication.

* Antenna Connections: External sockets for GPS, 4G, and optional WIFI antennas.

Ideal For:

Carleader 4CH AI HDD Mobile DVR Support ADAS+DMS+BSD is the perfect solution for commercial fleets, public transportation, logistics, and special vehicles requiring:

* Uncompromising video evidence quality.

* Real-time driver behavior and safety monitoring.

* Vehicle tracking and fleet management.

* Proactive maintenance and incident prevention.
