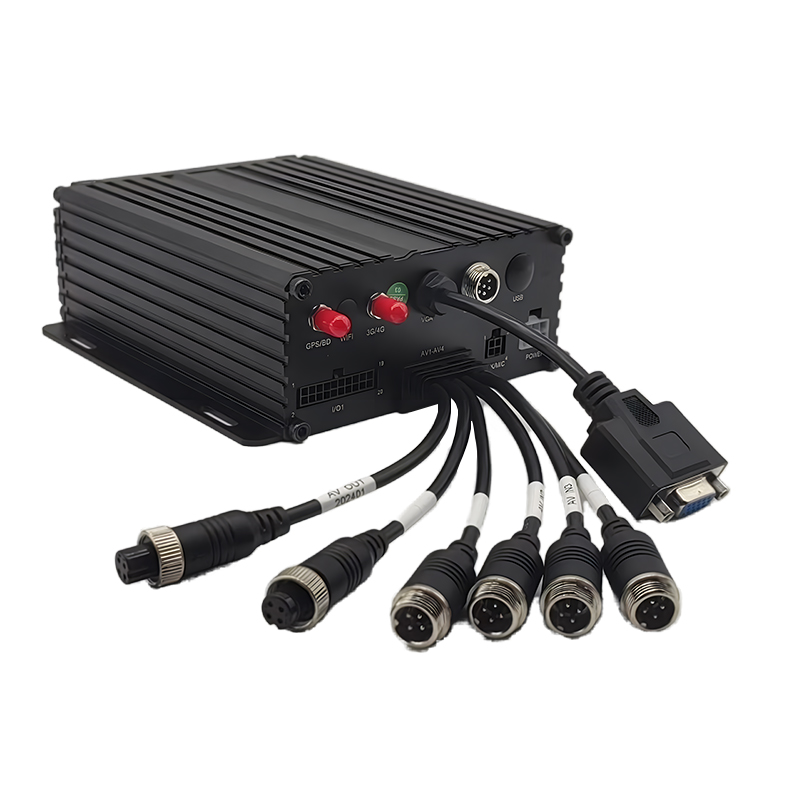

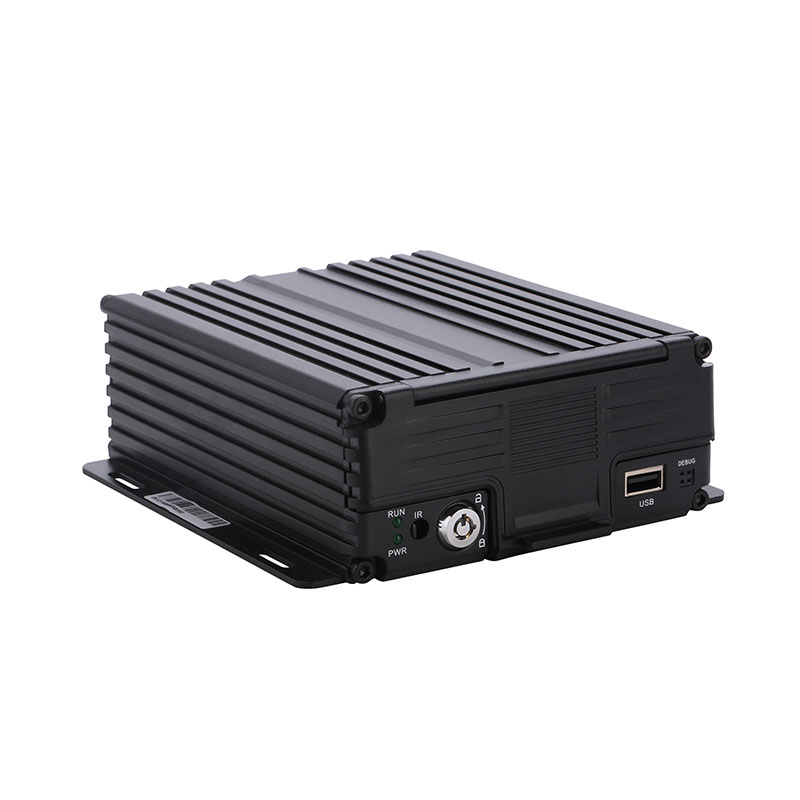

4CH AI HDD Mobile DVR Support ADAS+DMS+BSD

Carleader 4CH AI HDD Mobile DVR Support ADAS+DMS+BSD, a high-performance vehicle video surveillance device, which integrates advanced AI technology, support ADAS, DMS, BSD function, intelligent analysis and intelligent management. HDD storage, support 2.5inch HDD, up to 2TB. Can be widely used in various types of vehicles such as buses, taxis, logistics vehicles, etc. providing comprehensive security and data support.

Features:

Built-in high performance chipsets, coded with H.265 standard, high compression rate and image quality

AHD/TVI/CVI/IPC/ANALOG/IPC five in one video input, wide compliance

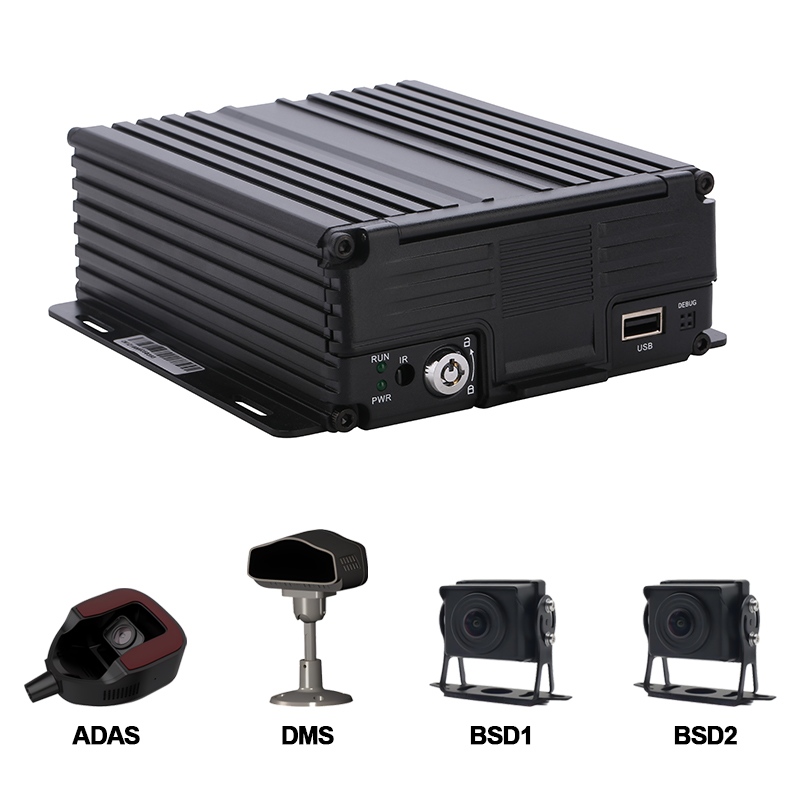

Support 4CH AV inputs (ADAS, DSM, BSD Optional), and 1ch IPC

1CH synchronized AV output, 1CH VGA output

Hard Disk Auto-Heating (Optional)

Support UPS power input

Built-in G-sensor, monitor the driving habits

Reverse Assistance

Adjust the camera image horizontally and vertically

Power:

Professional In-Vehicle power design,8-36V DC Wide Voltage Range

Multiple protection circuits like under-voltage, short, reversed plug-in

Smart power management system, shutdown under low voltage, low consumption when standby

Report the GPS info to the server regularly with very low power consumption, compliant with JT/T794-2011 standard

Data Storage:

Built-in super capacitor to avoid data loss and disk damage caused by sudden outage

Special file management system to encrypt and protect the data

Proprietary technology to detect the bad track of the disk which can make sure the continuity of video and long service life of the disk

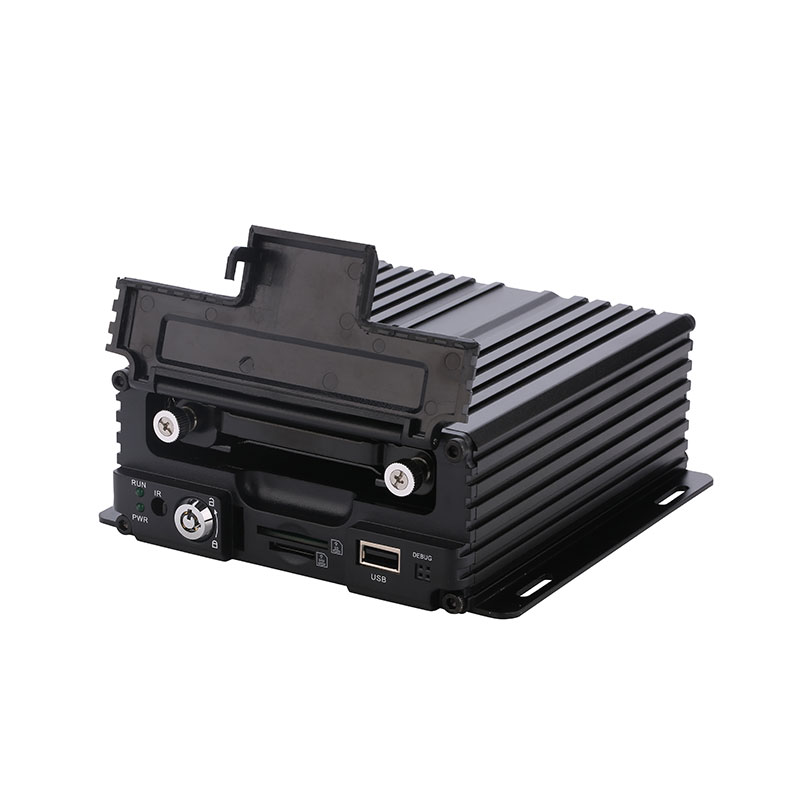

Support 2.5 inch HDD/SSD, maximum 2TB

Support SD card storage, maximum 512GB

Transmission Interface:

Support GPS/BD/GLONASS optional, high sensitivity, fast positioning

Support wireless download by WIFI, 802.11b/g/n, 2.4GHz

Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA

Active security early warning system:

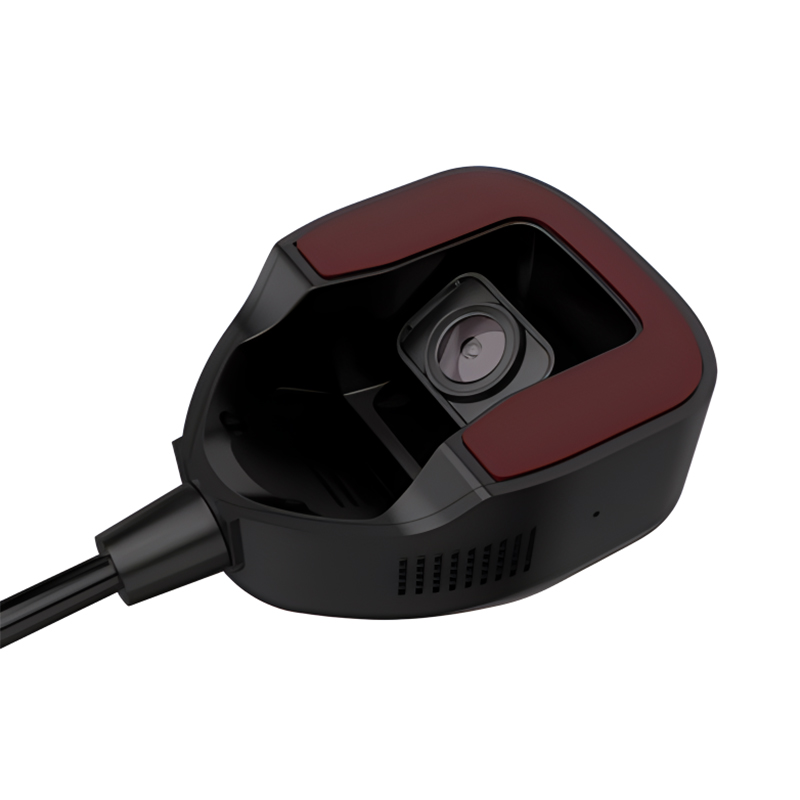

Built-in ADAS Advanced Driver assistance system (collision, vehicle proximity, lane departure, etc.)

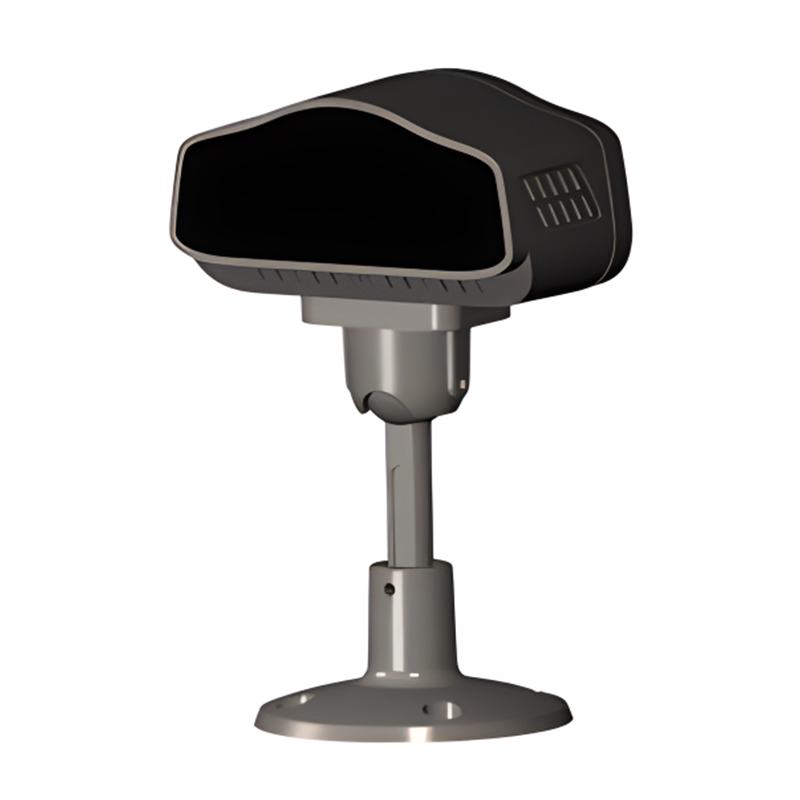

Built-in DSM driver status analysis system (fatigue, distraction, smoking, talking on the phone, driver anomaly, occlusion, driver contrast, etc.)

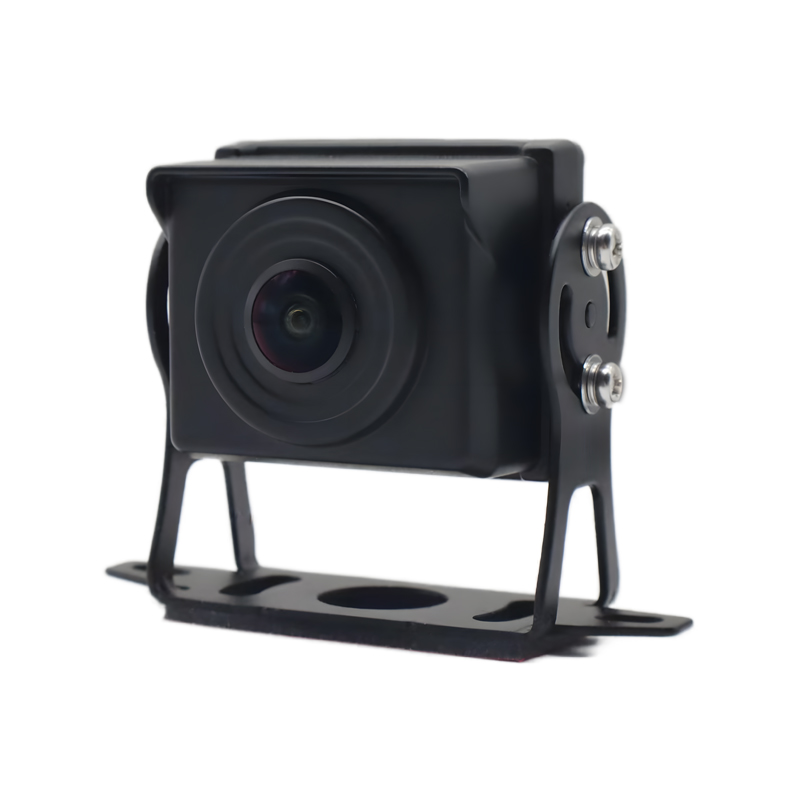

Built-in BSD (optional) blind area monitoring system (Level 3 alarm)

Support remote calibration function of operation and maintenance platform

Technical Parameter:
