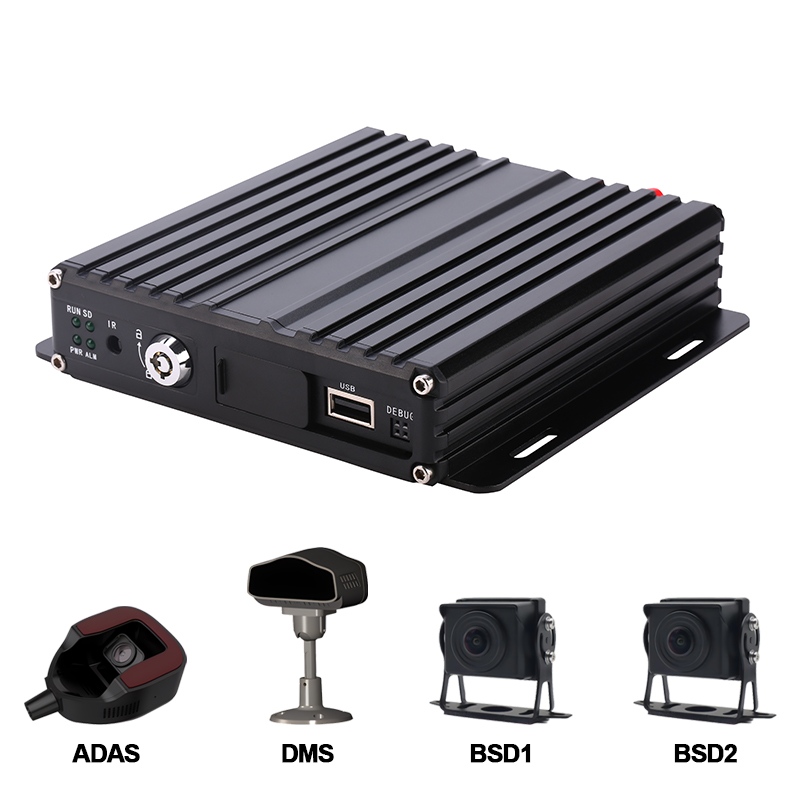

Carleader 4CH AI SD Mobile DVR Support ADAS+DMS+BSD For Fleet Management

Carleader 4CH AI SD Mobile DVR Support ADAS+DMS+BSD, an 4-channel High-End SD Card Storage Digital Video Recorder engineered for professional vehicular surveillance and intelligent fleet management. Combining robust hardware design with advanced AI algorithms including ADAS, DSM, BSD. It delivers reliable, high-quality video recording, comprehensive driver assistance, and proactive safety monitoring—all in a single, integrated system.

Features

*H.265 encoding, high compression ratio, clear image, save memory space

*Support 4ch AHDs,1ch IPC

*Support AI algorithm, such as ADAS, DMS, BSD.

*AHD/TVI/CVI/IPC/ analog five video inputs

*Supports 4-way 25 frame real-time encoding

*Support CAN

*Built-in G-Sensor to monitor vehicle driving behavior in real time

*Support the auxiliary astern image ranging

*Support image level, mirror adjustment

*Unique GPS drift suppression algorithm

*Input pulse automatic calibration algorithm

*Support Yunweibao debugging and maintenance

Power supply:

*Professional car power supply 9-36V DC wide voltage input design

*Undervoltage, short circuit, reverse connection and other protection circuit, suitable for all kinds of models

*Support intelligent power management identification, low power automatic shutdown, flame out low power consumption

Data storage:

*Built-in ultracapacitor to avoid data loss and disk damage due to abnormal power outages

*Adopt special file management mechanism, encrypt data, effectively protect data security

*Support double SD card storage, the maximum support single card 512G

Wireless module:

*Built-in GPS/BD/GLONASS module, high sensitivity, fast positioning

*Built-in 4G module, support LTE/HSPA/WCDMA

*WIFI module (configurable), support 802.11b/g/n, frequency 2.4GHz

Driving behavior detection

*Support harsh acceleration, harsh deceleration, harsh turn

*Support rollover, collision alarm

Active security early warning system:

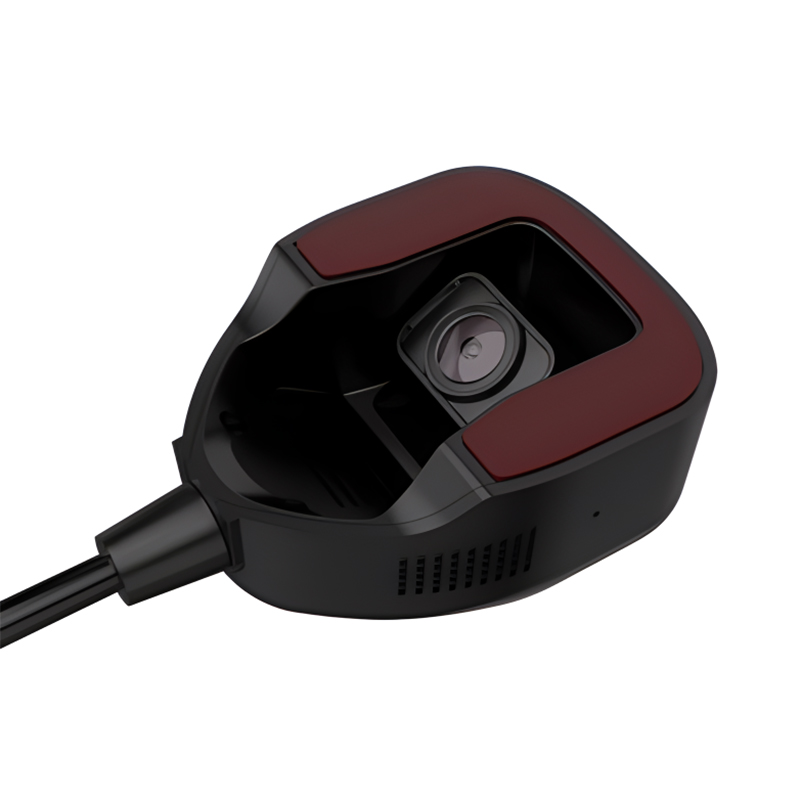

* Built-in ADAS Advanced Driver assistance system (collision, vehicle proximity, lane departure, etc.)

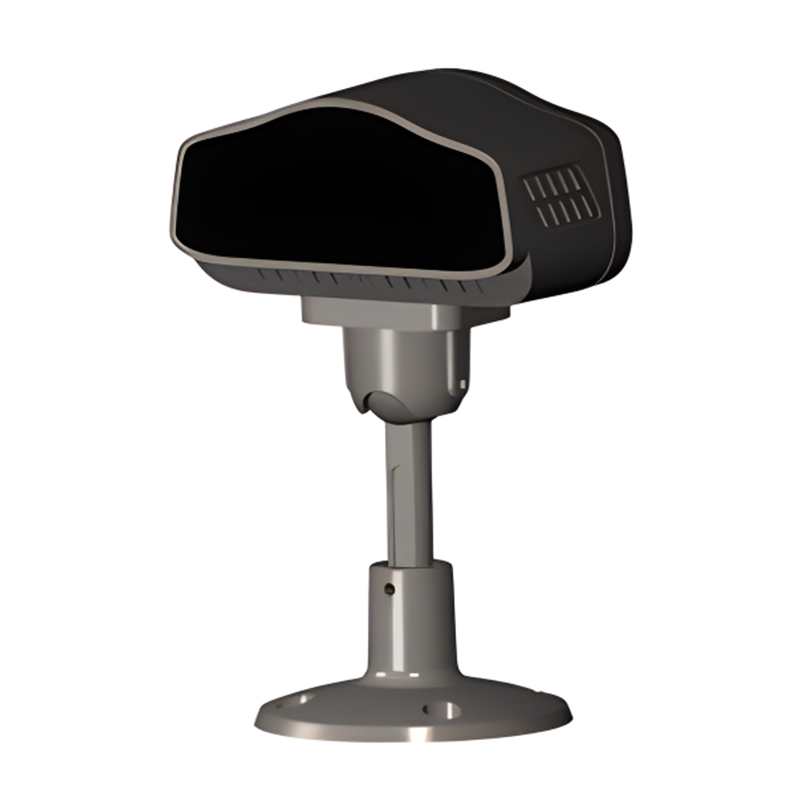

* Built-in DSM driver status analysis system (fatigue, distraction, smoking, talking on the phone, driver anomaly, occlusion, driver contrast, etc.)

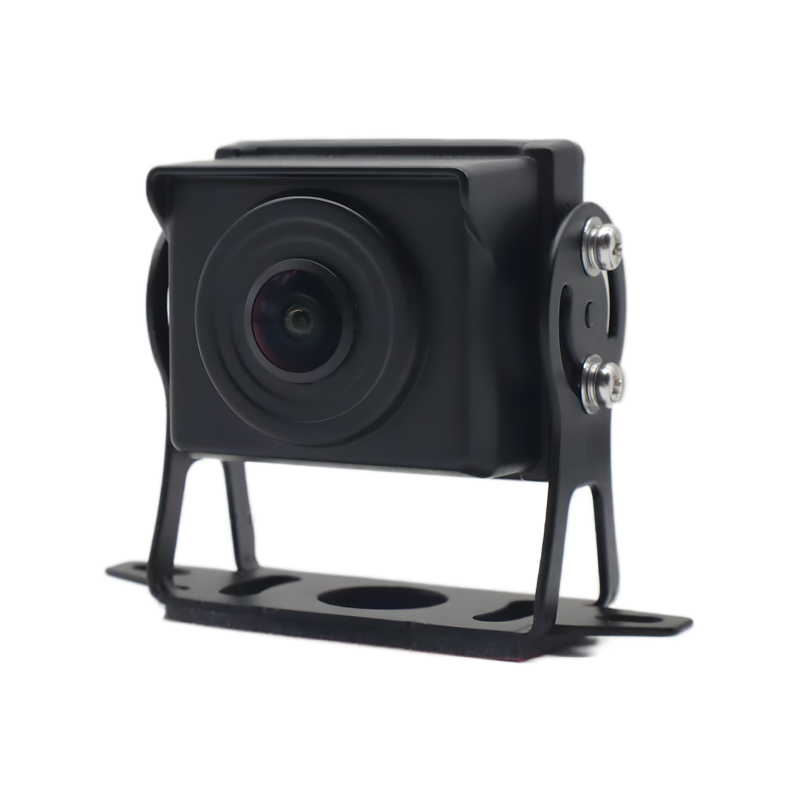

* Built-in BSD (optional) blind area monitoring system (Level 3 alarm)

* Support remote calibration function of operation and maintenance platform

Comprehensive Interface Suite

Carleader 4CH AI SD Mobile DVR Support ADAS+DMS+BSD is designed for easy integration with a complete set of labeled external ports:

* AV Input/Output: Dedicated M12 connectors for 4CH video/audio input and combined AV ports for CVBS/VGA output.

* Control & Data: Separate I/O interface for alarms, CAN bus, RS232/485, and other vehicle data signals.

* Expansion: Includes IPC port (1x M12-6Pin), USB host port, and a speaker/microphone interface for audio alerts and communication.

* Antenna Connections: External sockets for GPS, 4G, and optional WIFI antennas.

Ideal For:

Carleader 4CH AI SD Mobile DVR Support ADAS+DMS+BSD is the perfect solution for commercial fleets, public transportation, logistics, and special vehicles requiring:

* Uncompromising video evidence quality.

* Real-time driver behavior and safety monitoring.

* Vehicle tracking and fleet management.

* Proactive maintenance and incident prevention.
