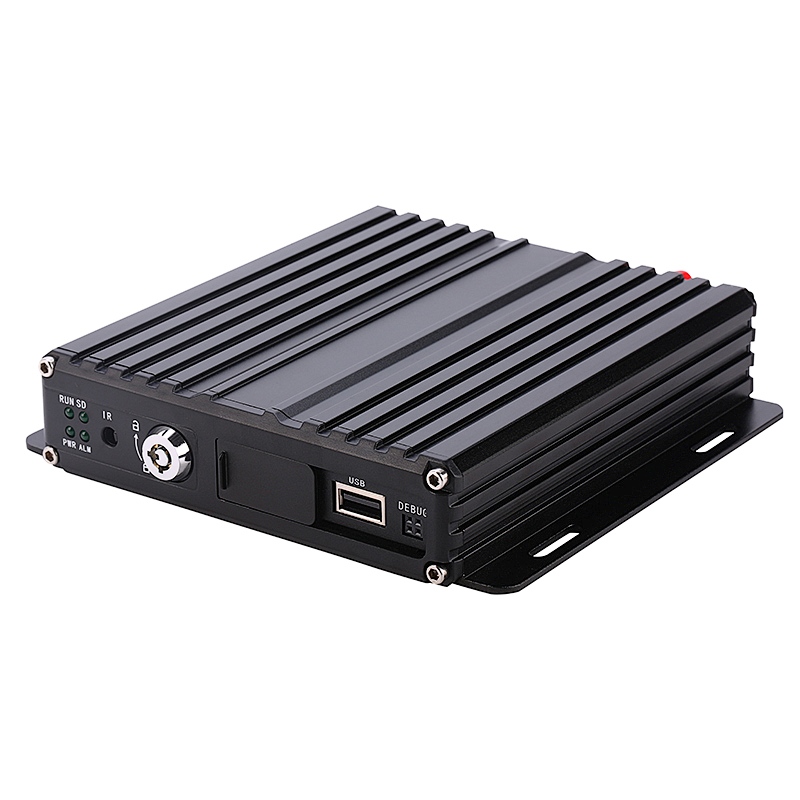

4CH AI SD Mobile DVR Support ADAS+DMS+BSD

Carleader 4CH AI SD Mobile DVR Support ADAS+DMS+BSD, a high-performance vehicle video surveillance device, which integrates advanced AI technology, support ADAS, DMS, BSD function, intelligent analysis and intelligent management. Can be widely used in various types of vehicles such as buses, taxis, logistics vehicles, etc. providing comprehensive security and data support.

Features:

• H.265 encoding, high compression ratio, clear image, save memory space

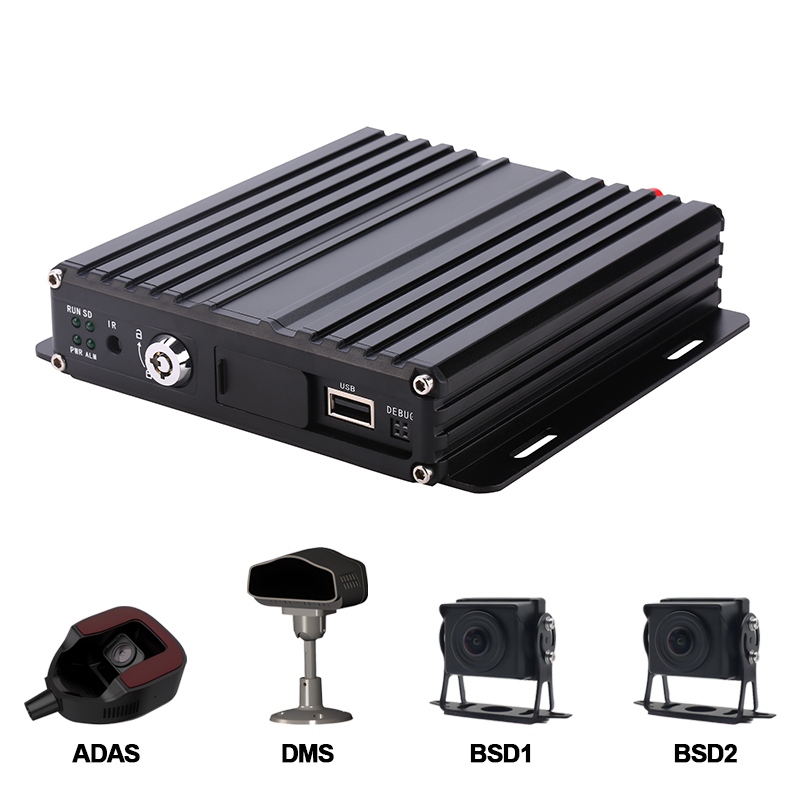

• Support 4CH AV inputs (ADAS, DSM, BSD Optional),1ch IPC
• AHD/TVI/CVI/IPC/ analog five video inputs
• Supports 4-way 25 frame real-time encoding
• Support CAN
• Built-in G-Sensor to monitor vehicle driving behavior in real time
• Support the auxiliary astern image ranging
• Support image level, mirror adjustment
• Unique GPS drift suppression algorithm
• Input pulse automatic calibration algorithm
• Support Yunweibao debugging and maintenance

Power supply:

• Professional car power supply 9-36V DC wide voltage input design
• Undervoltage, short circuit, reverse connection and other protection circuit, suitable for all kinds of models
• Support intelligent power management identification, low power automatic shutdown, flame out low power consumption

Data storage:

• Built-in ultracapacitor to avoid data loss and disk damage due to abnormal power outages
• Adopt special file management mechanism, encrypt data, effectively protect data security
• Support double SD card storage, the maximum support single card 512G

Wireless module:

• Built-in GPS/BD/GLONASS module, high sensitivity, fast positioning
• Built-in 4G module, support LTE/HSPA/WCDMA
• WIFI module (configurable), support 802.11b/g/n, frequency 2.4GHz

Active security early warning system:

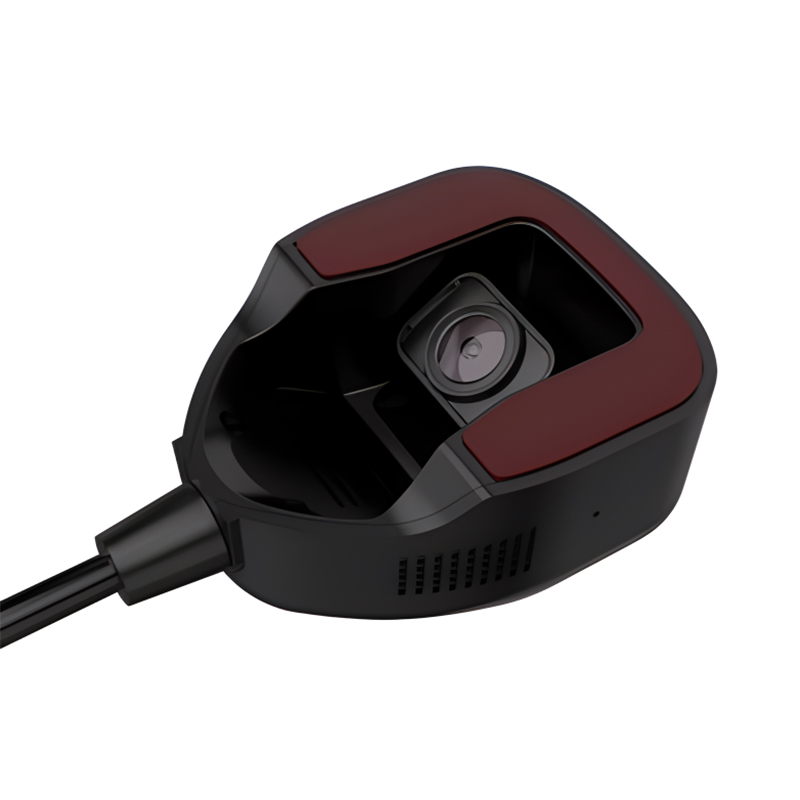

• Built-in ADAS Advanced Driver assistance system (collision, vehicle proximity, lane departure, etc.)

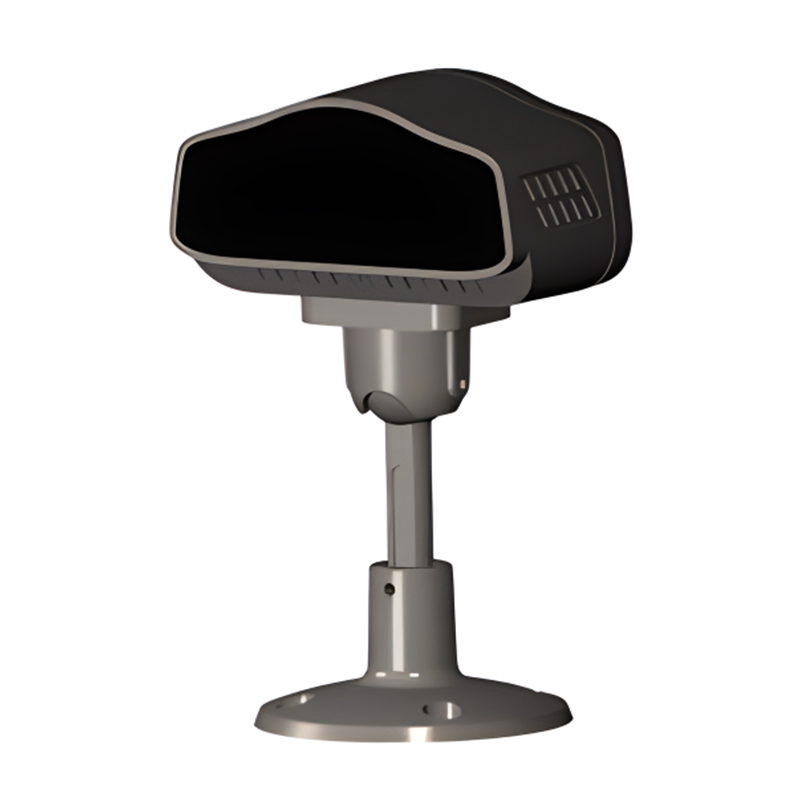

• Built-in DSM driver status analysis system (fatigue, distraction, smoking, talking on the phone, driver anomaly, occlusion, driver contrast, etc.)

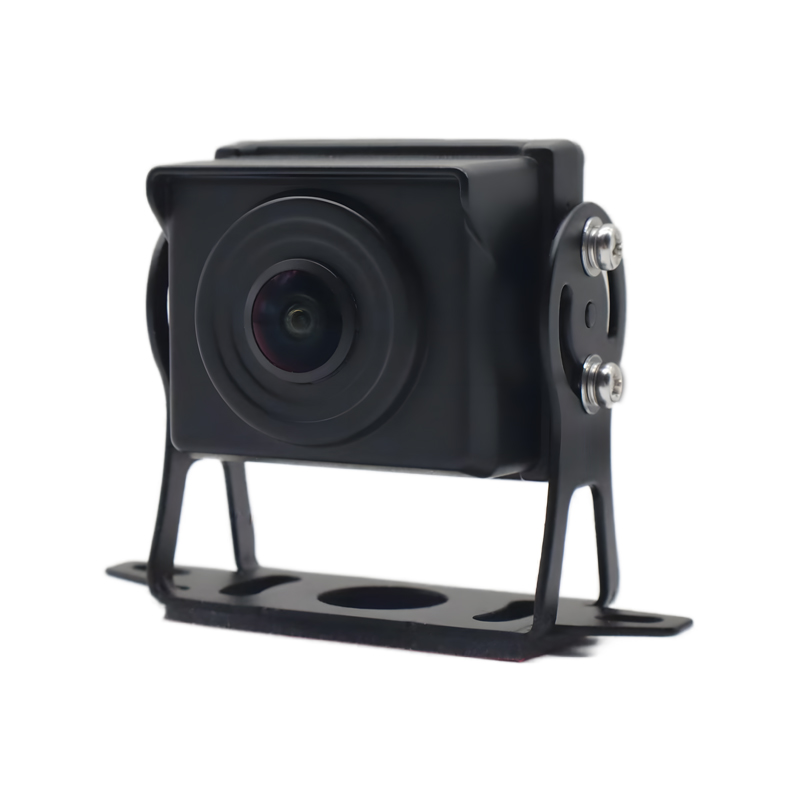

• Built-in BSD (optional) blind area monitoring system (Level 3 alarm)
• Support remote calibration function of operation and maintenance platform

Driving behavior detection

• Support harsh acceleration, harsh deceleration, harsh turn
• Support rollover, collision alarm
