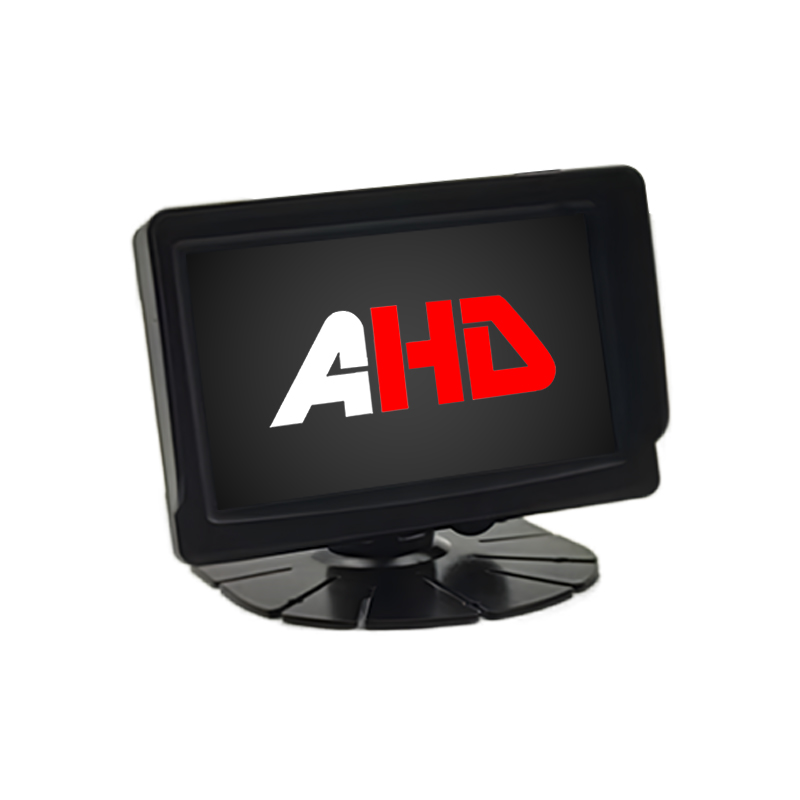

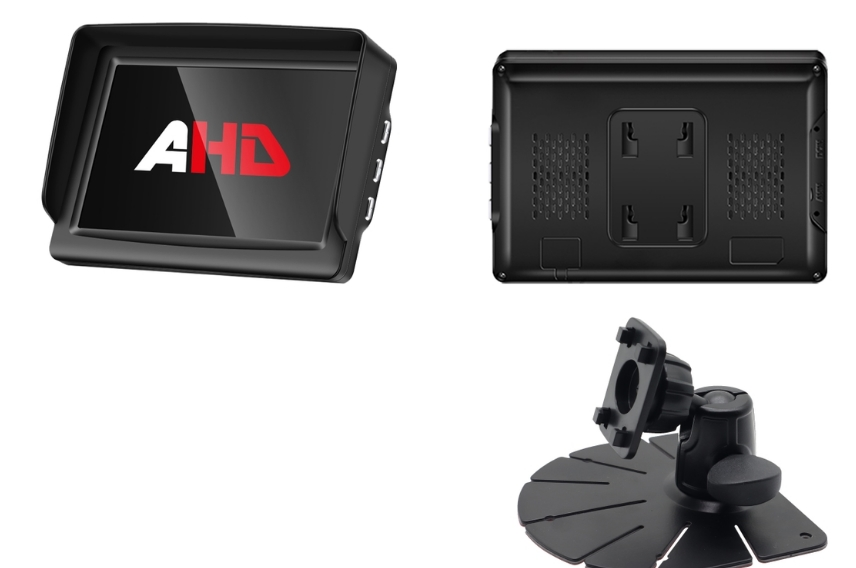

Carleader 5 Inch 2CH AHD Inputs Vehicle Backup Monitor - AHD Monitor Conbined with Compact and Functional

Carleader 5 Inch 2CH AHD Inputs Vehicle Backup Monitor is a compact yet functional 5-inch AHD monitor designed for reliable performance in a variety of visual monitoring applications. Featuring a clear 16:9 ratio display and 800 x 480 (RGB) resolution with sharp image quality and versatile input options, it is an ideal solution for automotive, security, industrial, and multimedia use.

Parameter:

5" digital panel 16:9 image

Resolution:800xRGBx480

Brightness:350cd/m2

Contrast: 400:1

Viewing angle: Hor. L (70) R (70) Ver. UP(50) DOWN(70)

Operation Language: English, Chinese, Korean, Japanese, Russian

Video input: 2 video inputs with 1 trigger wire

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

With guide line and Reverse delay (0~10S selection)

AHD1/AHD2  Mirror or Normal image switchable

Shockprooflevel:4G

Power supply: DC12-24V

Working temperature: -20 to 70℃

Storage temperature: -30 to 80℃

Dimension: 13x8.8 x3.8cm( without shade)

                   13x 8.8 x 2cm(with shade)

Whether used as a rearview monitor, a surveillance display, or an embedded visual interface, Carleader 5 Inch 2CH AHD Inputs Vehicle Backup Monitor combines clarity, durability, and user-friendly operation in a compact form factor. Its wide operating temperature range and multi-language support make it suitable for global applications in demanding environments.
