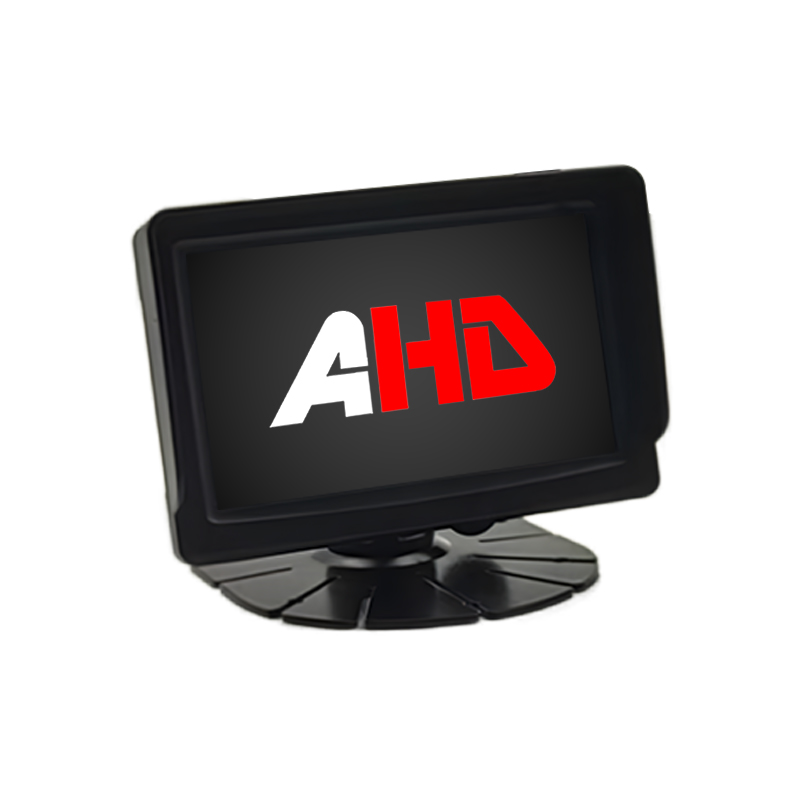

5 Inch 2CH AHD Inputs Vehicle Backup Monitor

Carleader is a professional 5 Inch 2CH AHD Inputs Vehicle Backup Monitor manufacturer and supplier in China. We have been specialized in car monitoring for many years. Our products have a good price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China.

Model:CL-530AHD

Send Inquiry

Product Description

Carleader 5 Inch 2CH AHD Inputs Vehicle Backup Monitor, a 5 inch AHD monitor with 16 : 9 image ratio, 800 x 480 (RGB) resolution. With 2 video inputs and trigger wire which could be compatible with CVBS&720P&960P&1080P HD 25/30fps P/N video inputs.

Parameter:

5 Inch 2CH AHD Inputs Vehicle Backup Monitor
Model	CL-S530AHD
Screen Type	5 inch TFT LCD panel
Aspect Ratio	16 : 9
Resolution	800 x 480 (RGB)
Brightness	350 cd/m2
Contrast	400 : 1
Video Input	Support 2CH 1080P/720P/CVBS inputs Mixed Video Signal Input available With 1CH trigger wires inputs for AHD2 on reversing
Speaker	Not Available
Auto Dimming	Not Available
Remote Control	Yes, Package include 1x remote
OSD Menu	Brightness, Contrast, Color, Language Select, Display Aspect Ratio, Trigger Delay, Parking Guide Line On/Off, Reset
Parking Guide Line	Only for AHD2, activated when trigger the trigger wire (Off as default)
Button Type	Click buttons on the side
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	13 x 8.8 x 3.8 cm (without shade) 13 x 8.8 x 2 cm (with shade)
