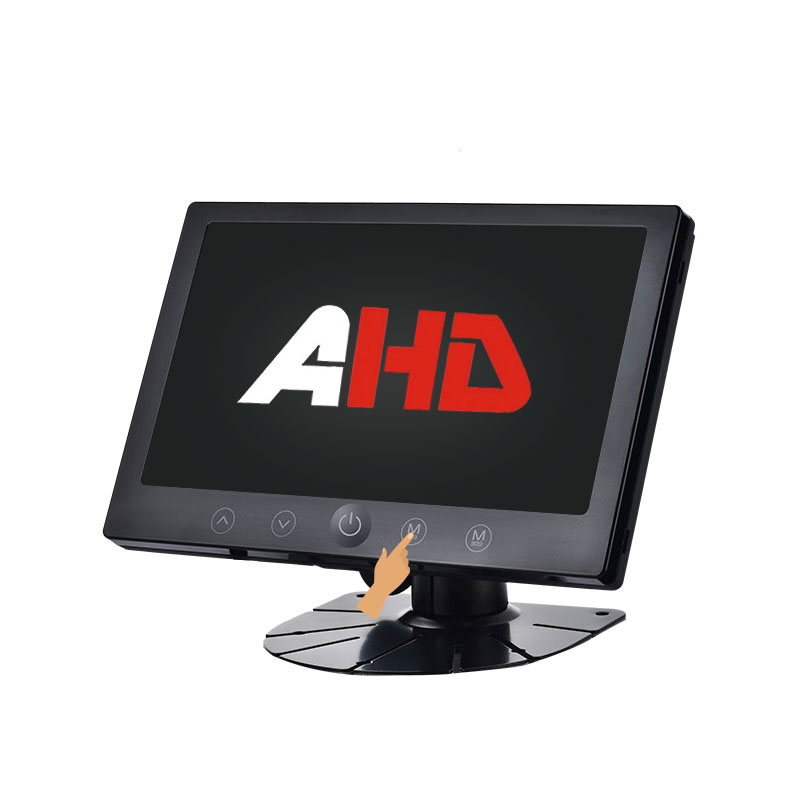

Carleader 7 Inch IPS Screen 2CH AHD Input Touch Buttons Heavy Vehicle Monitor

Carleader 7 Inch IPS Screen 2CH AHD Input Touch Buttons Heavy Vehicle Monitor is a high-performance 7-inch AHD monitor designed for reliable and clear visual display in various applications. Featuring an advanced auto-dimming function, it ensures optimal screen visibility under different lighting conditions, reducing eye strain and enhancing usability.

Key Features & Specifications:

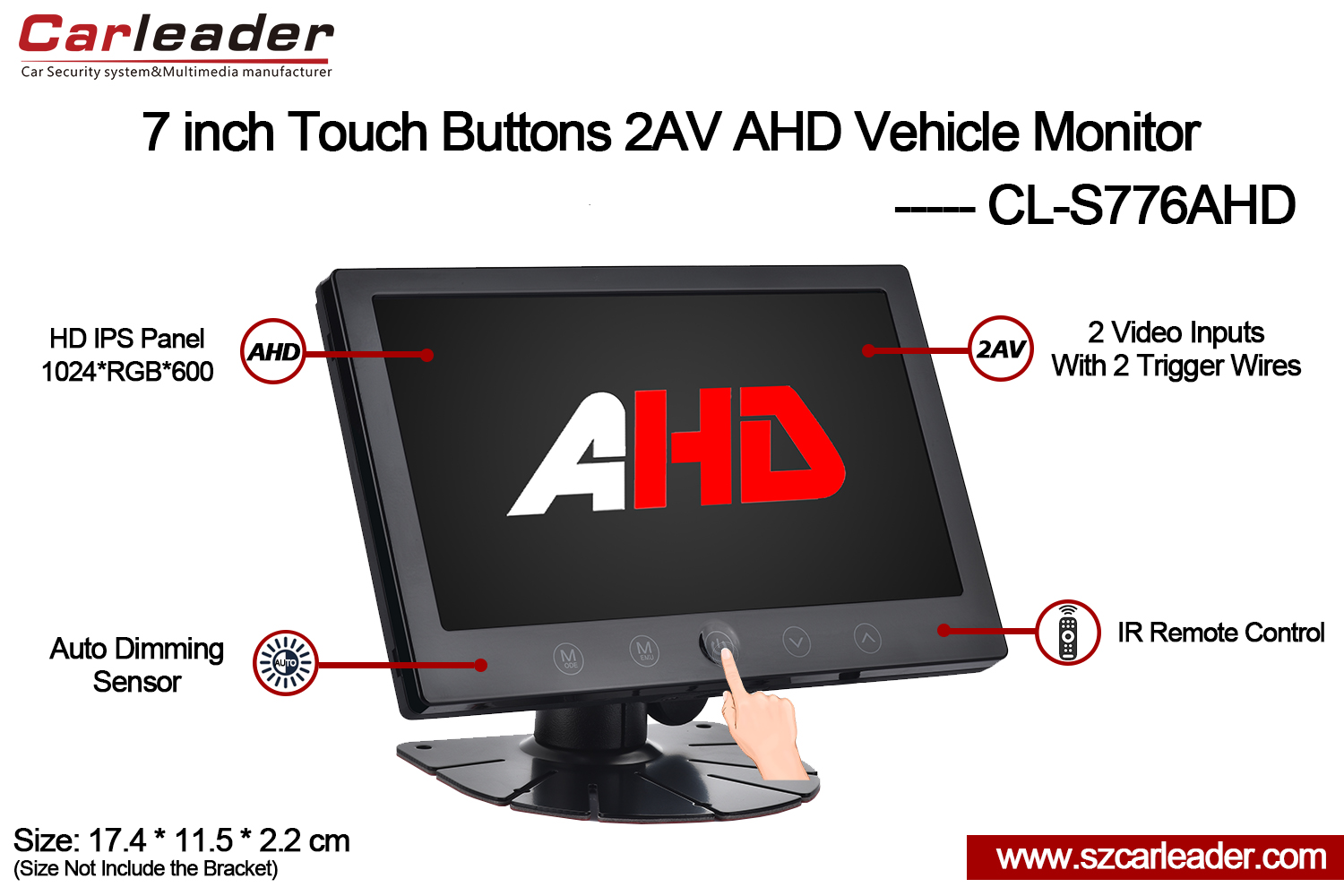

Display: 7” HD IPS panel with a 16:9 aspect ratio, offering a resolution of 1024 x 600 (RGB), brightness of 450 cd/m², and a contrast ratio of 500:1 for sharp and vibrant images.

Wide Compatibility: Supports AHD and CVBS camera inputs. Compatible with multiple video formats including D1, 720P, 1080P at HD25/30fps for both PAL and NTSC systems.

Dual Video Inputs: Equipped with 2-CH AHD inputs via a 4-pin aviation connector (RCA connector Optional). And includes 2x trigger wires for AHD1 and AHD2, AHD2 channel has trigger priority

Multi-language OSD: On-screen menu available in English, French, German, and Dutch (default is English).

Adjustable Settings: Includes configurable trigger delay (1-10 seconds, default 3s), guide line ON/OFF, mirror mode, and output shutter control for AHD1/AHD2, and more.

Optional Features: Auto dimmer function (optional), built-in speaker (optional).

Robust Design: Operates on DC 9–32V, with an operating temperature range of -30°C to 80°C and storage temperature of -20°C to 80°C, suitable for demanding environments.

Compact Dimensions: Measures 17.4 x 11.5 x 2.2 cm, making it easy to install in space-limited setups.

Carleader 7 Inch IPS Screen 2CH AHD Input Touch Buttons Heavy Vehicle Monitor ideal for automotive, security, marine, and industrial use, it combines durability, flexibility, and high-quality display performance in one reliable package.
