Can a Dual-Lens Rear View Camera See Both Near and Far?

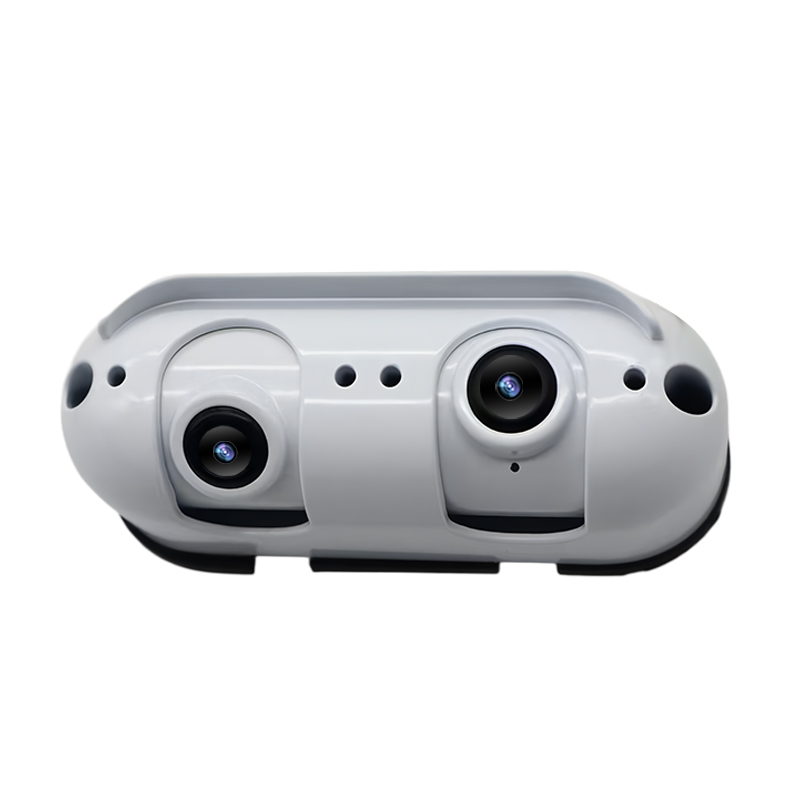

Dual-Lens Design Provides Close and Long-Distance Views. Commercial vehicles often have large rear blind spots, and a single rear view camera may not provide the ideal view of both nearby obstacles and the area farther behind the vehicle. Carleader Starlight Waterproof Dual Lens HD Heavy Duty Rear View Camera addresses this challenge with two lenses integrated into one camera housing. The default horizontal viewing angles are 90° and 135°, allowing the two lenses to cover different viewing areas. When connected to a compatible monitor, the system helps drivers check nearby obstacles and observe a wider area behind the vehicle. This design is particularly relevant for trucks, trailers, buses and other heavy-duty vehicles where rear visibility is essential for reversing and maneuvering.

Independent Lens Adjustment Helps Customize Coverage

Not every vehicle has the same rear structure or installation requirements. A camera mounted high on a truck may need to show a different area from one installed on a trailer or commercial van. The dual lenses on this Carleader rear view camera can be adjusted independently, allowing installers to customize their viewing directions according to the vehicle layout. This flexibility helps buyers develop a more suitable rear monitoring arrangement without relying on a fixed viewing direction for both lenses. Before ordering, distributors and installers should confirm the required viewing angles, mounting position and image orientation for the target application.

Starlight Night Vision Delivers Color Images Without IR LEDs

Nighttime visibility is an important consideration for commercial vehicle operators working early mornings, late nights or in poorly illuminated locations. Unlike conventional infrared cameras that rely on IR LEDs for night vision, this starlight rear view camera is designed to capture color images in very low-light conditions without IR LED illumination. The product specifies 0 LUX operation without IR LEDs, supported by its starlight imaging technology. Actual image quality depends on available ambient light and installation conditions, so buyers should evaluate performance according to their operating environment. For fleet operators, the ability to retain color image information in low light can be useful when checking vehicle surroundings.

IP69K Protection for Heavy-Duty Vehicle Applications

Rear-mounted cameras can be exposed to rain, road spray, dust and regular vehicle washing. The camera features an IP69K protection rating and an aluminum alloy housing, making it suitable for demanding exterior vehicle installations when correctly installed. Its operating temperature range is specified as -20°C to +75°C, supporting use across a variety of working environments within the stated limits. For heavy-duty vehicle camera projects, purchasing teams should also check connector protection, cable routing and mounting methods to ensure that the complete installation meets the required environmental conditions.

Multiple Video Formats for Compatible Vehicle Monitoring Systems

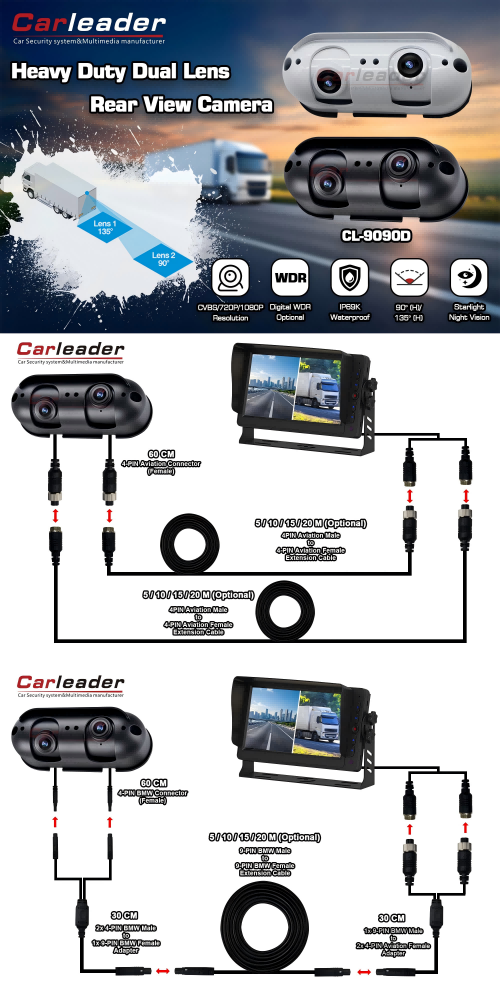

Different vehicle monitoring projects may use different camera and display standards. This Carleader dual lens camera is available in CVBS, AHD 720P and AHD 1080P configurations, allowing buyers to select a version suited to their compatible vehicle monitor or recording system. Mirror and non-mirror image options are also available. Standard power is DC 12V, with a 24V option for compatible vehicle electrical systems. Because available configurations may vary, buyers should specify the required video format, resolution, voltage and image orientation when requesting a quotation.

Suitable for Trucks, Trailers, Buses and Commercial Fleets

The Starlight Waterproof Dual Lens HD Heavy Duty Rear View Camera is suitable for vehicle monitoring projects where drivers need to check different rear viewing distances. Potential applications include heavy-duty trucks, semi-trailers, buses, coaches, commercial vans and fleet vehicles. It can also be considered by vehicle camera distributors, fleet equipment suppliers, OEMs and professional installation companies developing customized rear view camera systems. The final result depends on camera placement, lens adjustment and the monitor used to display the images.

Key Considerations for Wholesale and OEM Buyers

When sourcing a dual-lens backup camera, buyers should evaluate the required viewing areas rather than comparing viewing angles alone. Confirm whether the application needs CVBS, AHD 720P or AHD 1080P, whether the vehicle uses 12V or 24V power, and whether mirrored or non-mirrored images are required. It is also important to verify the compatible monitor input and determine whether the two lens images will meet the intended viewing arrangement. For OEM and private-label projects, buyers can discuss customization and order requirements with Carleader before placing an order.

Carleader Supplies Dual-Lens Camera Solutions for Commercial Vehicles

Carleader Starlight Waterproof Dual Lens HD Heavy Duty Rear View Camera combines two independently adjustable lenses, close-and-far viewing capability, starlight color night vision and IP69K protection in one heavy-duty camera. It offers commercial vehicle equipment distributors, fleet integrators and professional installers a flexible option for applications requiring enhanced rear visibility.
