Can a 16-Channel Vehicle MDVR Support More Cameras and Flexible Storage?

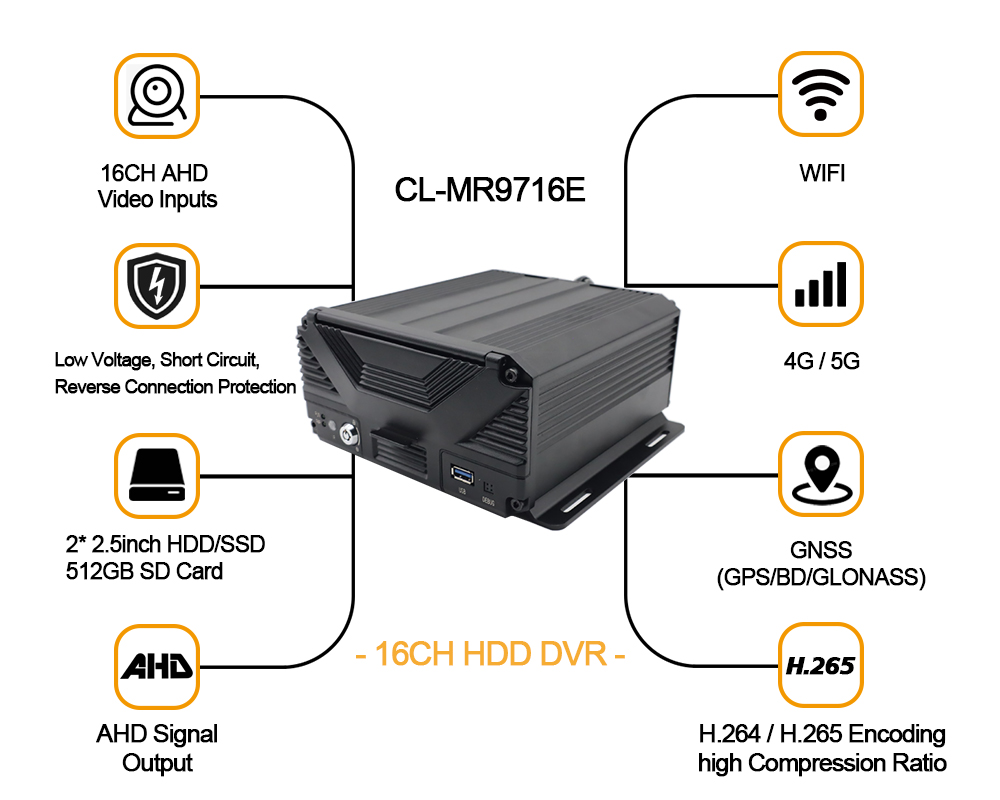

Carleader 16CH AHD MDVR with Dual HDD and SD Card Storage is developed for commercial vehicles that need to record video from multiple camera positions. With support for up to 16 video input channels, the system can form the recording center of a vehicle surveillance installation covering different areas inside and around a vehicle. This makes it worth considering for fleet operators, vehicle electronics distributors and integrators working on large-vehicle monitoring projects. The exact camera layout and input compatibility should be confirmed against the selected system configuration.

Flexible Video Input and Output Compatibility

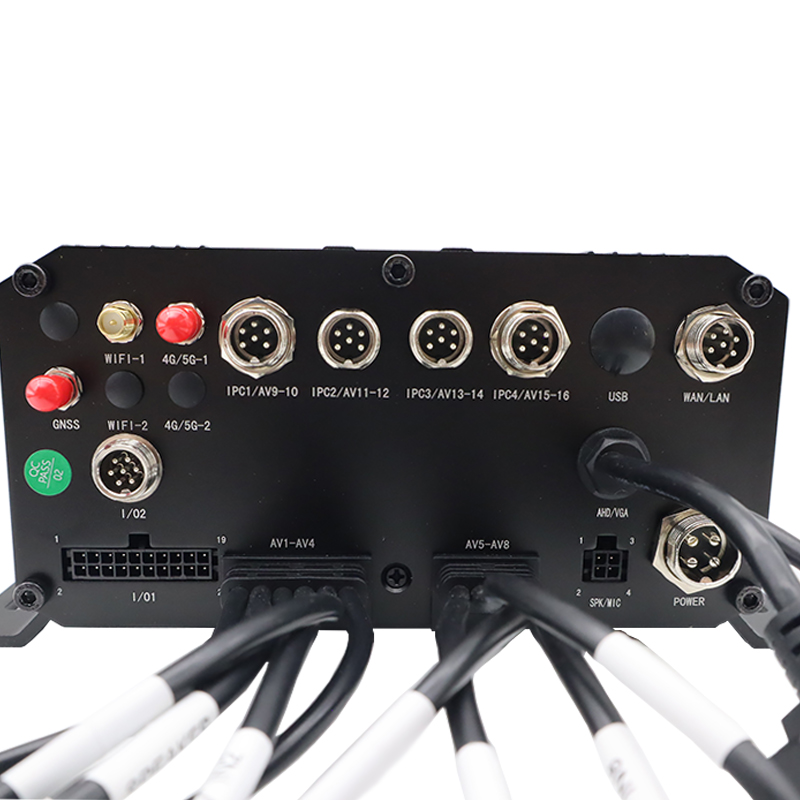

Vehicle surveillance projects often combine different camera types and display requirements. This 16-channel mobile DVR supports listed AHD, TVI, CVI, IPC and analog video input formats, with supported AHD resolutions of 720P and 1080P. CVBS, AHD and VGA video outputs provide options for compatible display arrangements. Buyers should verify the exact signal format, resolution and interface requirements of their cameras and monitors before placing an order.

Dual HDD and SD Card Storage Options

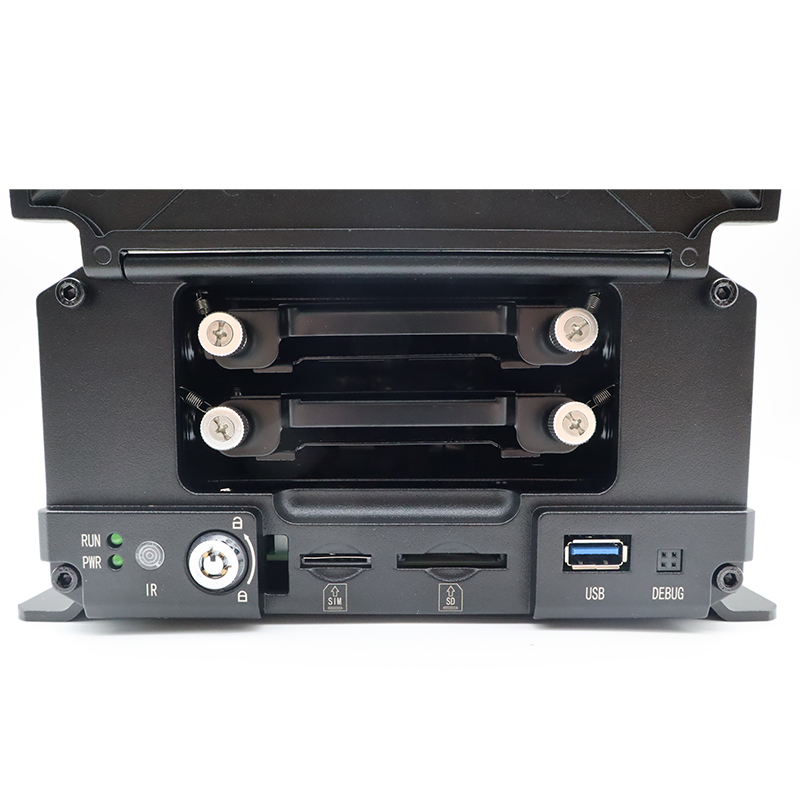

Storage capacity is an important consideration when a fleet needs to retain recordings from numerous cameras. The 16CH AHD MDVR with Dual HDD and SD Card Storage supports two 2.5-inch HDDs with a 7mm thickness configuration, or one 2.5-inch HDD with a 15mm thickness configuration. It also supports an SD card with a capacity of up to 512GB. Actual recording duration depends on the installed storage capacity, number of active channels, video resolution, frame rate, compression settings and recording schedule.

H.264 and H.265 Video Compression

The system supports H.264 and H.265 video encoding. H.265 can help reduce storage requirements compared with less efficient encoding configurations, depending on video settings and recorded content. For buyers comparing a vehicle DVR, mobile DVR or commercial vehicle recording system, compression options can help balance image quality, storage capacity and retention needs.

GNSS Positioning and Optional Network Connectivity

Built-in GNSS supports GPS, BeiDou and GLONASS satellite systems, adding positioning functionality to compatible vehicle monitoring installations. Optional 4G/5G and 2.4GHz Wi-Fi modules are available for projects that require additional connectivity. However, remote live viewing, cloud recording, GPS tracking dashboards and centralized fleet management depend on compatible software, platform support, network access and service configuration. These functions should be confirmed for the complete solution rather than assumed from connectivity hardware alone.

Power Management and Data Protection for Vehicle Use

Designed for vehicle installations, the MDVR operates with a DC 9–36V power supply and includes low-voltage, short-circuit and reverse-connection protection. Intelligent power management supports low-power consumption mode and automatic shutdown when applicable. A built-in supercapacitor helps protect stored data during sudden power interruptions, while encrypted file management and hard-drive bad-sector detection support data handling and storage monitoring.

Applications Across Commercial Fleets and Transportation

The 16CH AHD MDVR with Dual HDD and SD Card Storage can be considered for buses, coaches, trucks, heavy-duty vehicles, public transportation, logistics and delivery fleets. Its multiple video inputs are also relevant to system integrators building multi-camera vehicle surveillance solutions. Distributors and professional installers can assess it for projects that require extensive camera coverage, onboard recording and satellite positioning within one mobile DVR platform.

Key Points for MDVR Distributors and System Integrators

Before selecting a 16-channel vehicle DVR, buyers should confirm the required camera signal types, supported recording resolutions, hard-drive thickness and capacity, SD card requirements, video outputs, GNSS functions and optional communication modules. Compatibility with the intended monitoring platform is especially important for projects involving remote access or centralized fleet management. For OEM and customized projects, buyers can also discuss the required configuration and installation environment with the supplier before finalizing specifications.

Carleader supplies mobile DVR and vehicle monitoring products for commercial vehicle applications. The 16CH AHD MDVR with Dual HDD and SD Card Storage offers multiple video inputs, flexible storage configurations and positioning functions for projects that need a centralized onboard recording solution. Fleet technology suppliers, vehicle electronics wholesalers, MDVR distributors and system integrators can review the product details and contact Carleader to discuss camera compatibility, storage configuration, optional connectivity and project requirements.
