16CH AHD MDVR with Dual HDD and SD Card Storage

Carleader 16CH HDD Vehicle DVR is designed for vehicle video surveillance systems that require multi-channel camera recording, onboard data storage, and positioning functions. The system supports up to 16 channels of 1080P or 720P AHD video input and multiple video input formats, including AHD, TVI, CVI, IPC, and analog video. H.264/H.265 encoding helps reduce video storage requirements while maintaining efficient recording performance.

For storage flexibility, the vehicle DVR supports dual 2.5-inch hard drives in a 7mm thickness configuration, or a single 2.5-inch hard drive in a 15mm thickness configuration. SD card storage up to 512GB is also supported. A built-in supercapacitor helps protect stored data during sudden power interruptions. The DVR integrates GNSS positioning with GPS, BeiDou, and GLONASS support. Optional 4G/5G and 2.4GHz Wi-Fi modules provide additional connectivity options for suitable vehicle monitoring systems. This 16-channel mobile DVR is suitable for commercial vehicle surveillance, fleet recording, and vehicle monitoring projects.

Product Features

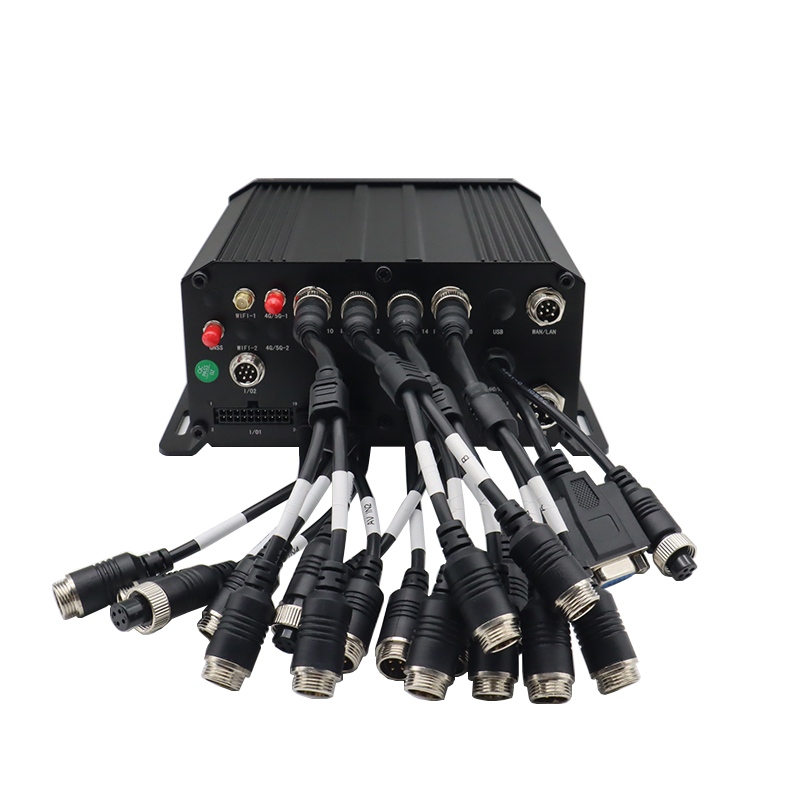

1. 16-Channel Video Input: Supports up to 16 channels of 1080P/720P AHD video input.

2. Multiple Video Input Formats: Supports AHD, TVI, CVI, IPC, and analog video inputs.

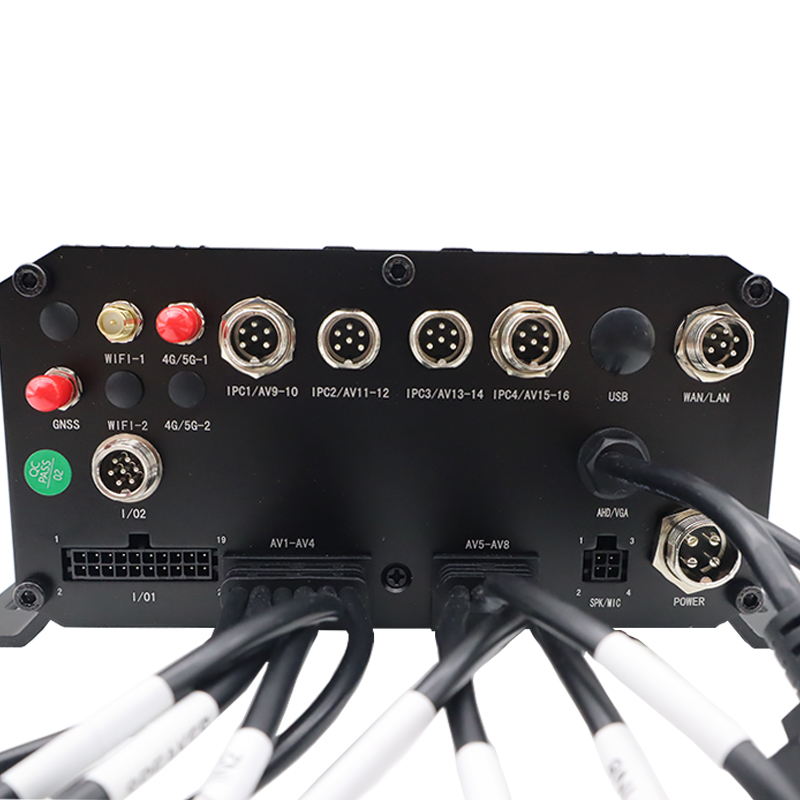

3. Multiple Video Outputs: Supports CVBS, AHD, and VGA video output.

4. Flexible Video Display Settings: Supports horizontal mirroring, vertical mirroring, and 90-degree rotation for analog video input.

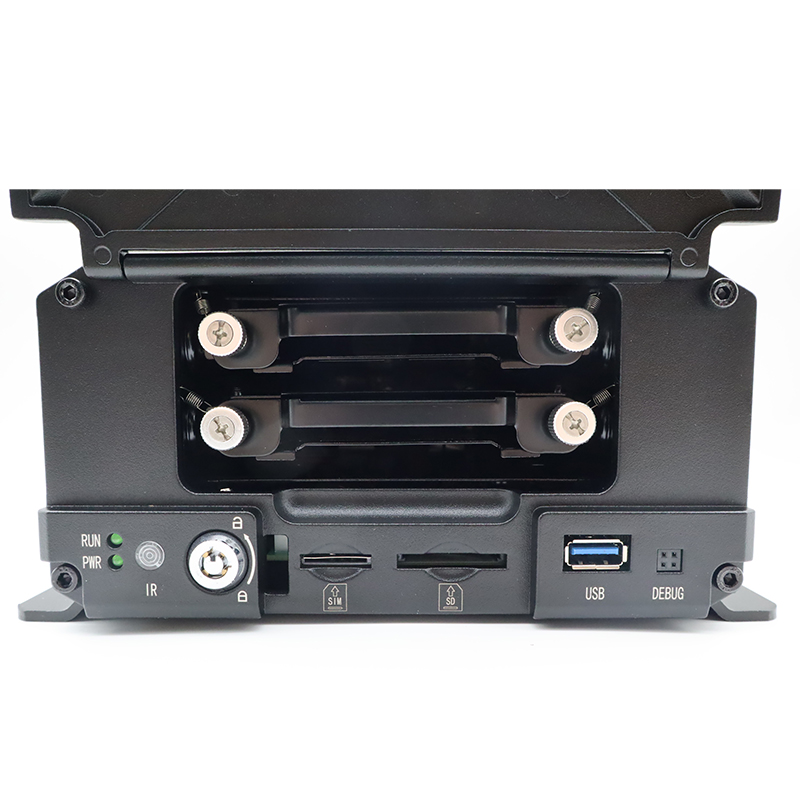

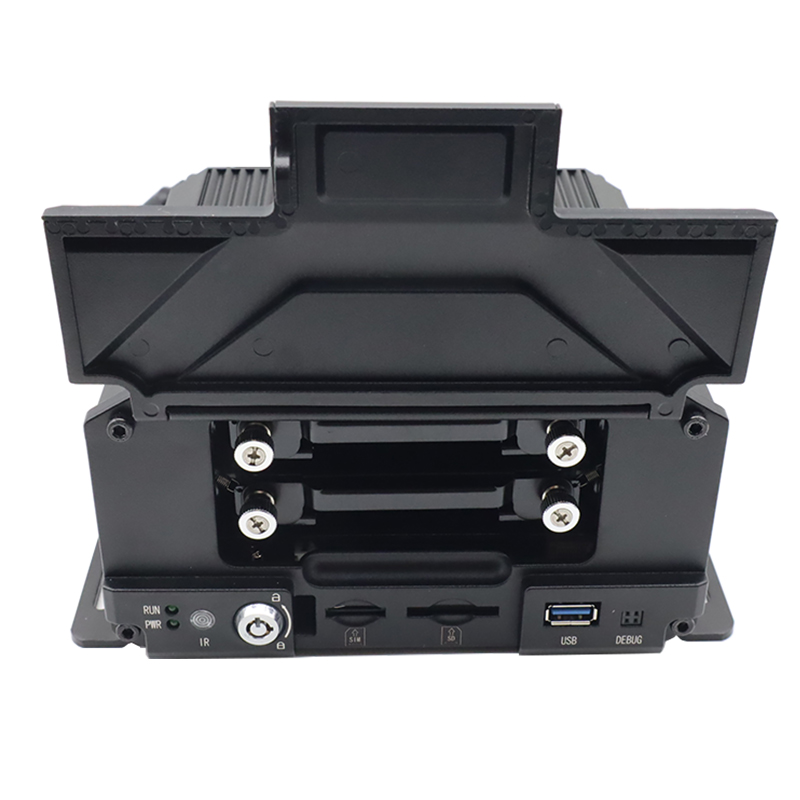

5. Dual HDD Storage Option: Supports two 2.5-inch hard drives with 7mm thickness or one 2.5-inch hard drive with 15mm thickness.

6. SD Card Storage: Supports SD card storage up to 512GB.

7. G-Sensor Monitoring: Built-in G-sensor for monitoring vehicle driving behavior.

Product Parameters

Product Name: 16CH HDD Vehicle DVR

Image Processing Chip: Novatek High-Performance Image Processing Chip

Video Compression: H.264 / H.265

Maximum Video Input Channels: 16 Channels

Supported AHD Input Resolution: 1080P / 720P

Supported Video Input Formats: AHD / TVI / CVI / IPC / Analog

Analog Video Image Adjustment: Horizontal Mirror / Vertical Mirror / 90° Rotation

Video Output: CVBS / AHD / VGA

G-Sensor: Built-in

Reversing Assistance: Reversing Image Ranging Assistance Supported

GPS Function: GPS Drift Suppression Algorithm

Vehicle Power Supply: DC 9–36V

Power Protection: Low-Voltage / Short-Circuit / Reverse-Connection Protection

Power Management: Intelligent Power Management

Ignition-Off Power Saving: Low-Power Consumption Mode and Automatic Shutdown Supported

Data Security: Encrypted File Management

Hard Drive Monitoring: Proprietary Bad-Sector Detection Technology

Power Interruption Protection: Built-in Supercapacitor

Hard Drive Storage: Dual 2.5-Inch HDD, 7mm Thickness

Alternative Hard Drive Storage: Single 2.5-Inch HDD, 15mm Thickness

SD Card Storage: Supported

Maximum SD Card Capacity: 512GB

GNSS Module: Built-in

Supported Satellite Systems: GPS / BeiDou / GLONASS

Cellular Module: 4G / 5G Supported

Wi-Fi Module: Optional

Wi-Fi Frequency: 2.4GHz

Disaster Recovery Interface: Supported

Application Scenarios

• Commercial Vehicle Fleets

Multi-channel vehicle recording for fleet operators that require extensive camera coverage.

• Buses and Coaches

Suitable for vehicle surveillance projects requiring multiple camera inputs and onboard video storage.

• Trucks and Heavy Duty Vehicles

Can be considered for truck surveillance and fleet monitoring systems with multiple camera positions.

• Public Transportation

Suitable for compatible transportation monitoring systems requiring multi-channel recording and GNSS positioning.

• Logistics and Delivery Fleets

Supports onboard video recording and positioning functions for commercial fleet applications.

• Vehicle Surveillance Integrators

A potential solution for system integrators developing multi-camera vehicle monitoring systems.

• MDVR Distributors and Installers

Suitable for vehicle electronics distributors and installers looking for a 16-channel mobile DVR with flexible storage options.

Quqlity Control

1. Video Input Testing

Check the supported camera input formats and channel configuration according to the ordered specification.

2. Video Recording Testing

Verify video encoding and recording functions for the supported H.264/H.265 configuration.

3. Video Output Testing

Check the CVBS, AHD, and VGA outputs as applicable to the selected configuration.

4. Storage Function Testing

Verify hard drive and SD card storage functions according to the supported configuration.

5. GNSS Function Testing

Check the built-in positioning module and supported satellite system configuration.

6. Power Supply Testing

Verify operation within the specified DC 9–36V input range.

7. Power Protection Testing

Check applicable power protection and intelligent power management functions.

8. Data Protection Testing

Verify the relevant file management and supercapacitor protection functions.

9. Connectivity Configuration Testing

Check optional 4G/5G and Wi-Fi functions when these modules are included in the ordered configuration.

Questions and Answers

1. What is a 16-channel mobile DVR used for?

A 16-channel mobile DVR records video from multiple cameras installed in a vehicle, supporting surveillance and fleet monitoring applications.

2. What are the benefits of H.265 in a vehicle DVR?

H.265 is a video compression format that can reduce storage requirements compared with less efficient compression configurations, depending on video settings and content.

3. Can a vehicle DVR support multiple camera types?

This model lists AHD, TVI, CVI, IPC, and analog video inputs. Compatibility depends on the actual input configuration and the camera specifications.

4. Why choose a vehicle DVR with dual HDD storage?

Dual HDD storage can provide greater onboard storage capacity than a single-drive configuration, depending on the selected hard drives.

5. What is GNSS used for in a mobile DVR?

GNSS provides satellite positioning data. This model supports GPS, BeiDou, and GLONASS.

6. Does a 4G/5G mobile DVR automatically support cloud monitoring?

Not necessarily. Cellular connectivity requires compatible hardware, software or platform support, and an appropriate network service.

7. What should buyers confirm before ordering a 16CH vehicle DVR?

Confirm camera input formats, recording resolution, hard drive configuration, SD card capacity, GNSS requirements, optional communication modules, and compatibility with the intended monitoring platform.
