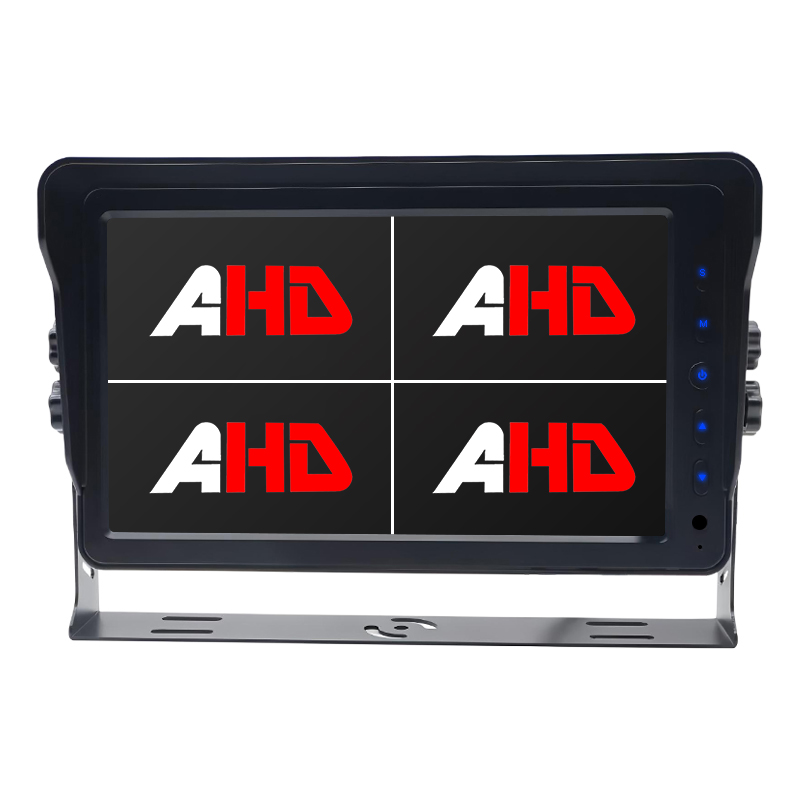

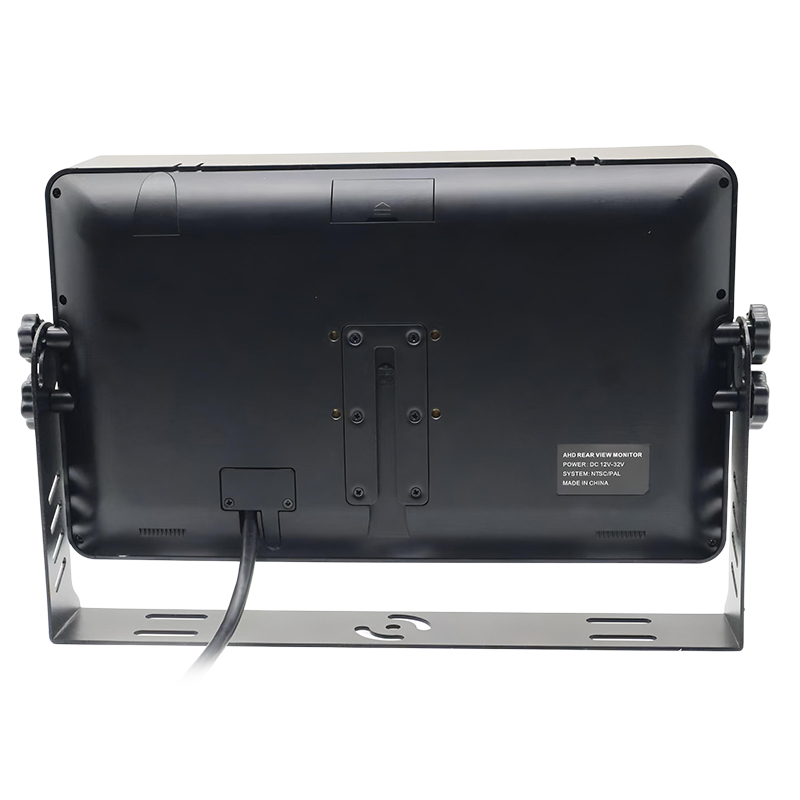

Carleader New 10.1 Inch AHD Quad View Display Heavy Duty Commercial Bus Truck Monitor

Carleader New 10.1 Inch AHD Quad View Display Heavy Duty Commercial Bus Truck Monitor is a new high performance 10.1 inch Quad AHD Monitor designed for reliable and versatile multi-channel video surveillance. Featuring a large digital panel with a resolution of 1024xRGBx600 and a brightness of 550 cd/m², it delivers clear, vibrant images even in challenging lighting conditions.

Equipped with four AHD video inputs (AHD1/AHD2/AHD3/AHD4), each channels with its own trigger wire and AHD2 channel has the trigger priority. It is compatible with both AHD and CVBS cameras, and accepts various video input formats including D1, 720P, 1080P, HD25/30fps, PAL and NTSC auto switch.

This AHD quad monitor with built-in speaker, features with two different audio solutions:

A (default): only one channel with audio function: chose one channel with audio function (other three channels with no audio function) before production, and can not be changed.

B (Optional, extra charge): all four channels with audio function: In quad view display mode: only one channel with audio function (can be switched to other channel on monitor menu); In single display mode: no matter you switch to which channel (CH1/CH2/CH3/CH4), each channel with audio function.

Key Features:

Optional Audio & Built-in Speaker – Each channel supports audio, with configurable volume settings.

Auto Dimming Function (Optional) – Enhances visibility by automatically adjusting screen brightness.

Channel Cycle Display – Allows sequential viewing of all connected channels.

Multi-language OSD & Remote Control – User-friendly interface with multiple language options and remote control capability.

Blue Screen Selection per Channel – Configurable blue screen display for each input.

Wide Voltage Input – Powered by DC 9-32V, suitable for various installation environments.

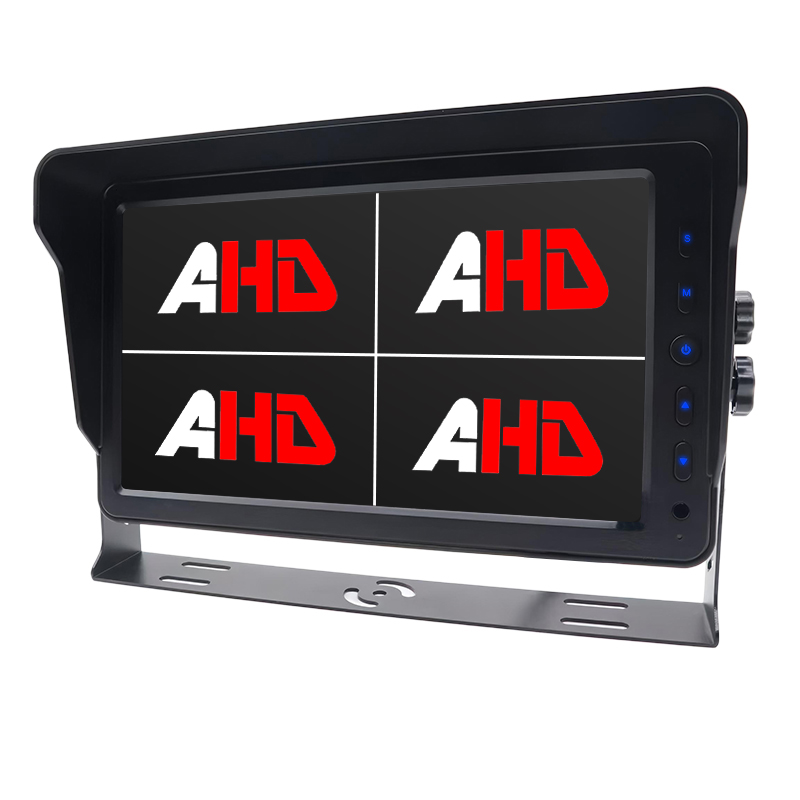

Detachable Sunshade & Mounting Flexibility – Includes a removable sunshade and a default metal U-type bracket (other brackets optional).

Compact & Durable Design:

Dimensions (without sunshade): 26.7 x 15.5 x 2.5cm

Dimensions (with sunshade):  26.7 x 16.5 x 6.5cm

Ideal for vehicle, security, and industrial monitoring applications, Carleader New 10.1 Inch AHD Quad View Display Heavy Duty Commercial Bus Truck Monitor combines robust functionality, clear display quality, and user-configurable options in a compact and durable package.
