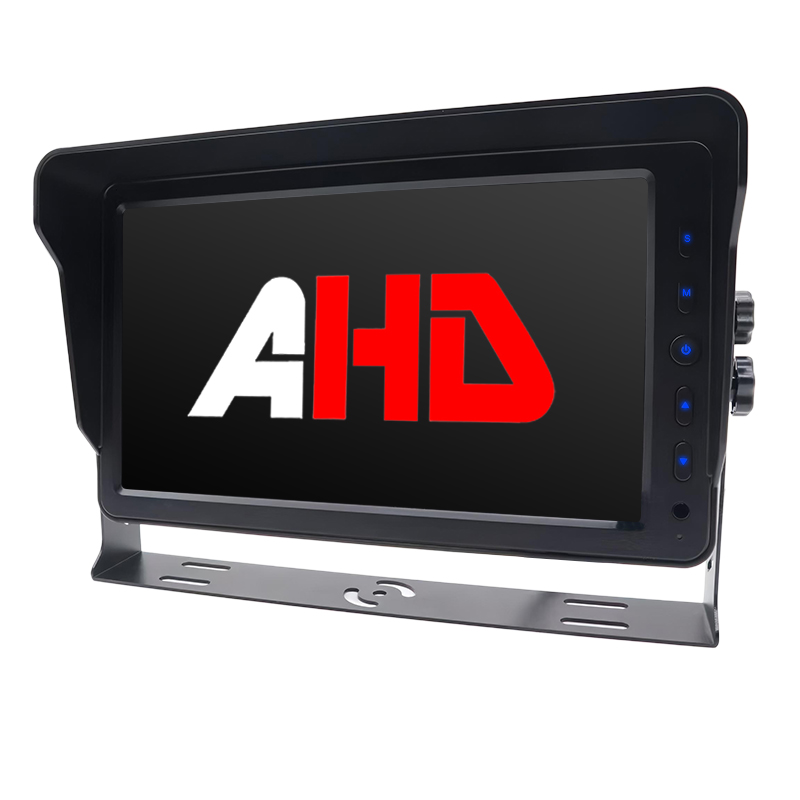

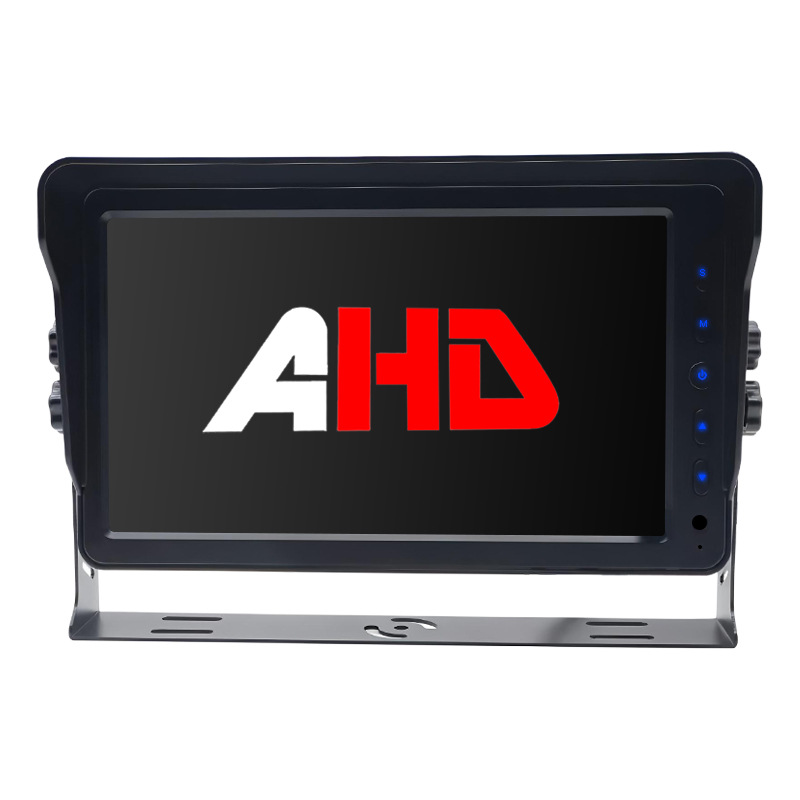

Carleader 10.1 Inch Single View Display Heavy Duty Vehicle AHD Monitor

Carleader New 10.1 Inch Single View Display Heavy Duty Vehicle AHD Monitor is a Car AHD Monitor newly launched by Carleader, which designed to deliver clear, reliable video display for commercial and private vehicle applications. Built with a high-quality digital panel and supporting advanced AHD video inputs, this monitor ensures excellent visibility and ease of use in various driving conditions.

Key Features

10.1″ High-Resolution Display

Features a 10.1-inch digital panel with 16:9 aspect ratio and a resolution of 1024×600 RGB, providing sharp and vibrant visuals.

Dual AHD Video Inputs with Trigger Function

Equipped with two AHD video inputs (AHD1/AHD2) and trigger wires. Automatically switches to AHD2 when reverse gear is engaged, ideal for backup camera systems.

Wide Video Compatibility

Supports multiple video formats including D1, 720P, 1080P, HD25/30fps, and PAL/NTSC systems, ensuring compatibility with various camera setups.

User-Friendly Operation

All buttons come with backlighting for easy operation in low-light conditions. The detachable sunshade reduces glare and improves screen visibility in bright environments.

Adjustable Brightness & Multi-Language OSD

Includes an optional auto-dimming function (CDS) and an On-Screen Display (OSD) with 5 language options. Remote control is also supported for convenient adjustments.

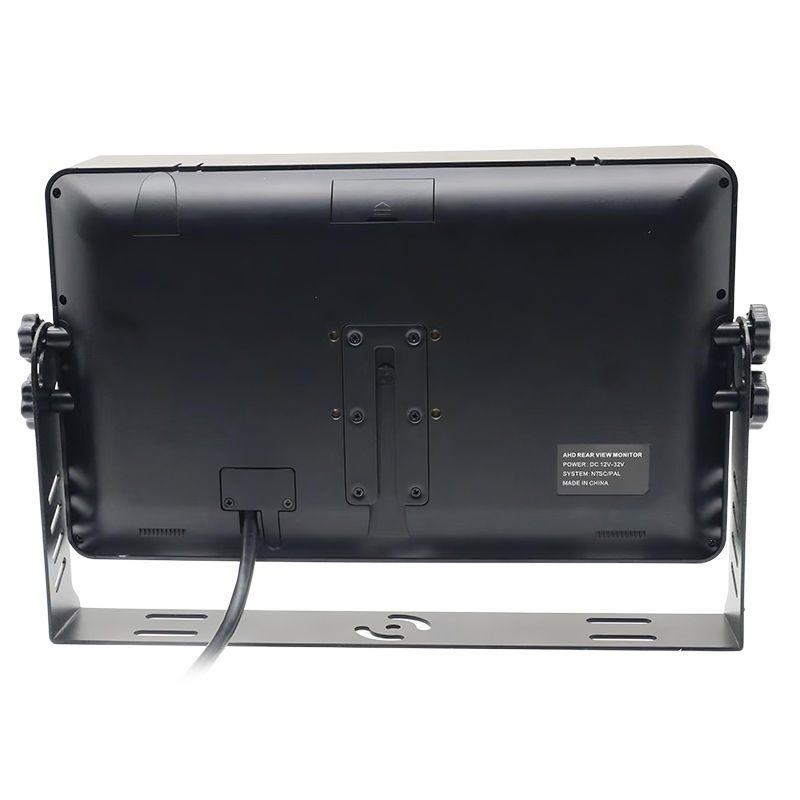

Robust Build & Flexible Mounting

Comes with a metal U-type bracket as standard (other brackets optional). Compact dimensions: 26.7 x 15.5 x 2.5 cm (without sunshade) and 26.7 x 16.5 x 6.5 cm (with sunshade).

Wide Voltage Range

Operates on DC 9V–32V, making it suitable for a broad range of vehicle electrical systems.

Optional Audio Output

Built-in speaker available as an optional feature for audio feedback from camera systems.

Ideal For truck & bus reverse monitoring, fleet management systems, Security vehicle surveillance, RV and caravan rearview assistance, Agricultural and industrial vehicle camera displays.

Carleader 10.1 Inch Single View Display Heavy Duty Vehicle AHD Monitor combines reliability, clarity, and versatility in a compact and durable design, making it an excellent choice for professional and personal vehicle monitoring needs.
