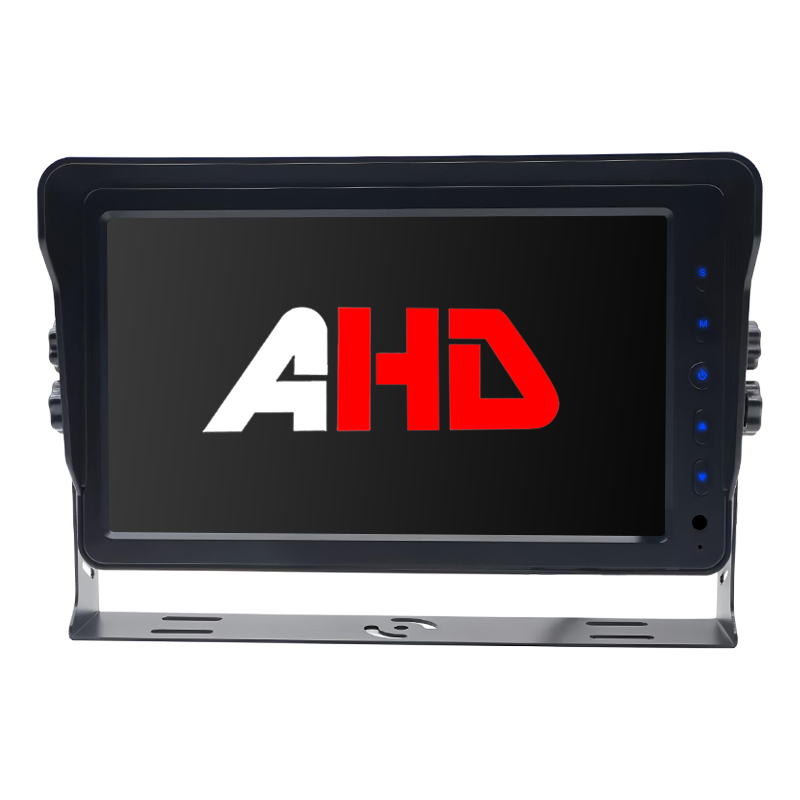

10.1 Inch Single View Display Heavy Duty Vehicle AHD Monitor

10.1 Inch Single View Display Heavy Duty Vehicle AHD Monitor is a new 10.1 inch vehicle surveillance AHD monitor launched by Carleader, which is combined with our AHD camera to perform as a perfect AHD digital monitoring system, especially suitable for trucks, forklifts, excavators...

Model:CL-S1017AHD

Send Inquiry

Product Description

Carleader newly launched 10.1 Inch Single View Display Heavy Duty Vehicle AHD Monitor, Carleader as a professional vehicle camera and monitor manufacturer, you can rest assured to purchase products from our factory and we will offer you the best after-sale service and timely delivery.

Parameter:

10.1 Inch Single View Display Heavy Duty Vehicle AHD Monitor
Model	CL-S1017AHD
Screen Type	10.1 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	550 cd/m2
Contrast	500 : 1
Video Input	Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 2 / 3 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode	CH1 with audio function
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel can be adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel can be adjusted separately (Mirror image as default)
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	26.7 x 15.5 x 2.5 cm (without shade) 26.7 x 16.5 x 6.5 cm (with shade)
