Need a 7-Inch Vehicle Monitor with 4 Camera Inputs and Recording?

Four AHD Inputs Bring Multiple Camera Views Together. Commercial vehicles often require cameras at the front, rear and sides to help drivers monitor areas that are difficult to see directly. Using a multi-channel monitor allows several compatible camera feeds to be connected to one display, reducing the need for separate screens. This Carleader 7-inch AHD quad monitor provides four video inputs, AHD1 through AHD4, and multiple screen display modes. Drivers can view camera images in a layout suited to the vehicle’s monitoring requirements, making it useful for trucks, buses, trailers and other fleet vehicles.

Built-In 720P Recording Adds Video Documentation

Live viewing helps drivers monitor their surroundings, while recorded footage can support later review of vehicle activity and incidents. The monitor includes SD card recording in AVI format at 720P resolution and supports SD cards with capacities up to 256GB. This built-in recording function provides an additional option for vehicle camera installations that require both a display and onboard recording. Buyers should distinguish between the monitor’s supported input resolution and its recording resolution: it accepts compatible D1, 720P and 1080P video signals, while recording is specified at 720P.

Trigger-Based Switching Supports Practical Vehicle Operation

The monitor has an individual trigger wire for each channel. When connected to the appropriate vehicle signals, it can switch camera views in response to trigger activation. The product specification identifies AHD2 as the priority channel. This function can be useful in installations where drivers need a particular camera view to appear when a vehicle signal is activated. Before ordering, installers should confirm the trigger wiring and switching logic required for the intended vehicle.

Designed for 12V and 24V Commercial Vehicles

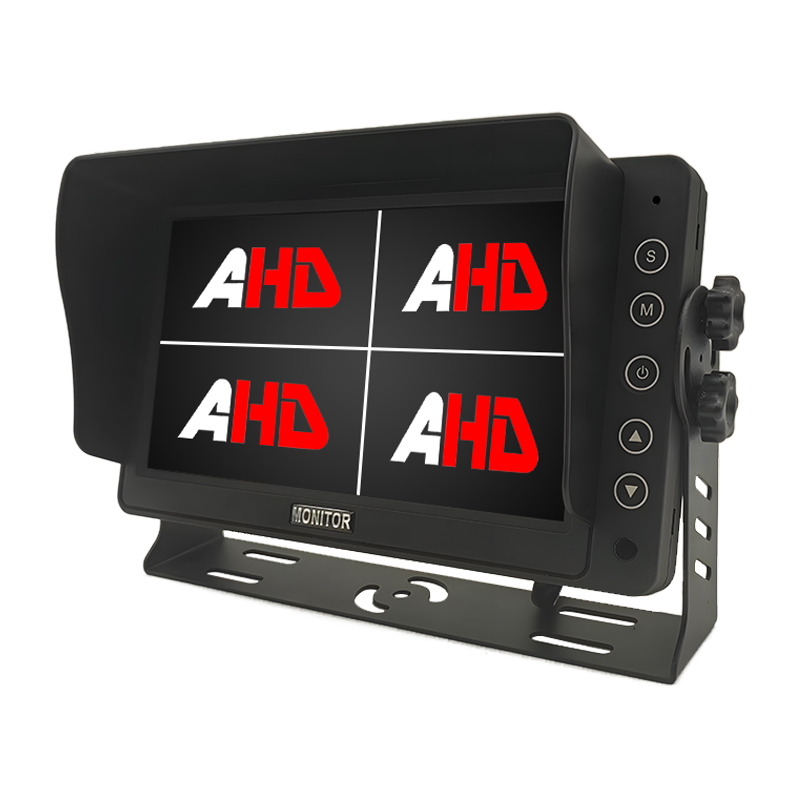

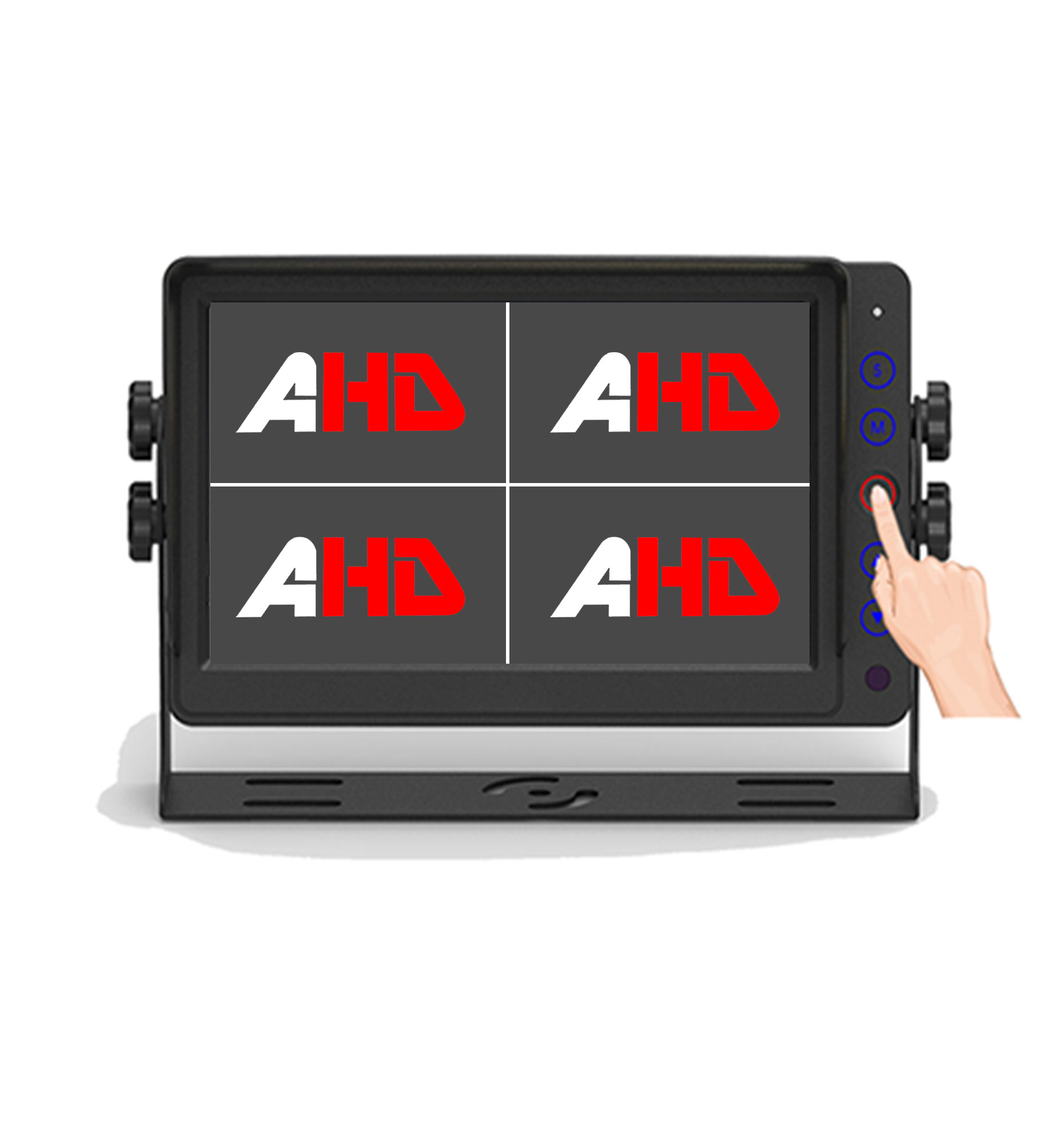

With a DC 9–32V power input, the monitor can be used in compatible vehicle electrical systems commonly found in 12V and 24V vehicles. Automatic dimming helps adjust display brightness to changing ambient light, while five backlit buttons and remote control support convenient operation. The detachable sunshade and standard metal U-type mounting bracket provide practical installation options. An optional stand bracket is also available for projects requiring a different mounting arrangement.

The 7 Inch Vehicle Monitor with 4 AHD Inputs and 720P Recording is suitable for compatible multi-camera installations in several sectors:

• Trucks and trailers: Displaying front, rear and side camera views.Buses and coaches: Combining multiple camera feeds on one screen.
• Commercial fleets: Supporting live camera monitoring and onboard video recording.
• Construction and industrial vehicles: Providing camera visibility for vehicle operation in demanding work areas.
• Vehicle electronics distributors: Supplying multi-channel monitors for aftermarket camera systems.
• System integrators and OEMs: Building vehicle monitoring packages around specific camera and recording requirements.

Key Details to Confirm Before Purchasing

For distributors and professional installers, the right monitor depends on the camera configuration and recording requirements. Before placing an order, confirm the number of cameras, supported video signals, required screen layout, SD card capacity and trigger-switching behavior. It is also important to confirm that the intended camera feeds are compatible with the monitor. If a project requires continuous recording, buyers should clarify the desired recording duration and storage needs, as actual recording time depends on the selected SD card and system settings.

The 7 Inch Vehicle Monitor with 4 AHD Inputs and 720P Recording combines four-channel camera viewing, multiple display modes and onboard SD card recording in one vehicle monitor. Its broad input compatibility, trigger-based switching and DC 9–32V power supply make it a practical option for compatible commercial vehicle monitoring projects. For fleet operators, distributors and system integrators, confirming camera compatibility and recording requirements helps ensure the selected configuration meets the needs of the application.
