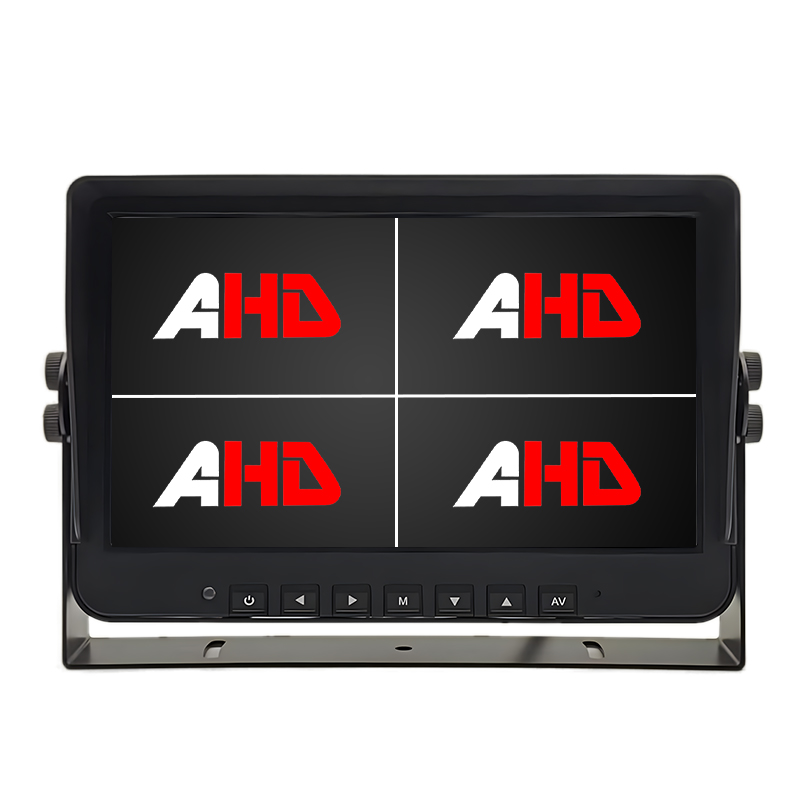

10.1 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor

Carleader 10.1 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor, 4 AHD video inputs with 4 trigger wires, AHD 1024x600 resolution, suitable for trucks, buses, vans, RVs, etc. Welcome to ask and inquiry.

Model:CL-S1020AHD-Q

Send Inquiry

Product Description

Carleader 10.1 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor provide high definition and real-time performance, greatly improves the safety and convenience of reversing operations, becoming an indispensable safety auxiliary tool for drivers.

This AHD quad monitor with built-in speaker, features with two different audio solutions:

A (default): only one channel with audio function: chose one channel with audio function (other three channels with no audio function) before production, and can not be changed.

B (Optional, extra charge): all four channels with audio function: In quad view display mode: only one channel with audio function (can be switched to other channel on monitor menu); In single display mode: no matter you switch to which channel (CH1/CH2/CH3/CH4), each channel with audio function.

Product Parameter:

10.1 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor
Model	CL-S1020AHD-Q
Screen Type	10.1 inch IPS LCD panel
Aspect Ratio	16 : 9
Resolution	1024 x 600 (RGB)
Brightness	550 cd/m2
Contrast	500 : 1
Video Input	Support 4CH AHD 1080P/720P/CVBS inputs Mixed Video Signal Input available With 4 x trigger wires, CH2 has trigger priority
Speaker	Optional (Without as default)
Audio Mode (If with speaker)	Two audio mode for optional: A. AHD1 with audio function (default) B. All 4 channels with audio function (optional): 1. In Split Display Mode, only one channel with audio, can be set in menu 2. In Single Display Mode, each channel with audio.
Auto Dimming	Optional (Without as default)
Remote Control	Yes, Package include 1x remote
OSD Menu	Image Setting, Image mirrored, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset
Parking Guide Line	Each channel can be adjusted separately, activated when trigger the trigger wire (Off as default)
Mirror / Normal Image	Each channel can be adjusted separately (Mirror image as default)
Button Type	Click buttons, each button with backlight
Power Supply	DC 9~32V
Connection Plug (Connector)	4PIN aviation connector as default, customized to RCA connector available
Operating Temperature	-20°C~+70°C (RH0%-RH90%)
Storage Temperature	-30°C~+80°C (RH0%-RH90%)
Warranty	2 Years
Dimension	25 x 16.5 x 3.0 cm (without shade) 25.5 x 17 x 6.5 cm (with shade)
