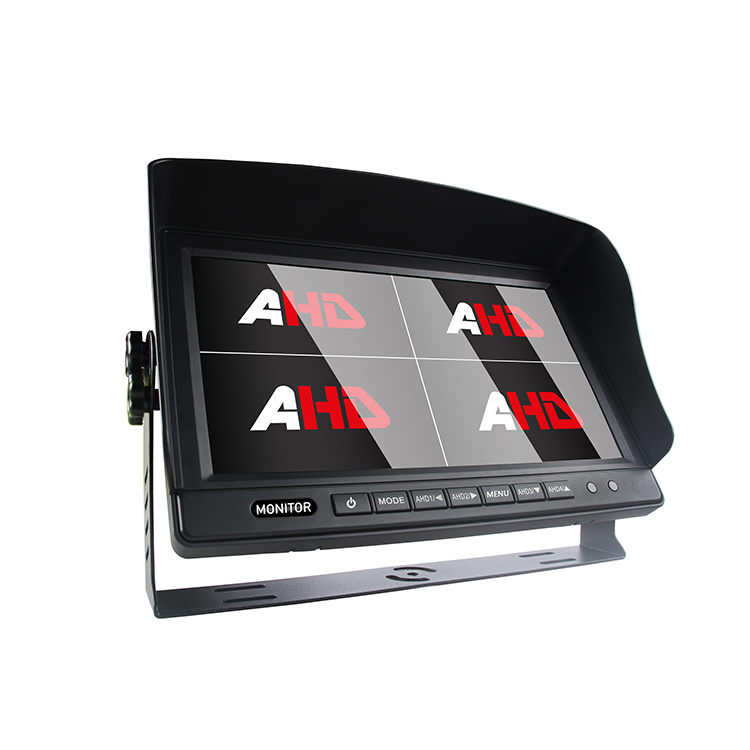

10.1 Inch 4CH AHD Inputs Quad View Vehicle Monitor

Carleader 10.1 Inch 4CH AHD Inputs Quad View Vehicle Monitor, a high performance 10.1 Quad AHD Monitor which is designed for commercial vehicle and heavy duty vehicle, like truck, bus, RV, trailer, forklift, agricultural machinery, construction machinery, etc. Monitor features with 4CH AHD signal inputs which are compatible with CVBS / AHD 720P / AHD 1080P. PAL / NTSC system auto switch.

Parameter:

10'' large digital panel

Resolution: 1024xRGBx600

Brightness :550 cd/m2

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire.AHD2 has priority

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

AHD1 with audio (Default)

4 channel with audio (Optional)

All buttons with backlights.

Built-in speaker optional

Auto dimming function optional

8 languages multi-function OSD setting, remote control

Each channel has audio function, audio can be  selected by setting

Each channel has blue screen, blue screen can be selected by setting

Power supply: DC 9-32V

Detachable sunshade

Metal U type bracket default, bracket is optional

Dimension: 25.5 x 15.5 x 3.0cm ( without shade)

                   27.5 x 18.5 x 7.6cm (with shade)
