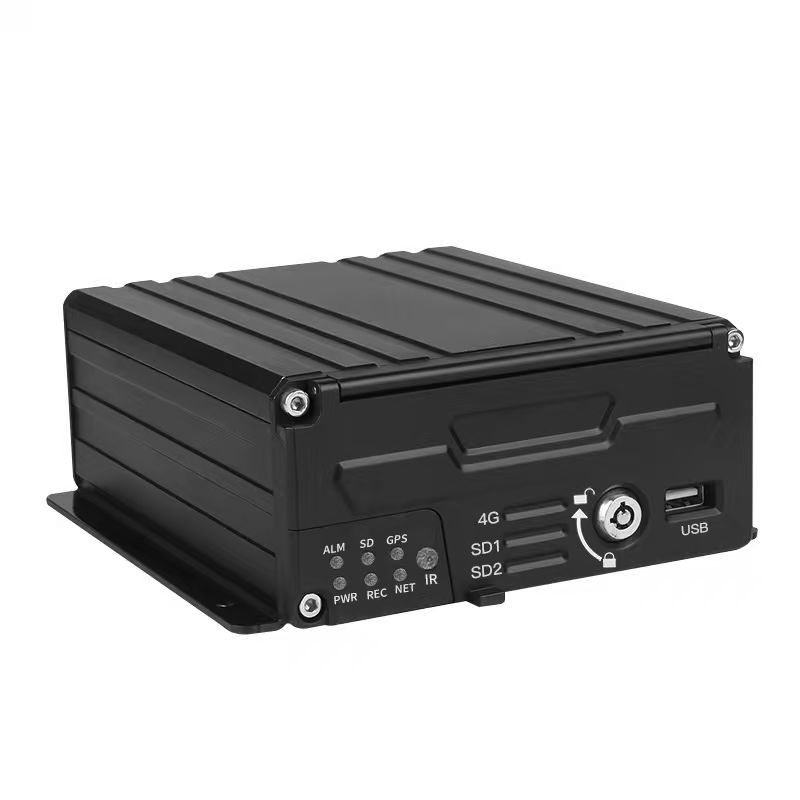

10.1 inch 7CH Wireless HDD Mobile NVR System

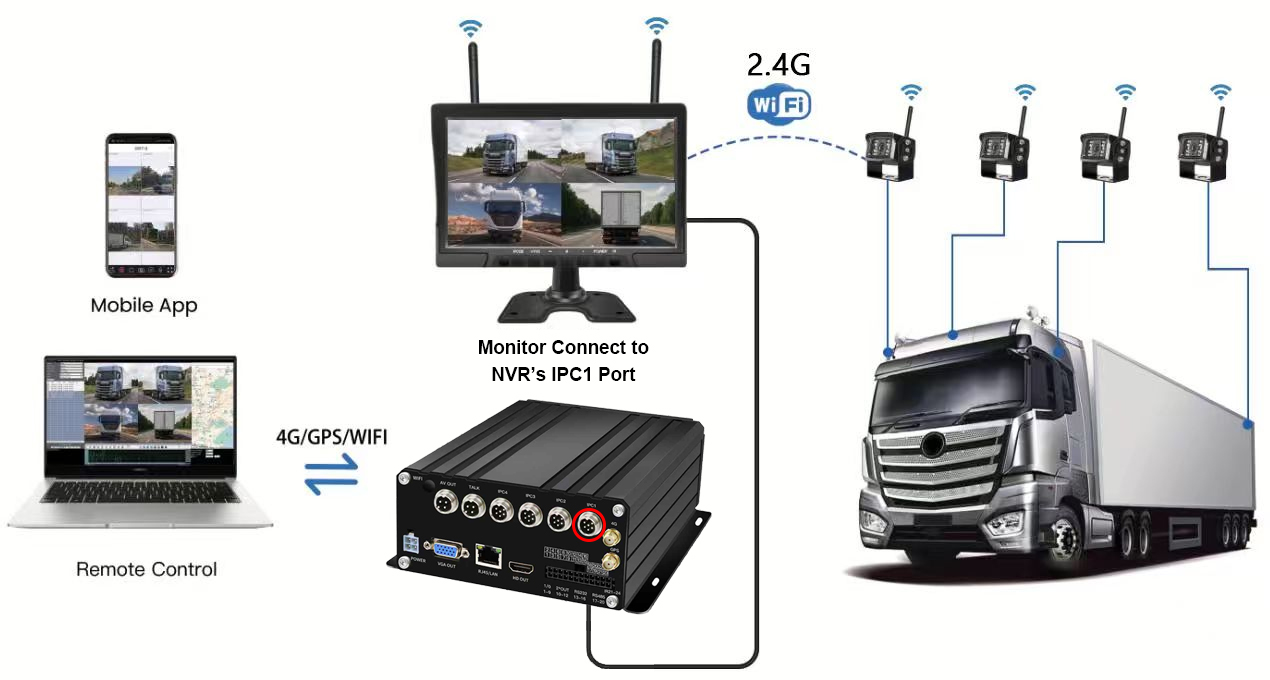

Carleader 10.1 inch 7CH Wireless HDD Mobile NVR System, a cutting edge mobile wireless NVR system which is designed for fleet management. System use 4pcs wireless IP cameras pairing with a 10.1 inch wireelss relay monitor via 2.4GHz signal, then connect the relay montior and NVR IPC port via 6PIN aviation connector, also support extra 3CH wired IP camera inputs.

Parameter:

Wireless MNVR System

4Pcs WIRELESS IP CAMERA pairing with a 10.1 inch wireless relay monitor.

3CH Wired IP camera inputs

Relay monitor connect to NVR IPC port via 6PIN aviation connector

Support 4G+GPS+WIFI IP MNVR (WIFI Optional)

1-CH HDMI output + 1-CH VGA output + 1-CH CVBS output

Support 2.5inch HDD/SSD Storage, Support Max 2TB disk

Support Dual SD Card Storage, Up to 512G

SupportH264 / H.265 dual streaming serve

Support ONVIF / RTSP protocol

Automatic image focus mode

Automatic backlight compensation mode

Automatic wide dynamic compensation mode

3D dynamic noise reduction mode

IR night vision patterns for day and night

10. 1inch wireless 2.4GHz monitor

Camera IP67 class rugged waterproof housing

Infrared Led 18pcs, infrared distance up to 12-15 meters

Fixed lens 2.8mm

Support IOS/Android/PC/web Remote View (Use CMSV7)

NVR Dimension: 205 * 160 * 65 mm
