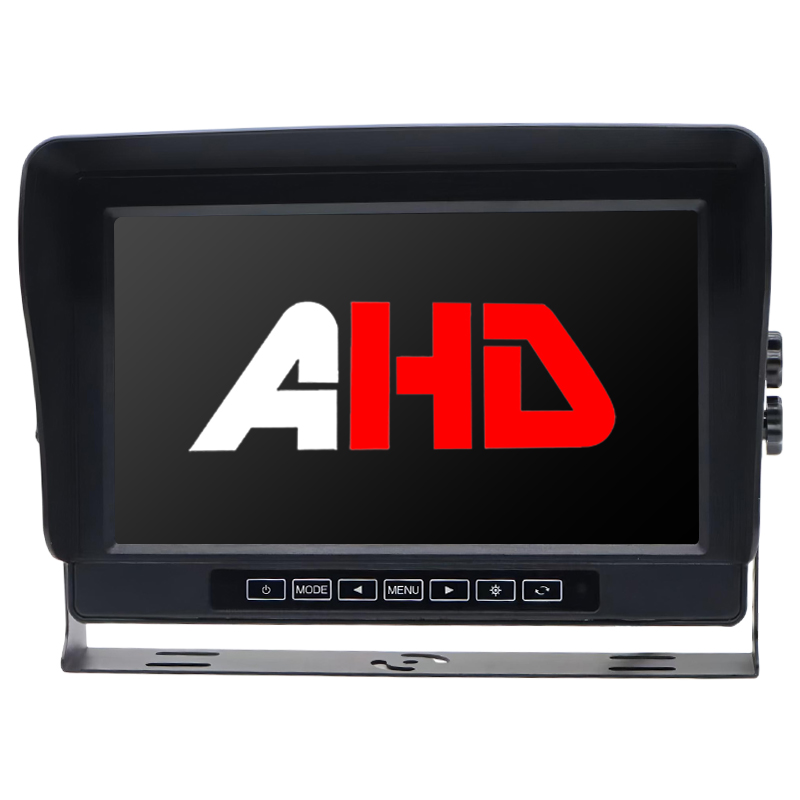

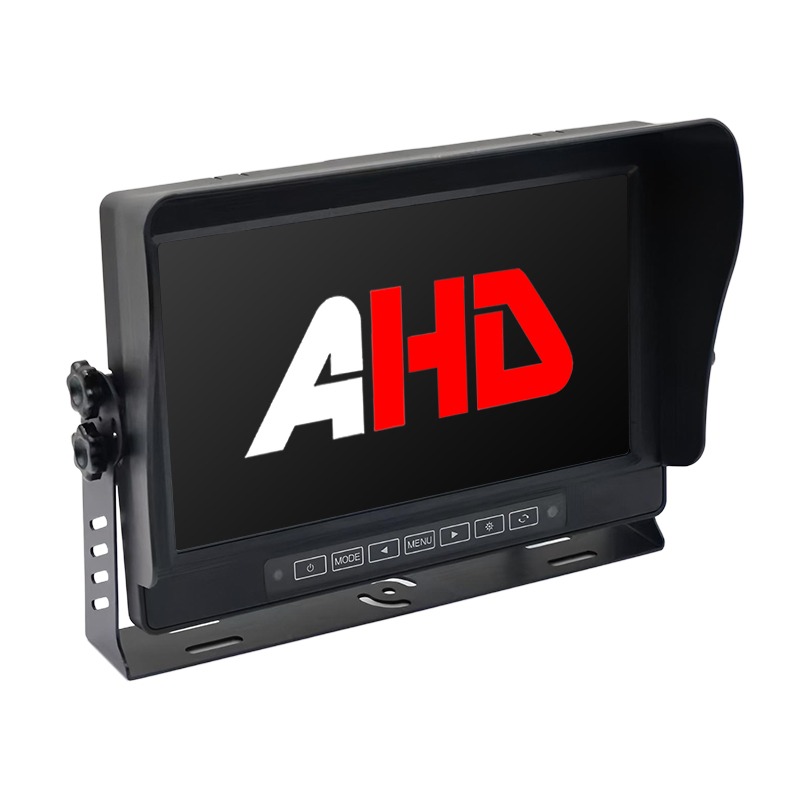

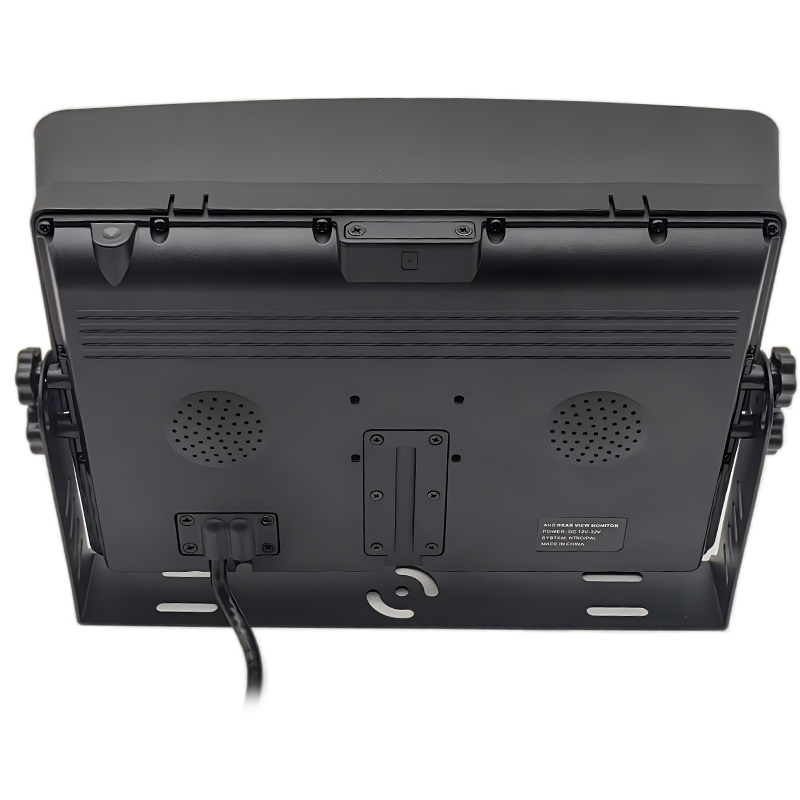

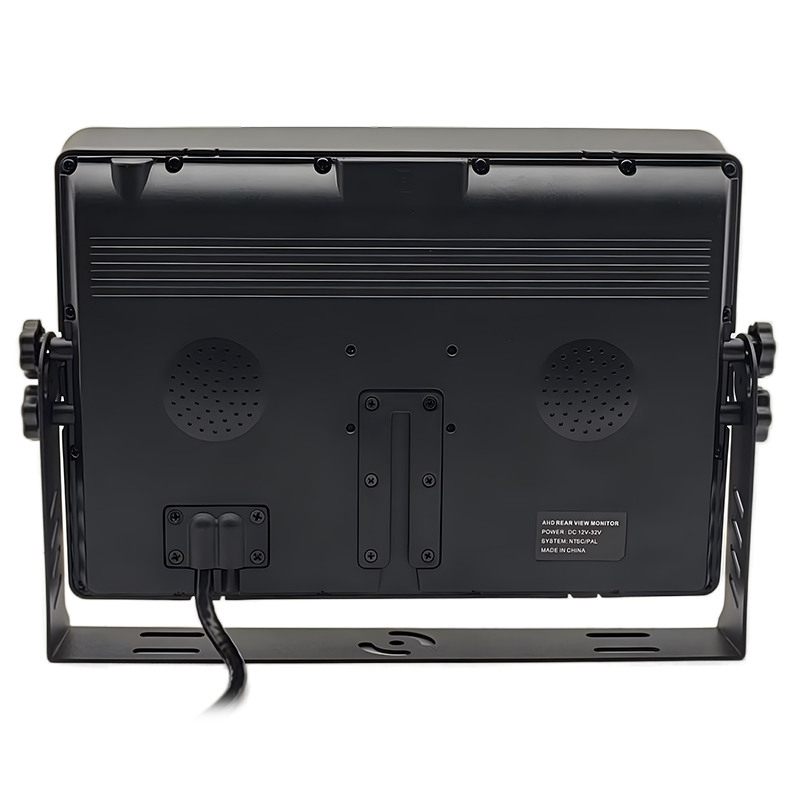

10.1 Inch IP69K Waterproof 2CH AHD Inputs Touch Buttons Vehicle Monitor

Carleader 10.1 Inch IP69K Waterproof 2CH AHD Inputs Touch Buttons Vehicle Monitor made with aluminum alloy housing, IP69K waterproof and touch buttons design can make sure to operate the monitor well in harsh environment condition. 16:9 ratio and 1024 x 600 resolution, offer a clear view of vehicle's surrounding environment. 2CH AHD signal inputs with trigger wire, AHD inputs compatible with CVBS / AHD 720P / AHD 1080P cameras, NTSC / PAL auto swtich.

Parameter:

10.1 inch digital Innolux panel

Metal housing design. anti-corrosion. anti-rust

Resolution:1024x600

Aluminum alloy housing with touch button design

2 AHD video input(AHD1/AHD2).3AHD input optional

1 Trigger wire for AHD2, auto switchable AHD2 when trigger reverse cable

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Brightness: 550 cd/m2

Compatible with AHD/CVBS camera

All buttons with backlights.

Built-in speaker optional

Power supply: DC 9~32 V

Supply removable sun visor

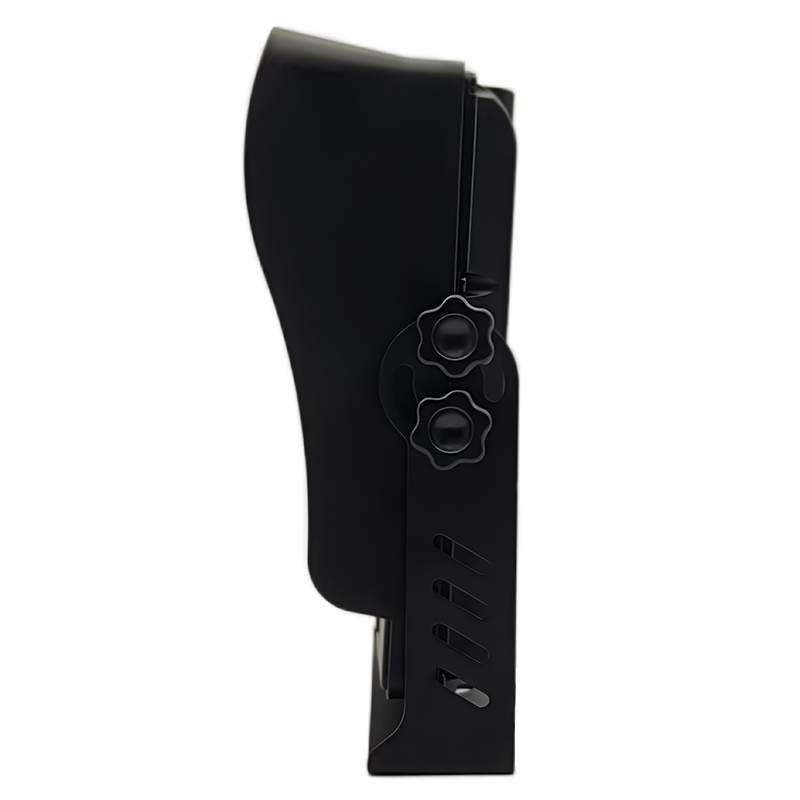

Standard"U" bracket. Fan feet bracket is optional

Waterproof level: IP69K

Dimension: 26.3 x 18.5 x 3.3cm ( without shade)

                 26.3 x 18.5 x 7.8cm (with shade)
