10.1 Inch IP69K Waterproof 4CH AHD Inputs Quad Display Touch Buttons Vehicle Monitor

Carleader is a professional heavy duty vehicle safety monitoring system manufacturer, Carleader 10.1 Inch IP69K Waterproof 4CH AHD Inputs Quad Display Touch Buttons Vehicle Monitor made with aluminum alloy housing, IP69K waterproof allow this monitor work in any harsh environment condition. Welcome to ask for more details.
Model:CL-S1018AHD-Q

Send Inquiry

Product Description

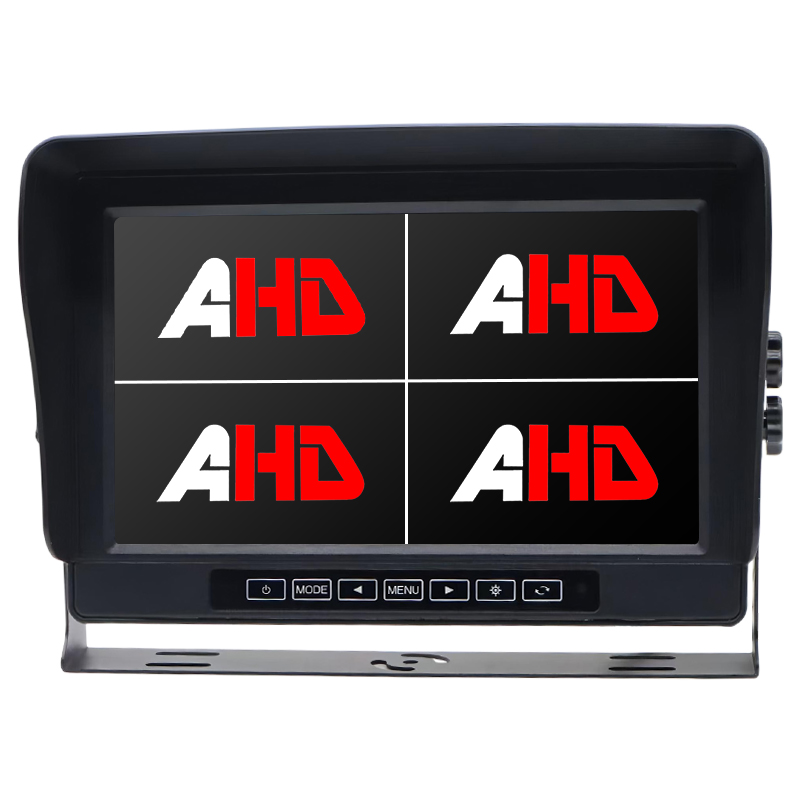

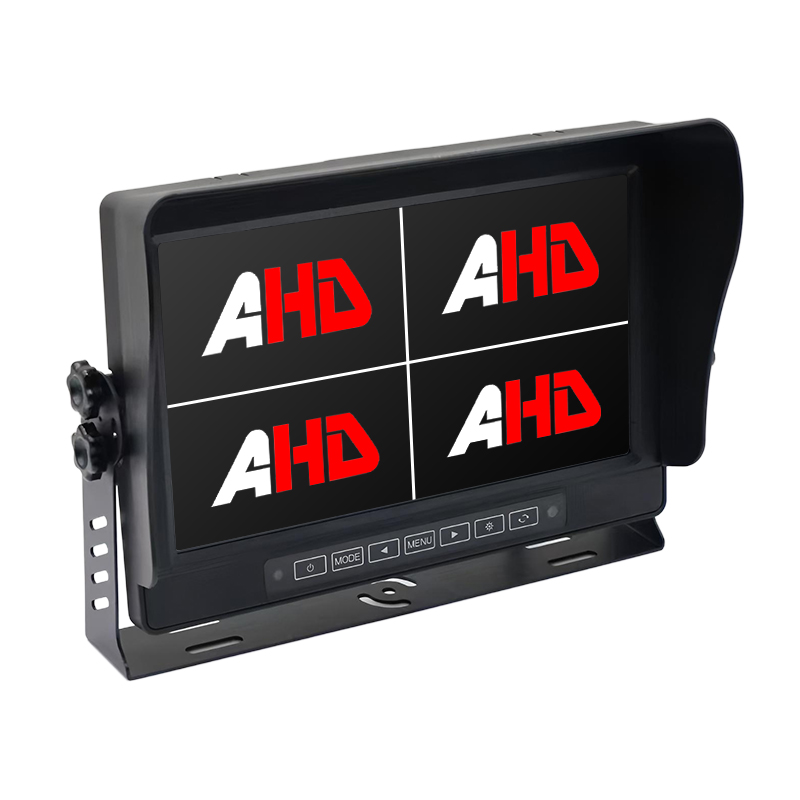

Carleader 10.1 Inch IP69K Waterproof 4CH AHD Inputs Quad Display Touch Buttons Vehicle Monitor made with aluminum alloy housing, IP69K waterproof and touch buttons design can make sure to operate the monitor well in harsh environment condition. 16:9 ratio and 1024 x 600 resolution, offer a clear view of vehicle's surrounding environment. 4CH AHD signal inputs with trigger wires, AHD inputs compatible with CVBS / AHD 720P / AHD 1080P cameras, NTSC / PAL auto switch.


Parameter:


10.1 inch big digital panel

Resolution: 1024xRGBx600

Brightness: 550 cd/m2

4 AHD video inputs (AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire. AHD2 has priority

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

AHD1 with audio (Default)

4 channel with audio (Optional)

Features with touch buttons

Built-in speaker optional

Each channel has audio function, audio can be selected by setting

Each channel has blue screen, blue screen can be selected by setting

Waterproof Rating: IP69K

Power supply: DC 9-32V

Detachable sunshade

Metal U type bracket default, bracket is optional

Dimension: 25.5 x 16.7 x 3.0cm( without shade)

                 27.5 x 18.4 x 7.8cm (with shade)
