Vehicle Monitor & Camera Manufacturer New Products

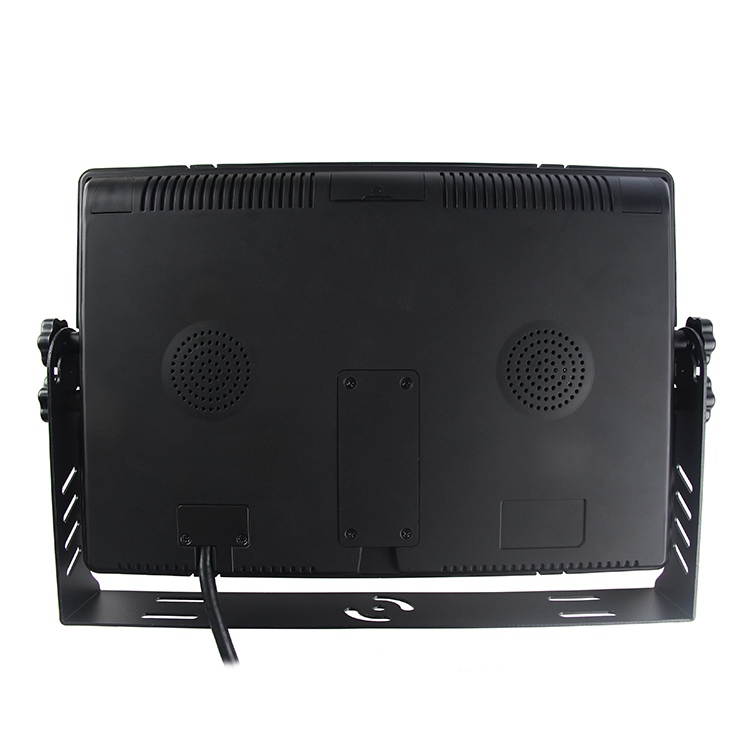

10.1 inch quarter split in car digital HD display
CL-S960AHD-Q is a 10.1 inch quarter split in car digital HD display, which supports up to 1080P, supports multiple display modes, touch keys and infrared remote control, image inversion, original image mirroring, adjustable brightness, contrast and color saturation, and supports multiple languages. Carleader specializes in producing electronic displays and cameras for 10 years. Welcome to cooperate.
Model:CL-S1019AHD-Q
Send Inquiry
Product Description
This is the detailed introduction of 10.1 inch quarter split in car digital HD display, from which you can know the parameters of this product. If you have any questions, please feel free to contact us, and we will answer you as soon as possible.
10.1 inch quarter split in car digital HD display Main features
AHD quad monitor system
NEW TFT 10.1" panel , 16 : 9 image
Resolution : 1024x RGB x 600
Brightness : 400 cd/m2
4 video inputs ( 4 PIN aviation connector)
Single /Split /Quad view selectable
Auto-compatible with CVBS/AHD camera(108OP/7 20P/D1)
PAL/NTSC adjustable
Each channel has trigger wire
Trigger priority: CAM 2>CAM 1>CAM 3>CAM4
High-low voltage protection & short circuit protection
view angle:L/R:70,UP:50,down:70 degree
Built-in speaker (optional)
Power requirement: DC 9~32 v
Detachable sunshade
Metal U type bracket
| Screen size | 10.1'' |
|
Resolution |
1024*RGB*600 |
|
Input interface |
4HAD(pin) |
|
AHD camera |
Max 1080P |
|
Trigger wire |
4 |
|
Trigger priority |
AHD2 |
|
Touch button |
NO |
|
Button with lamp |
NO |
|
PAL/NTSC system |
YES |
|
Compatible camera |
AHD/CMOS/CCD |
| Screen ratio | 16:9 |
| Power Volt. | DC 9V-32V |
Hot Tags: 10.1 inch quarter split in car digital HD display, Manufacturer, Supplier, Buy, Customized, China, Cheap, Low Price, CE, Quality, Advanced, Newest, Durable, Classy
