10.1 Waterproof Quad View Display Video Recording AHD Monitor

Carleader 10.1 Waterproof Quad View Display Video Recording AHD Monitor, supports simultaneous display of four CVBS/AHD cameras input with 4CH trigger wires, AHD2 has trigger priority. Monitor with IP69K waterproof housing. Equipped with SD Card Slot, support loop recording for all 4 channels. Please feel free to contact us to ask and order, if you are interested.

This AHD quad monitor with built-in speaker, features with two different audio solutions:

A (default): only one channel with audio function: chose one channel with audio function (other three channels with no audio function) before production, and can not be changed.

B (Optional, extra charge): all four channels with audio function: In quad view display mode: only one channel with audio function (can be switched to other channel on monitor menu); In single display mode: no matter you switch to which channel (CH1/CH2/CH3/CH4), each channel with audio function.

Features:

* 10.1" digital panel with 16:9 image ratio, 1024 x 600 (RGB) resolution.

* 4CH quad split display AHD signal inputs.

* Video format available for AHD 720P/1080P,  compatible for CVBS camera.

* 4CH trigger wires inputs, CH2 has trigger priority, with trigger delay function to be adjust in menu.

* Built-in High quality audio speaker.

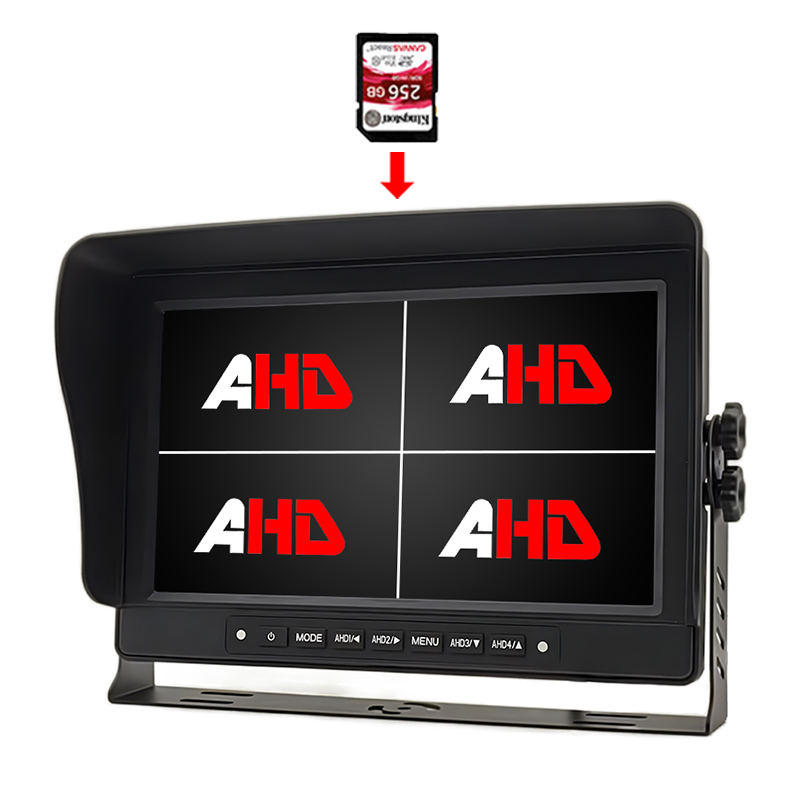

* Equipped with SD Card Slot, support loop recording, available for SD Card with Maximum 256GB. (Package does not include SD card)

* Full function remote control (Pack with 1x remote in the box)

* Auto Dimming function optional (Without auto dimming as default), support to adjust the screen brightness automatically base on the surrounding light intensity.

* IP69K waterproof level, work perfectly in any harsh environment.

* Multiple menu language selectable.

* Wide working voltage: 9~32V

Parameter:
