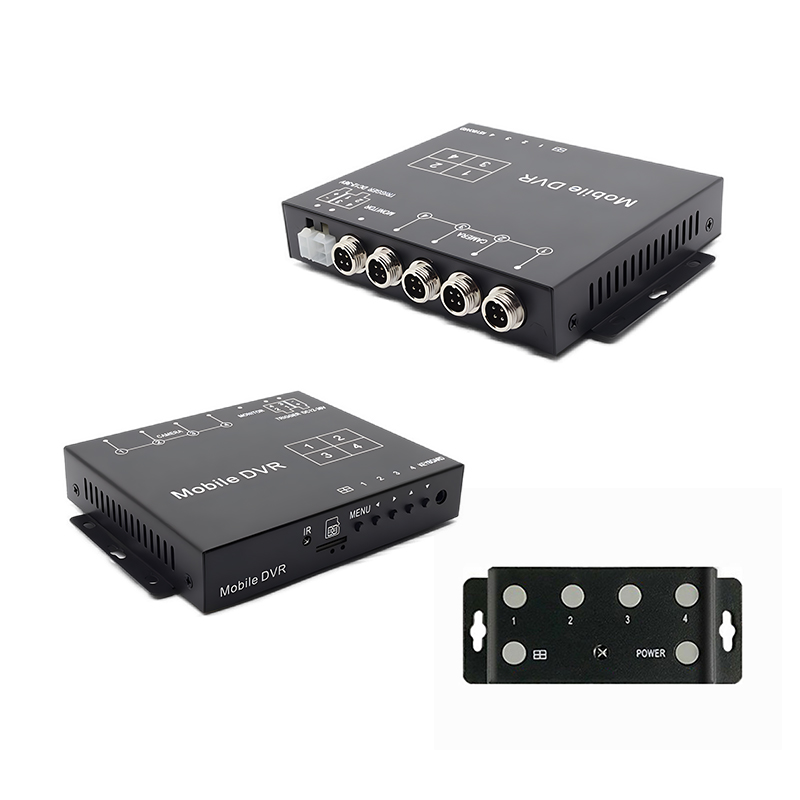

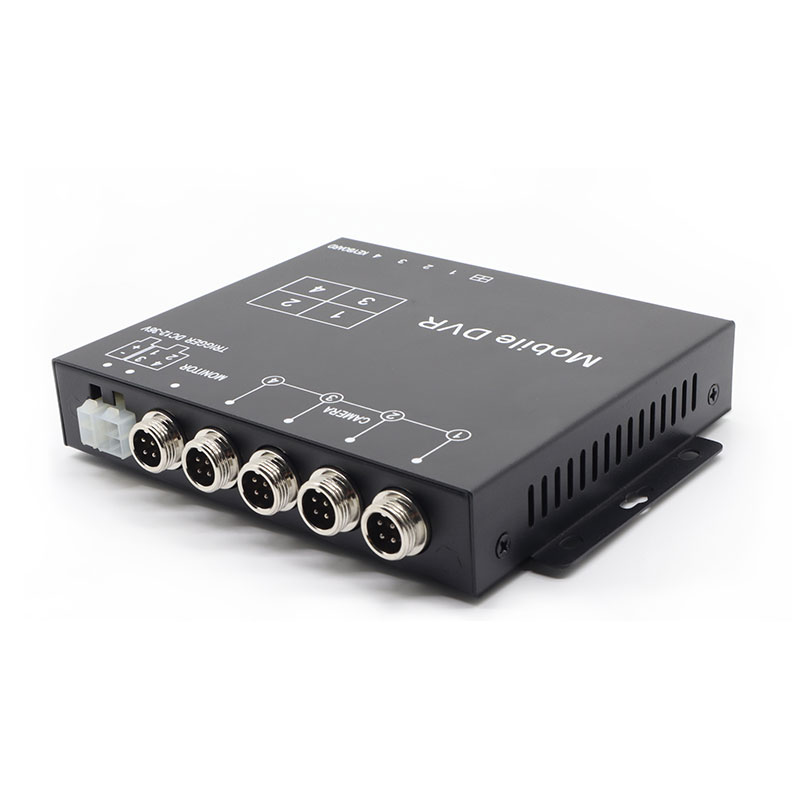

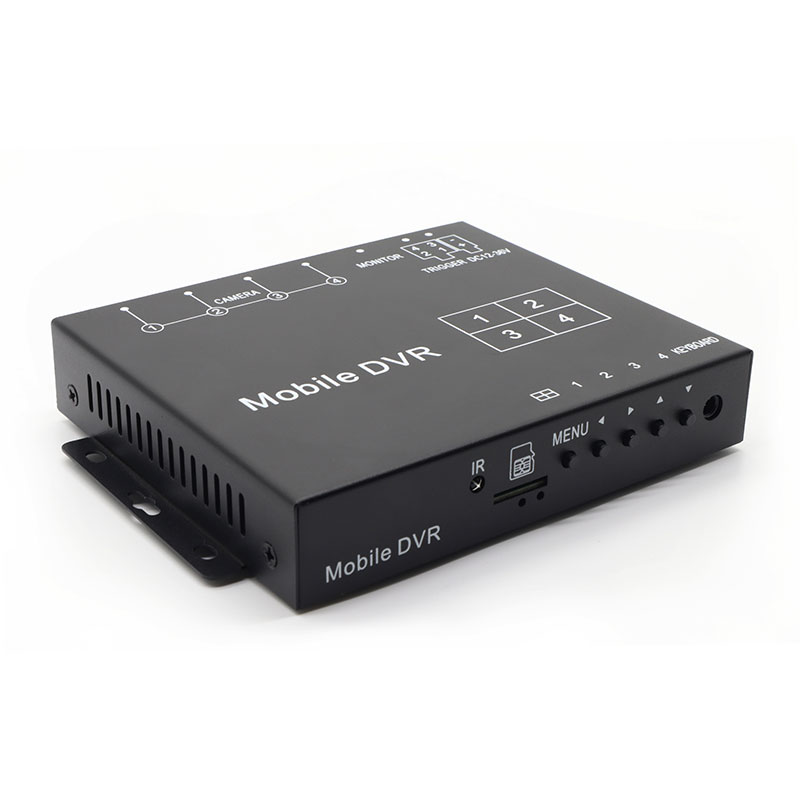

1080P AHD Quad Split Display Video Processor Support Video Recording

Upgrade your vehicle surveillance with Carleader 1080P AHD Quad Split Display Video Processor Support Video Recording. This all-in-one solution combines a 4-channel video splitter and DVR, supporting 1080P/720P cameras and 512GB recording. 1080P AHD Quad Split Control Box With Recording Function is a complete 4-camera vehicle surveillance system, offering both live monitoring and crucial recording capabilities for security and evidence purposes.

Features:

Support 4CH 1080P/720P/D1 camera input and automatically segment the image

1080P AHD Quad Split Control Box With Recording Function support MAX 512G TF card stroage.

CVBS/AHD1080P Output Optional (Aviation head). AHD1080P output backward compatibility(720P/1080P 25/30fps)

Can be adjusted independently for brightness, Contrast, saturation, hue and sharpness of each channel

4CH camera can be triggered separately and displayed in full screen automatically

The video output can be set TOP/Bottom/Left and Right deflate

Output power to cameras and monitor (12V)

Each image normal/mirror function can be set separately

Box working voltage :9V-32V

High and low voltage and overload protection

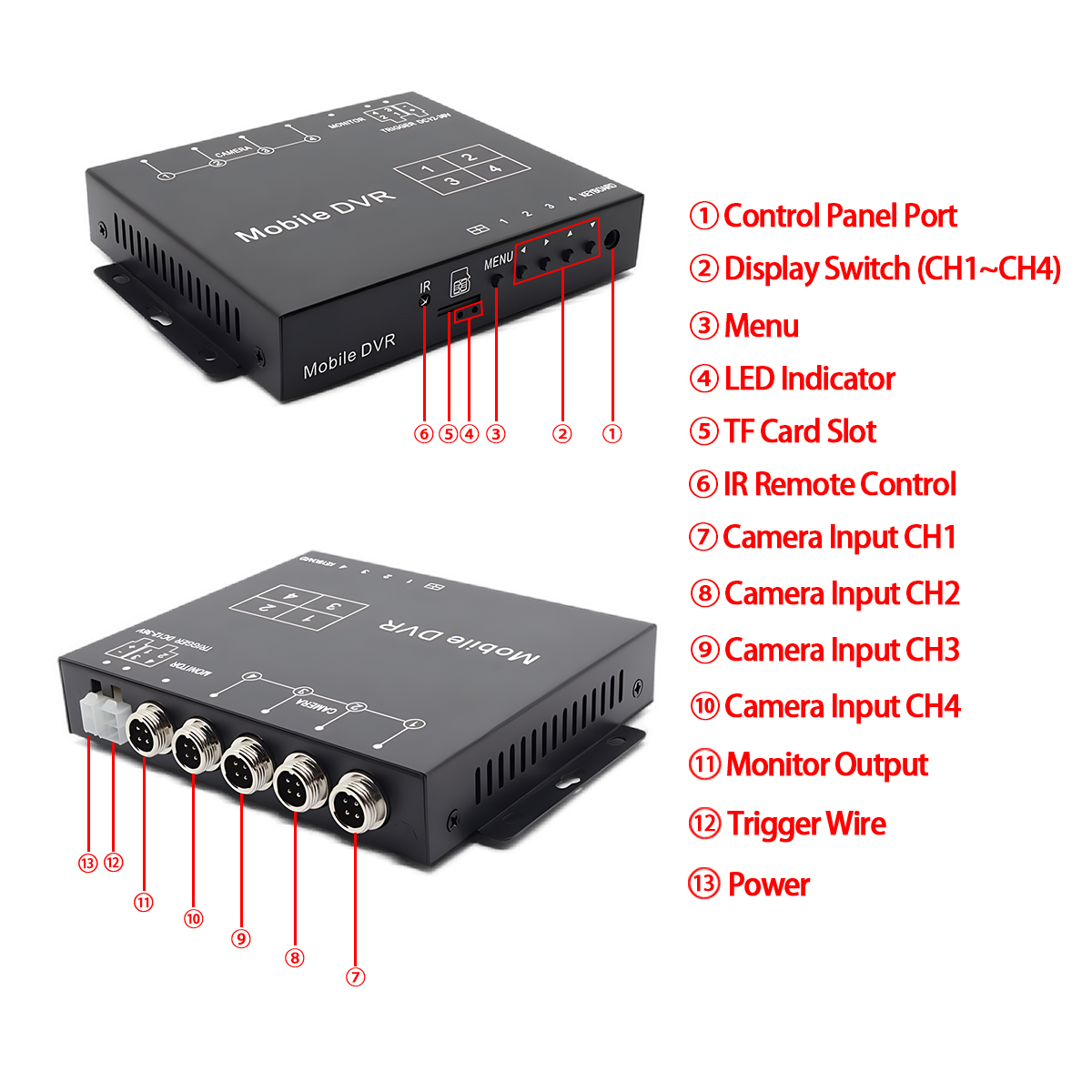

Video output connector: 4PIN aviation

Support audio output

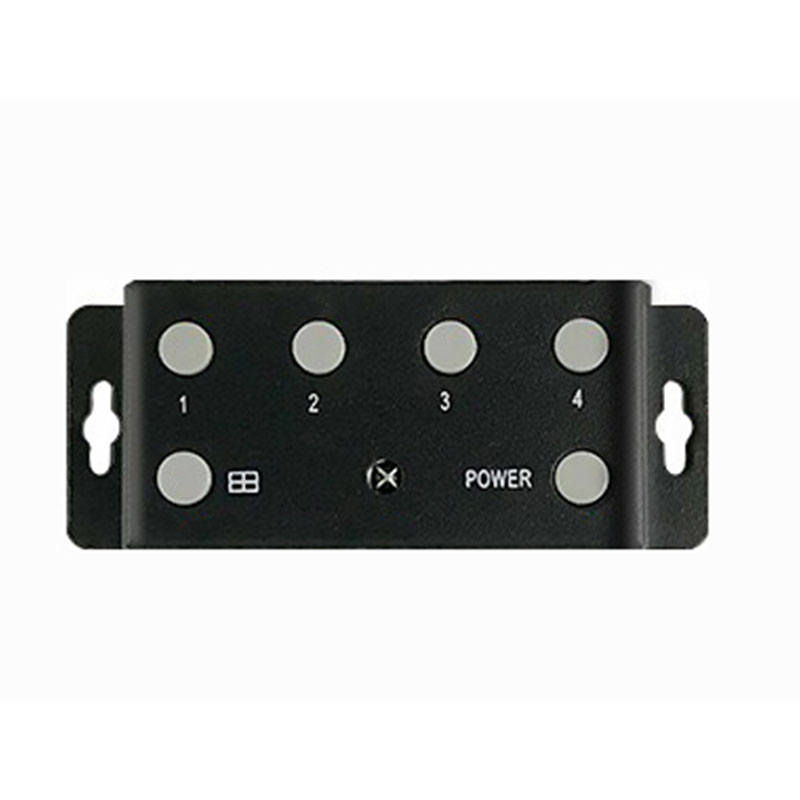

Can choose image of any channel of 4 cameras by trigger wire or hand

After cancelling trigger. the image is delayed for 2 sec. and returns to the state before the trigger

Support PAL/NTSC  video format

Dimension: 155*87*32mm
