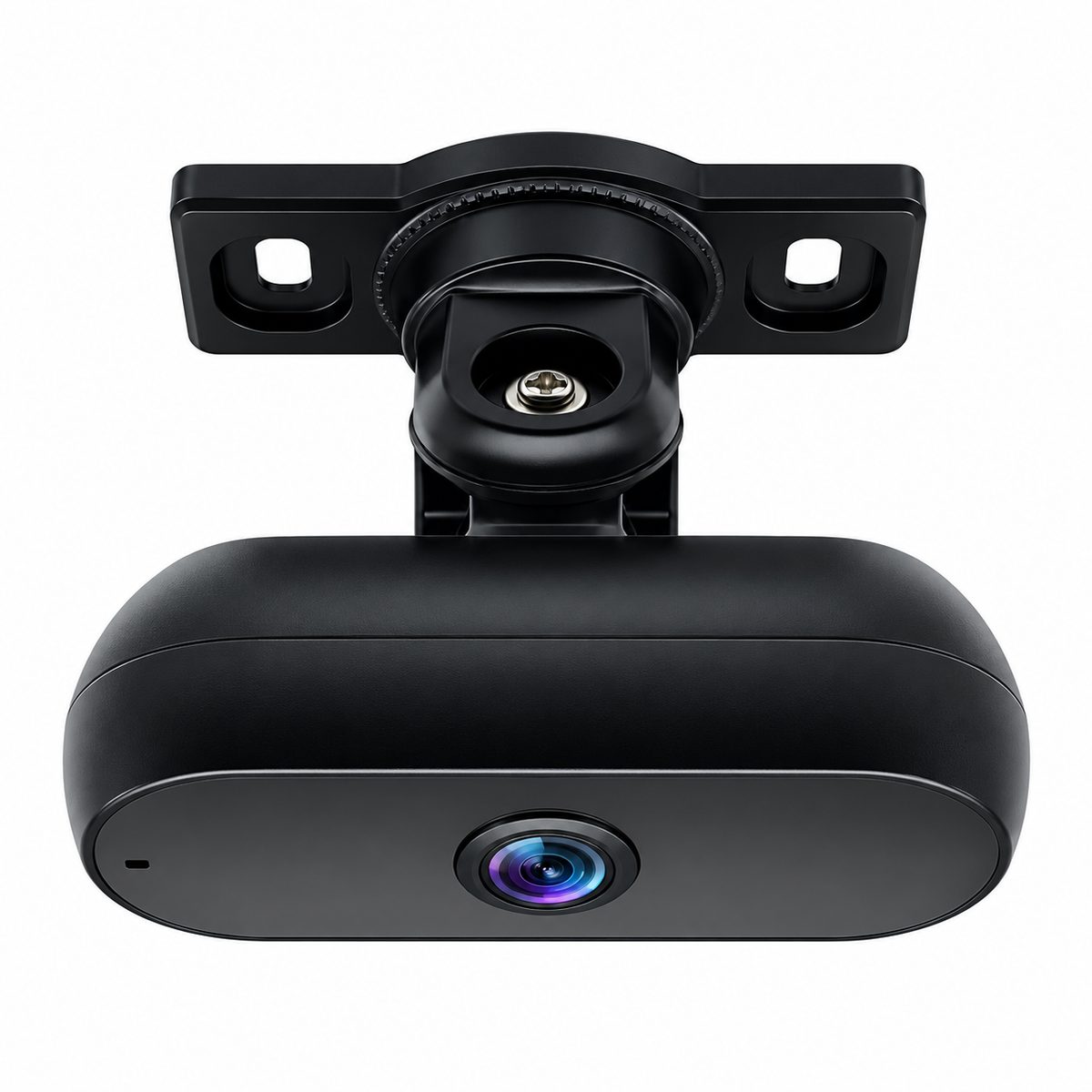

1080P Driver-Facing In-Cabin Camera with Starlight Night Vision for Fleet Monitoring

Key  Advantages

1. 2MP 1080P Driver-Facing Video

The AHD version supports up to 2,000,000 effective pixels (1080P) for detailed driver and cabin video recording.

2. Starlight Color Night Vision

Designed for low-light in-cabin monitoring and nighttime fleet video recording.

3. AHD / CVBS Video Options

Compatible with different generations of vehicle video surveillance equipment.

4. USB Connectivity Option

Provides an alternative connection for compatible USB-based video systems.

5. 100°–150° Viewing Angle

Different viewing-angle options allow the camera to be matched with different cabin layouts.

6. Adjustable Mounting Bracket

The bracket can be adjusted according to the actual installation position.

Parameters

Product Type: Driver-Facing In-Cabin View Camera

Image Sensor: 1/2.8" & 1/3"

Effective Pixels: 2,000,000 pixels (1080P)/1,000,000 pixels (CVBS)

Lens: 2.9mm

Video Input: CVBS / AHD720P / AHD1080P Optional

Viewing Angle: 100°–150° Optional

Night Vision: Starlight Night Vision

Night Image: Color Image

Connector: 4PIN Aviation Connector / USB Connector Optional

Power Supply: DC12V Standard / DC24V Optional

Bracket: Adjustable according to installation position

System: PAL / NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: Non-Waterproof

Operating Temperature: -20°C to +75°C, RH95% Max.

Storage Temperature: -30°C to +85°C, RH95% Max.

Driver-Facing Camera for Fleet Video Monitoring

The camera can be used to record the driver's cabin view as part of a multi-camera vehicle surveillance system. Typical applications include:

• Driver-facing video recording
• In-cabin monitoring
• Fleet vehicle surveillance
• Driver behavior video evidence
• Commercial vehicle interior monitoring
• Bus and coach cabin monitoring
• Truck and van driver monitoring
• MDVR multi-camera recording
• Vehicle incident review

Important: This camera is a video capture device. The supplied specifications do not indicate built-in AI functions such as fatigue detection, distraction detection, facial recognition or phone-use detection.

Recommended Multi-Camera Configuration

For a commercial fleet vehicle, this camera can be combined with other vehicle cameras to create a broader monitoring system

• Front Camera → Road Monitoring
• Driver-Facing Camera → Driver / Cabin Monitoring
• Rear Camera → Rear View Monitoring
• Side Cameras → Blind-Spot Monitoring

When connected to an appropriate MDVR or vehicle DVR, these cameras can provide multiple video channels for fleet video recording and incident review.

Quality Control

Carleader vehicle cameras are designed for continuous use in vehicle monitoring applications. Depending on the project and configuration, relevant inspections can include:

• Image quality inspection
• Video signal testing
• Connector and cable inspection
• Power supply testing
• Viewing angle verification
• Night vision performance inspection
• Bracket adjustment inspection
• Operating temperature verification
• PAL/NTSC system verification
• Long-duration video operation testing

FAQ

Q1: What is a driver-facing in-cabin camera?

A driver-facing in-cabin camera is a vehicle camera installed inside the cabin and positioned toward the driver or interior area. It is commonly used for driver video recording, fleet monitoring and in-vehicle surveillance.

Q2: Is this camera an AI Driver Monitoring System (DMS) camera?

The camera itself is a video capture camera. The provided specifications do not include built-in AI functions such as fatigue detection, distraction detection or facial recognition. It can, however, serve as the camera source for a

compatible external monitoring system.

Q3:Does the camera support 1080P?

Yes. The AHD version supports 2,000,000 effective pixels / 1080P.

Q4:Does it support USB?

Yes. A USB connector version is available as an option.

Q5: Can I use a 4PIN aviation connector?

Yes. The camera can be configured with a 4PIN aviation connector or USB connector according to the application.

Q6: Is the camera waterproof?

No. This model is specified as non-waterproof and is designed for in-cabin installation.

Q7: Can the camera be used with an MDVR?

Yes. The AHD/CVBS versions can be used with compatible vehicle DVR/MDVR systems that support the corresponding video input.

Q8: Can the viewing angle be customized?

The available viewing angle is 100°–150°, allowing different configurations according to the required cabin coverage.

Q9: Does the camera support night monitoring?

Yes. It uses Starlight Color Night Vision, which is designed for low-light in-cabin monitoring.

Q10: Can the bracket be adjusted?

Yes. The bracket can be adjusted according to the actual installation position inside the vehicle.
