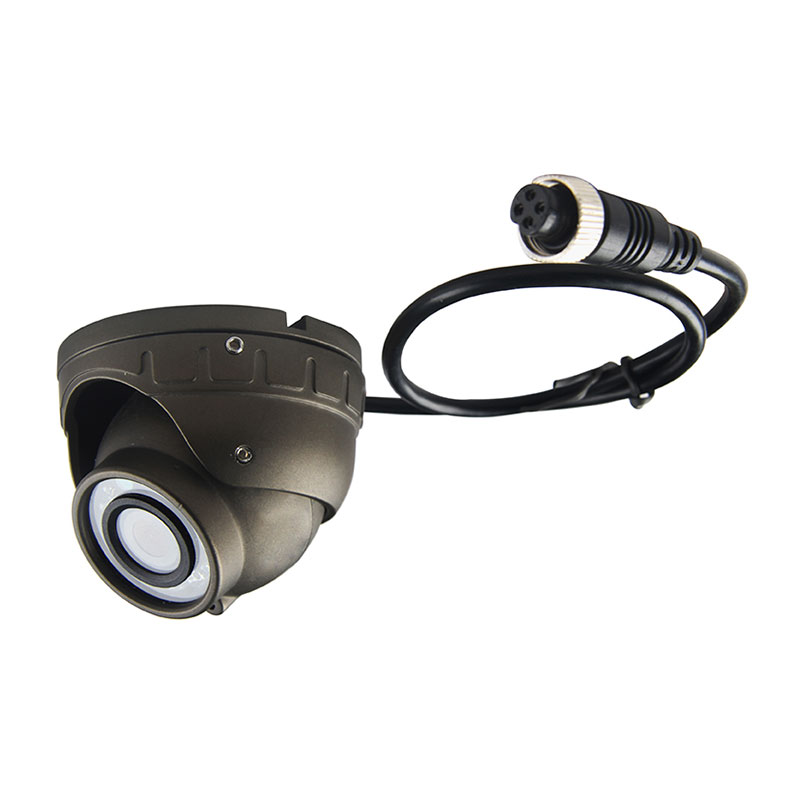

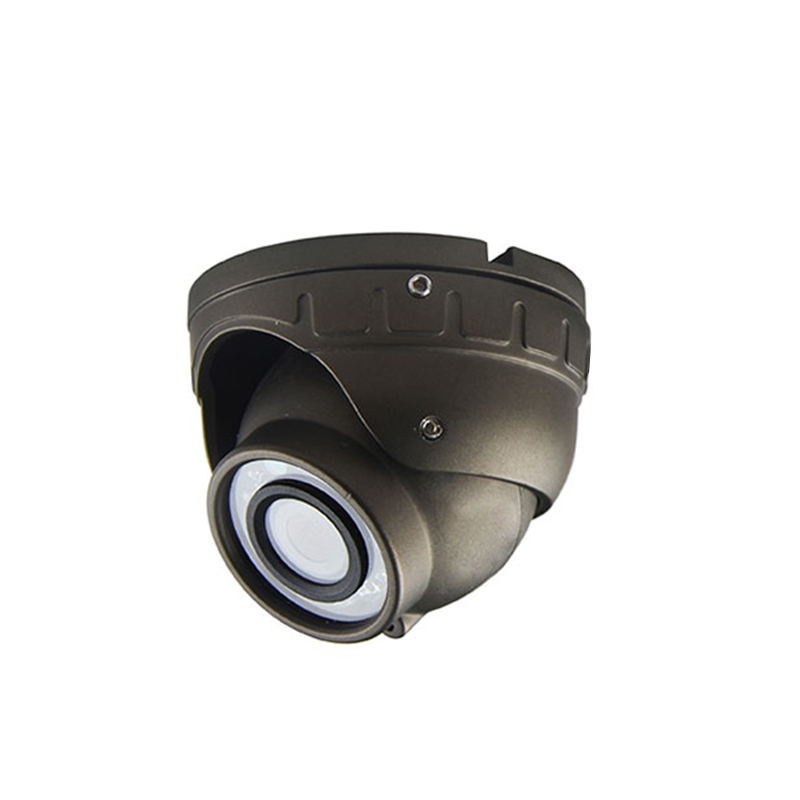

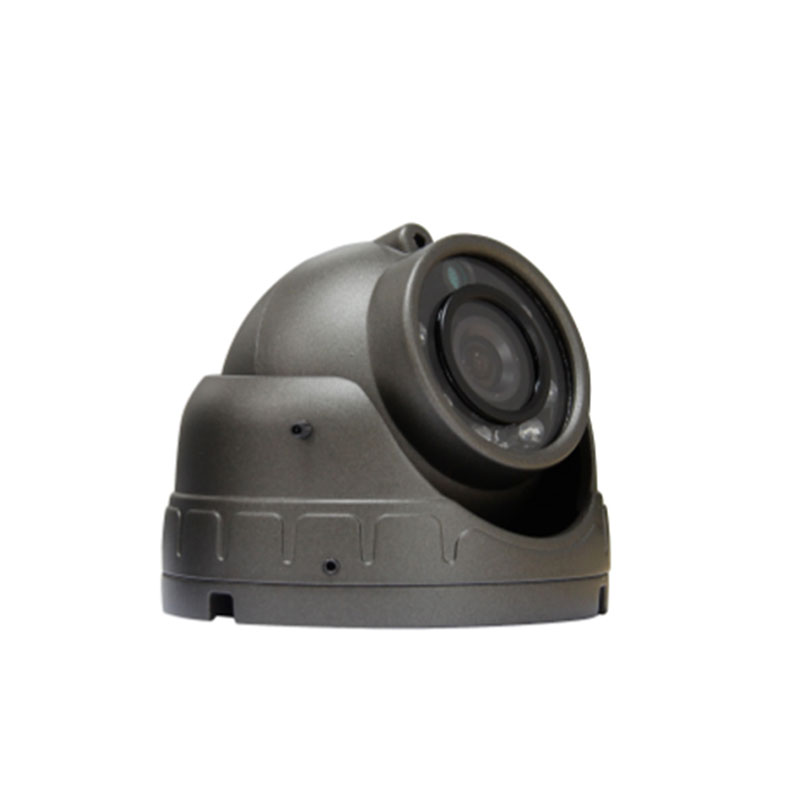

1080P Vehicle Dome Camera With 8 IR LED Night Vision IP69K Waterproof

Features:

1080P Vehicle Dome Camera supports up to 1920×1080 picture elements for detailed vehicle monitoring.

Supports CVBS / AHD 720P / AHD 1080P optional video input.

0.01Lux sensitivity provides reliable image performance in low-light environments.

2.8mm lens with 120° viewing angle provides wide-area coverage for vehicle surveillance.

IP69K waterproof protection helps the camera withstand demanding vehicle environments.

Supports PAL/NTSC optional systems for different video system requirements.

Parameter:

Product Type: Vehicle Dome Camera

Video Input: CVBS / AHD 720P / AHD 1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Lens: 2.8mm

Picture Elements: 1920×1080 / 1280×720

Sensitivity: 0.01Lux (8 IR LED)

IR Distance: 8-15M

Infrared Spectrum: 850nm

S/N Ratio: ≥50dB

System: PAL/NTSC Optional

View Angle: 120°

Video Output: 1.0Vp-p, 75Ω, 4PIN

Waterproof Rating: IP69K

Dimensions: 68.8mm (L) × 57mm (W)

Operating Temperature: -20°C to +75°C (RH95% Max.)

Storage Temperature: -30°C to +85°C (RH95% Max.)

Product Advantages

• Clear HD Vehicle Monitoring

The 1080P vehicle camera supports up to 1920×1080 resolution, providing detailed images for vehicle surveillance.

• Reliable Night Vision

With 8 IR LEDs, 0.01Lux sensitivity and 8-15M IR distance, the camera is designed for nighttime and low-light vehicle monitoring.

• Wide Monitoring Area

The 2.8mm lens and 120° viewing angle provide broad rear or side monitoring coverage.

• Durable IP69K Housing

The IP69K vehicle dome camera is designed for applications exposed to water, dust and demanding operating conditions.

• Flexible Video Compatibility

CVBS, AHD 720P and AHD 1080P options allow the camera to be matched with different vehicle video systems.

FAQ

Q1: What resolution does this vehicle dome camera support?

The camera supports 1920×1080 and 1280×720 picture elements, with CVBS/AHD 720P/AHD 1080P optional video input.

Q2: Does the camera support night vision?

Yes. The camera has 8 IR LEDs, with 0.01Lux sensitivity and an 8-15M infrared distance.

Q3: What is the viewing angle?

The camera provides a 120° viewing angle.

Q4: What lens does the camera use?

The standard lens is 2.8mm.

Q5: Is this camera waterproof?

Yes. The camera has an IP69K waterproof rating.

Q6: What infrared wavelength does the camera use?

The infrared spectrum is 850nm.

Q7: Can it work with different vehicle video systems?

Yes. CVBS, AHD 720P and AHD 1080P are available as optional video input formats.
