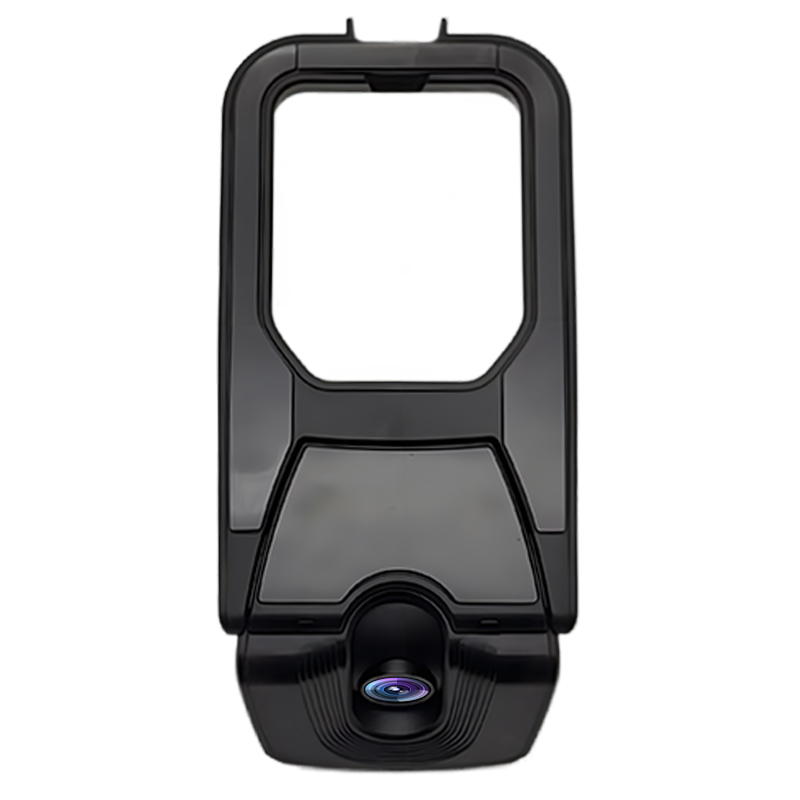

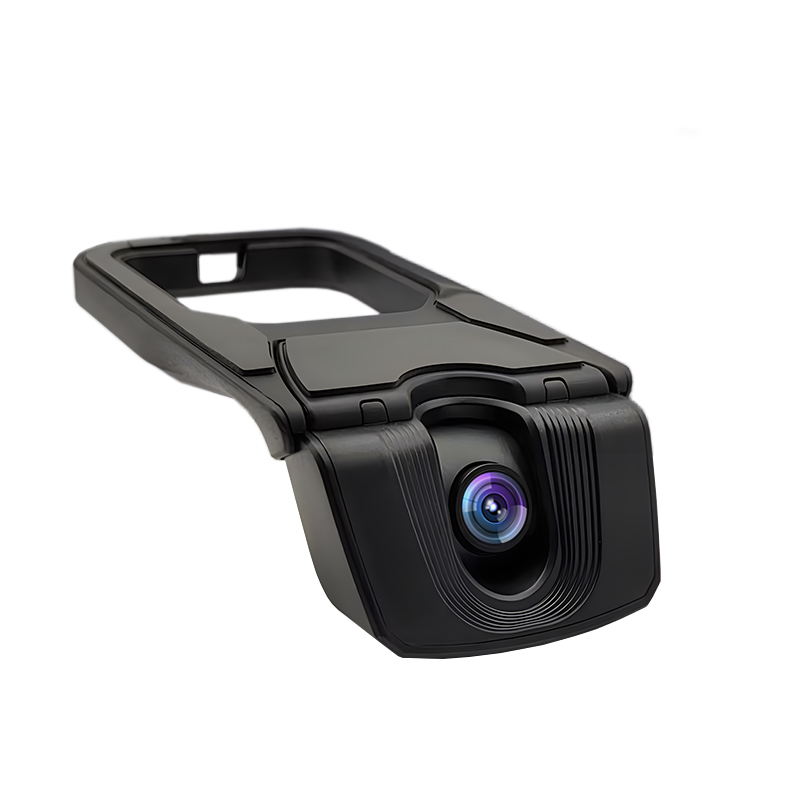

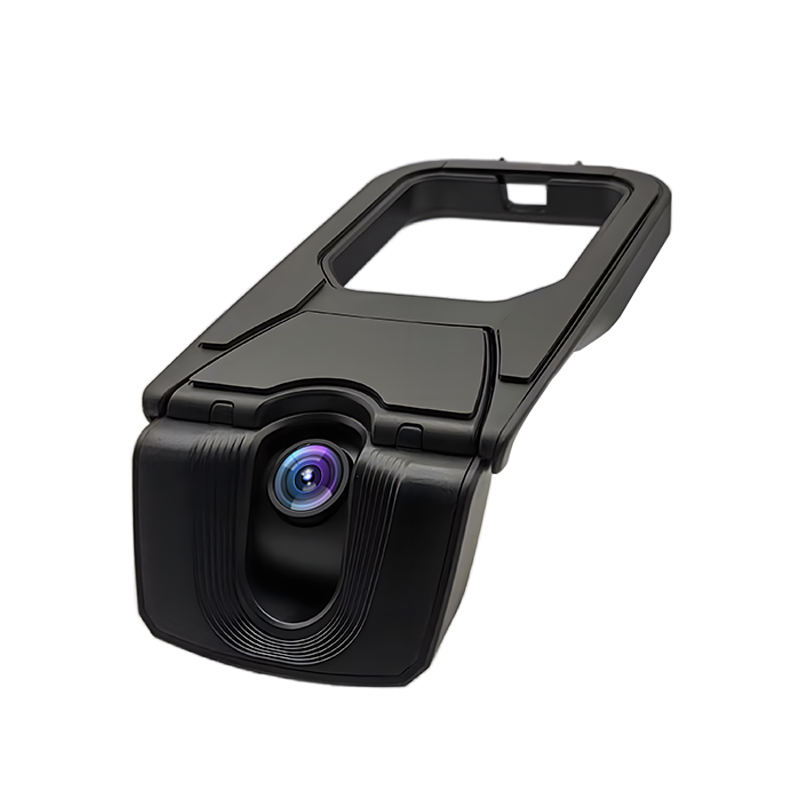

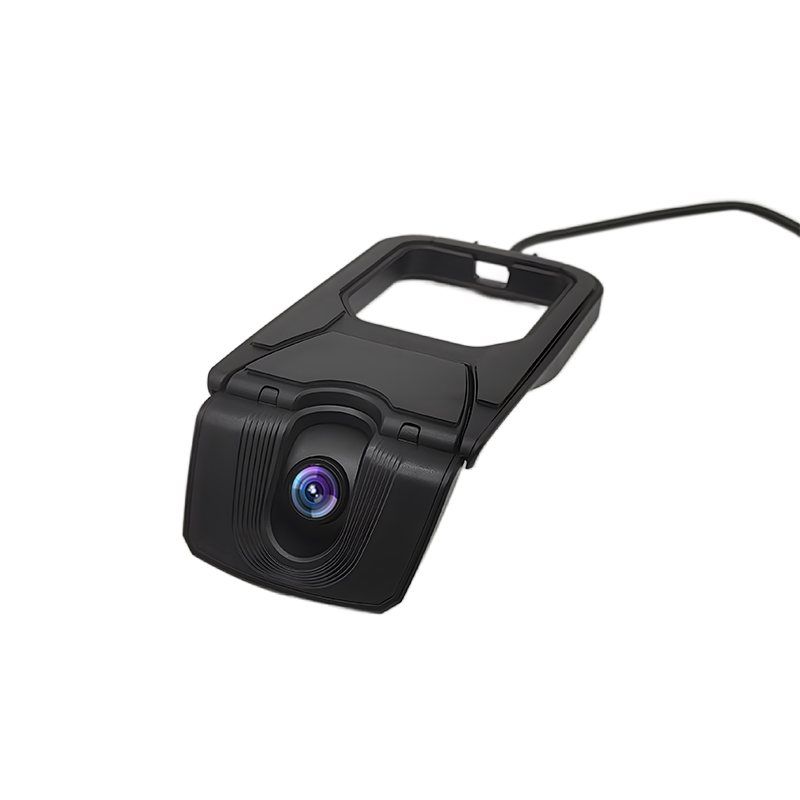

1080P Windshield Starlight Front Facing Vehicle Camera with Digital WDR

The camera is available with CVBS, AHD 720P and AHD 1080P video options. With Starlight Color Night Vision, the camera can capture clearer color images in low-light driving conditions. The integrated Digital WDR function helps balance bright and dark areas, making the camera suitable for scenes with strong sunlight, headlights and changing lighting conditions. The 120° wide-angle lens provides broad front-view coverage, while the 60° adjustable lens angle allows installers to fine-tune the camera position according to different vehicle installation requirements.

Features:

1. The 1080P vehicle camera provides high-definition images for vehicle front-view surveillance and recording.

2. The starlight night vision camera can provide color images in low-light environments, helping drivers and fleet operators obtain more visual information at night.

3. The Digital WDR camera helps improve image visibility in scenes with strong contrast between bright and dark areas.

4. The 120° wide-angle vehicle camera provides broad front-view coverage and helps reduce blind areas.

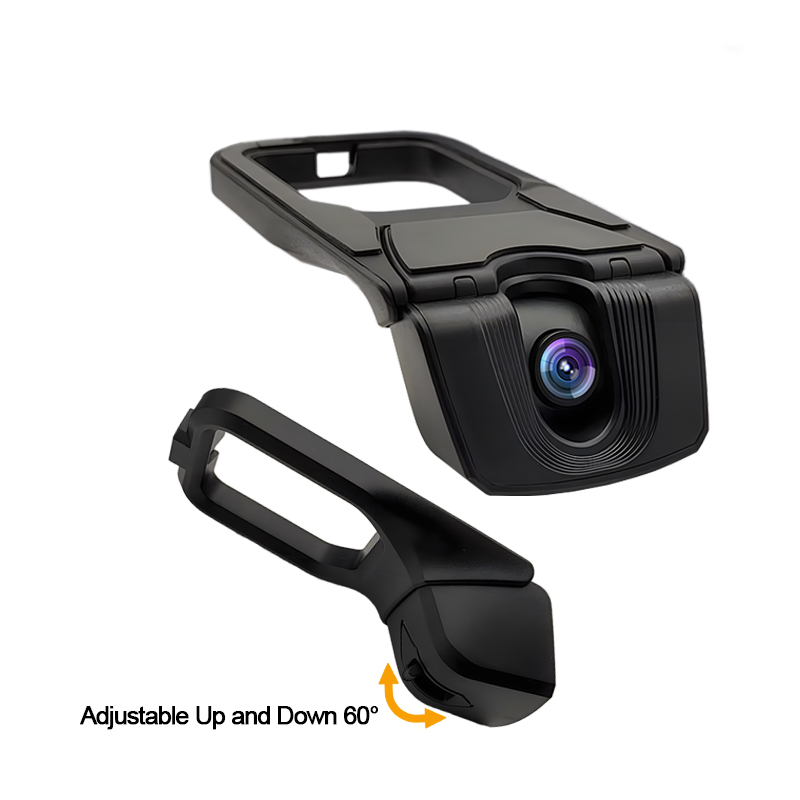

5. The lens angle can be adjusted by up to 60°, allowing flexible positioning during installation.

6. The concealed wiring design helps keep cables organized and provides a cleaner installation inside the vehicle.

7. Supports CVBS / AHD 720P / AHD 1080P depending on the selected configuration.

Parameter:

Product Type: Windshield Starlight Front Facing Vehicle Camera

Effective Pixels: 2,000,000 Pixels (1080P) ,1,000,000 Pixels (CVBS)

Lens: 2.9mm

Video Input: CVBS / AHD 720P / AHD 1080P Optional

View Angle: 120°

Adjustable Lens Angle: 60°

Night Vision: Starlight Night Vision (Color Image)

WDR: Digital WDR

Cable: Mini 4PIN Cable + 3M 4PIN Aviation Cable

Wiring Installation: Concealable Wiring Installation

Power Supply: DC12V (Standard), 24V (Optional)

System: PAL/NTSC Optional

Built-in Microphone: No

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application Scenarios

• Fleet Monitoring

Suitable for fleet surveillance systems used by logistics, transportation and commercial vehicle operators.

• Truck Front View Monitoring

Can be installed on trucks and commercial vehicles to record the road ahead.

• Bus Surveillance

Suitable for bus monitoring systems and passenger transportation vehicles.

• Mobile DVR Systems

The camera can be integrated with mobile DVR / vehicle DVR systems for continuous front-view recording.

• Commercial Vehicle Security

Suitable for vehicle security and driving-event recording applications.

FAQ

Q1: Does this camera support 1080P?

Yes. The camera supports a 1080P configuration with a Sony IMX307 image sensor.

Q2: Does the camera support night vision?

Yes. The camera features Starlight Color Night Vision for improved low-light image performance.

Q3: Does it support WDR?

Yes. This model supports Digital WDR to improve image visibility in high-contrast lighting conditions.

Q4: Can the lens angle be adjusted?

Yes. The lens angle can be adjusted up to 60° for flexible vehicle installation.

Q5: What video formats are available?

CVBS, AHD 720P and AHD 1080P are available as optional configurations.

Q6: What cable is included?

The camera can be supplied with a mini 4-pin cable and 3M 4-pin aviation cable.

Q7: Can the wiring be hidden?

Yes. The camera is designed for concealable wiring installation, helping achieve a cleaner vehicle installation.
