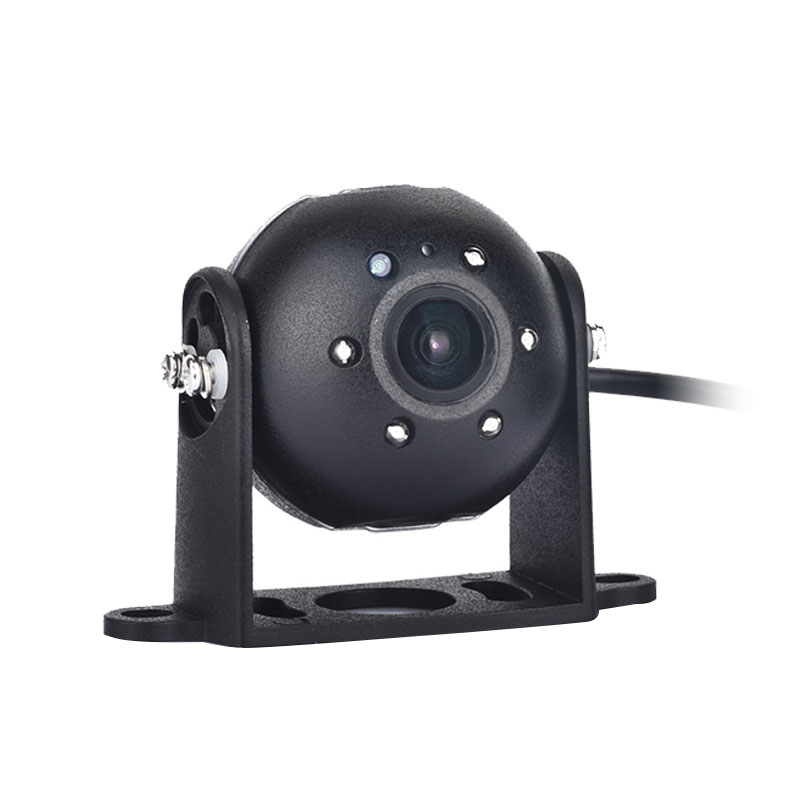

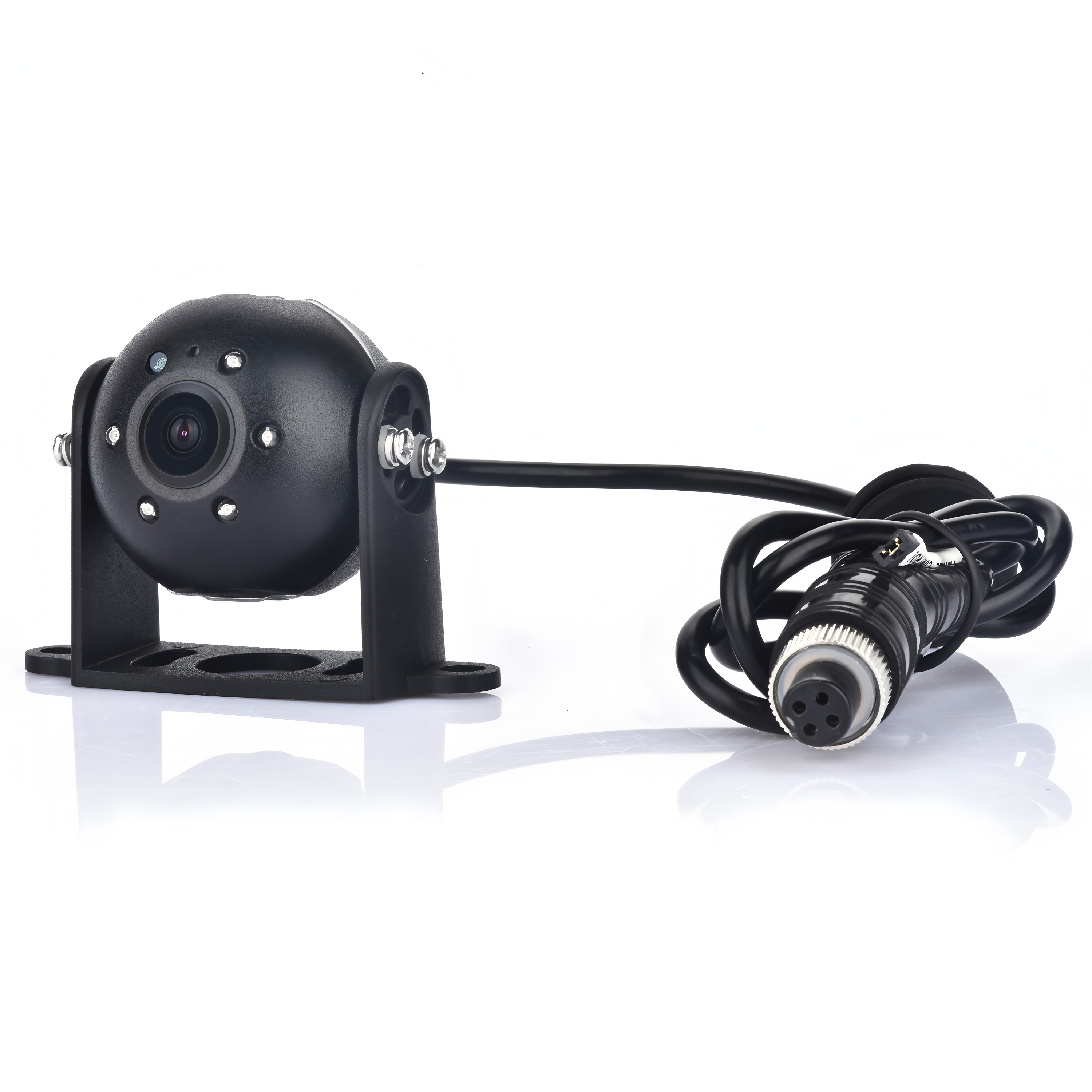

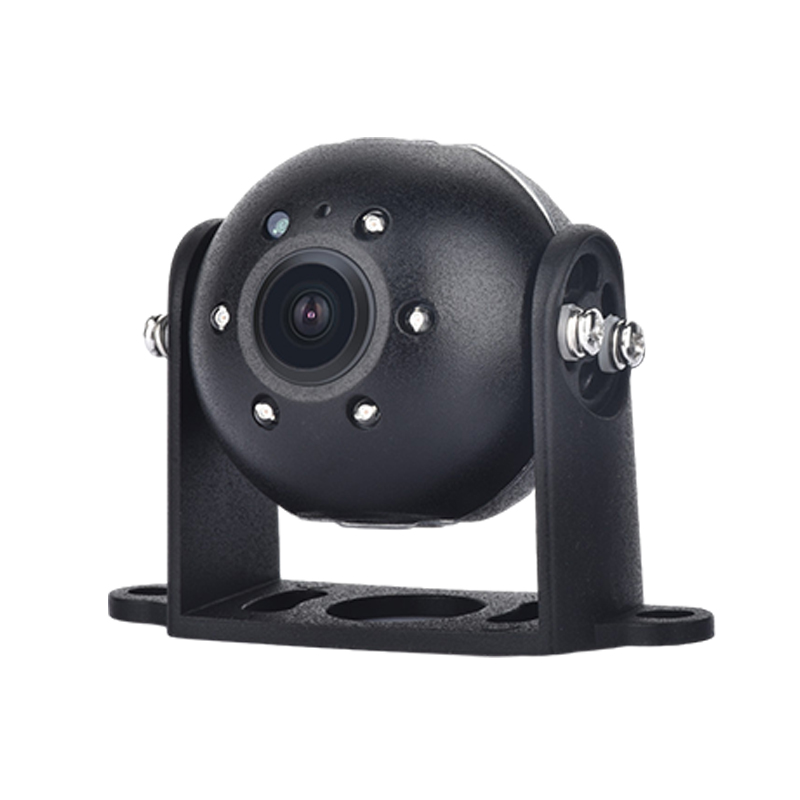

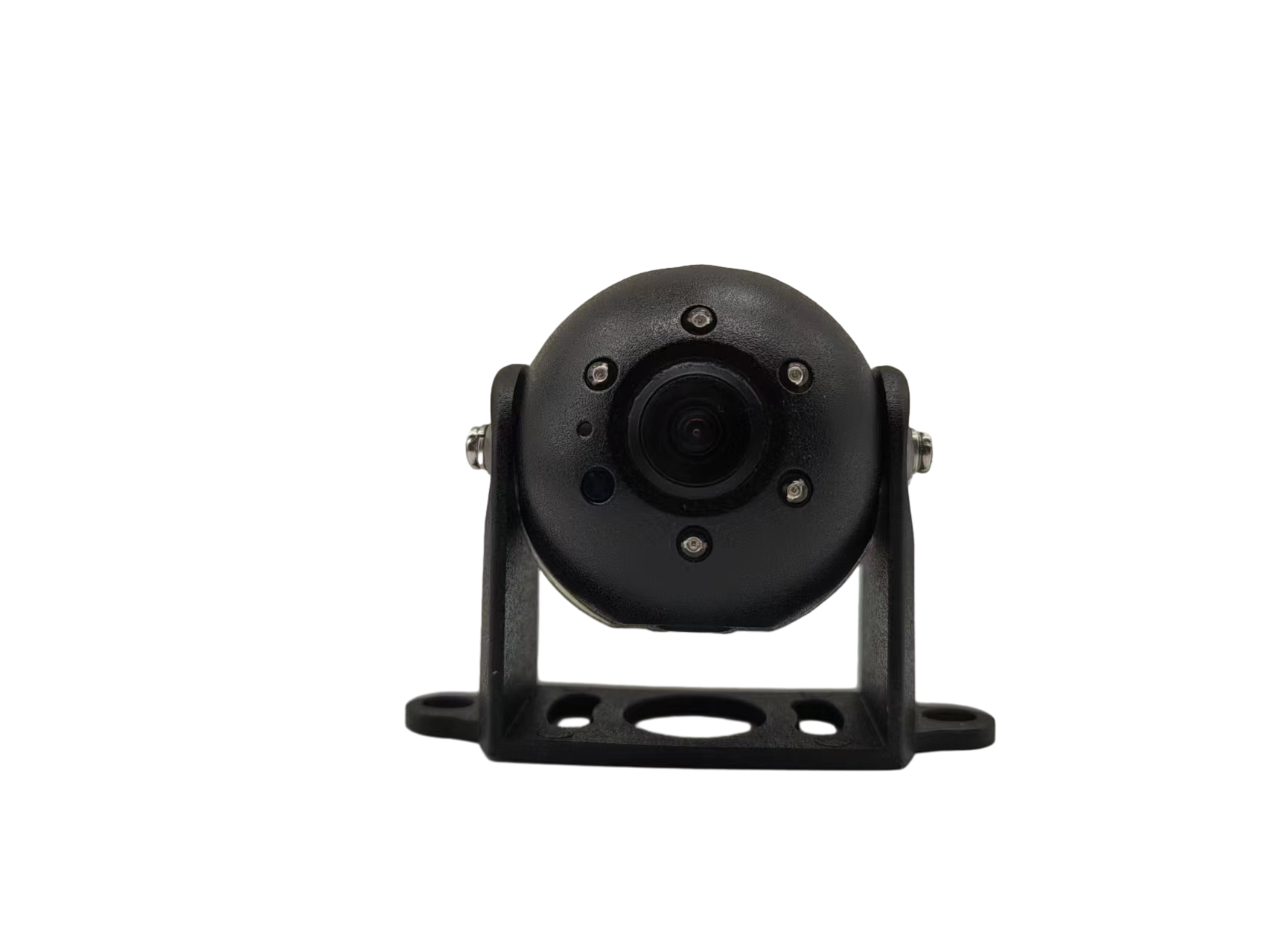

130 degree/150 degree Wide Angle Commercial Vehicle Camera for Fleet Monitoring

Key Advantages

1. One Camera for Multiple Positions

The camera can be configured for front view, side view or rear view, making it practical for different vehicle camera layouts without requiring completely different camera designs.

2. Wide-Area Vehicle Monitoring

The 2.0mm lens provides broad image coverage.  A 130° standard viewing angle is available, with 150° optional, helping cover more of the monitored area.

3. Flexible Installation

The camera supports 90° horizontal and vertical rotation, giving installers more freedom when positioning the camera on different parts of a vehicle.

4. Multiple Video Formats

CVBS, AHD720P and AHD1080P options allow the camera to be matched with different vehicle monitors, DVRs, MDVRs and existing truck camera systems.

5. Better Visibility in Low Light

With 0.1 LUX minimum illumination and 5 LED illumination, the camera can provide additional visibility when ambient lighting becomes limited.

6. Built for Exterior Vehicle Use

The IP69K waterproof rating makes the camera suitable for exterior installation where it may be exposed to rain, road spray, dust and vehicle washing.

7. Adaptable Image Display

Mirror and non-mirrored image configurations are available for different front, side and rear monitoring requirements.

Parameters

Product Type: Front / Side / Rear View Camera

Image Sensor: 1/2.7″ & 1/1.9″

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V Standard, 24V Optional

Image: Mirror Image & Non-Mirrored Image Optional

Angle Adjustment: Rotatable 90° Horizontal / Vertical

View Angle: 130° Standard, 150° Optional

Minimum Illumination: 0.1 LUX (5 LED)

Lens: 2.0mm

S/N Ratio: ≥48dB

System: PAL / NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application Scenarios

• Truck Camera System

Used as a front, side or rear camera to expand the viewing coverage of trucks and heavy-duty vehicles.

• Commercial Vehicle Monitoring

Suitable for vans, buses, trailers and other commercial vehicles requiring multiple camera views.

• Fleet Monitoring

Can be integrated into fleet camera systems together with vehicle monitors, DVRs or MDVRs.

• Side & Blind Spot Monitoring

The wide-angle configuration can provide additional visibility around vehicle sides and areas that are difficult to observe directly.

• Rear View & Reversing

Can be installed as a rear view camera for reversing, loading and general rear-area monitoring.

• Multi-Camera Vehicle Systems

Multiple units can be installed at different positions to create a complete front, side and rear vehicle surveillance solution.

Quality Control

For commercial vehicle applications, relevant inspections can include:

• Waterproof and environmental protection inspection
• Video signal and image output testing
• Viewing angle verification
• Low-light image performance inspection
• Power supply and voltage compatibility testing
• Operating temperature testing
• Mirror/non-mirrored image function inspection
• Connector and cable connection inspection

These checks help verify the camera's suitability for integration into vehicle camera, fleet monitoring and commercial vehicle surveillance systems.

FAQ

Q: Can this camera be used for front, side and rear views?

A: Yes. The camera is designed for flexible installation and can be configured for front, side or rear monitoring.

Q: Does it support AHD1080P?

A: Yes. CVBS, AHD720P and AHD1080P versions are available.

Q: What is the standard viewing angle?

A: The standard viewing angle is 130°, with 150° available as an option.

Q: Can the camera installation direction be adjusted?

A: Yes. The camera supports 90° horizontal and vertical rotation.

Q: Is mirror image available?

A: Yes. Mirror and non-mirrored image options are available.

Q: Can it be installed outside the vehicle?

A: Yes. The camera has an IP69K waterproof rating and is designed for exterior vehicle applications.
