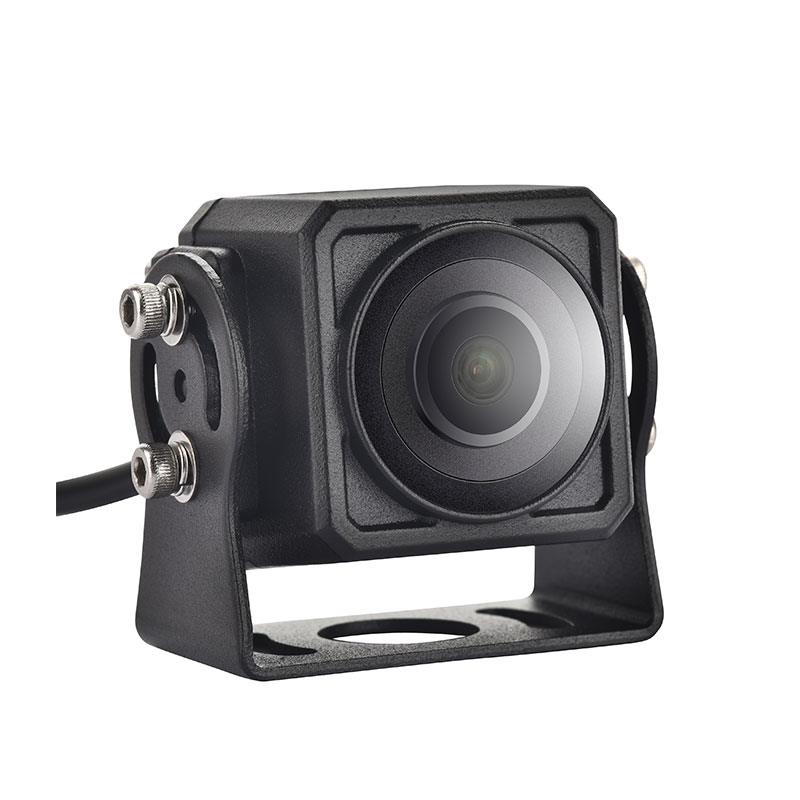

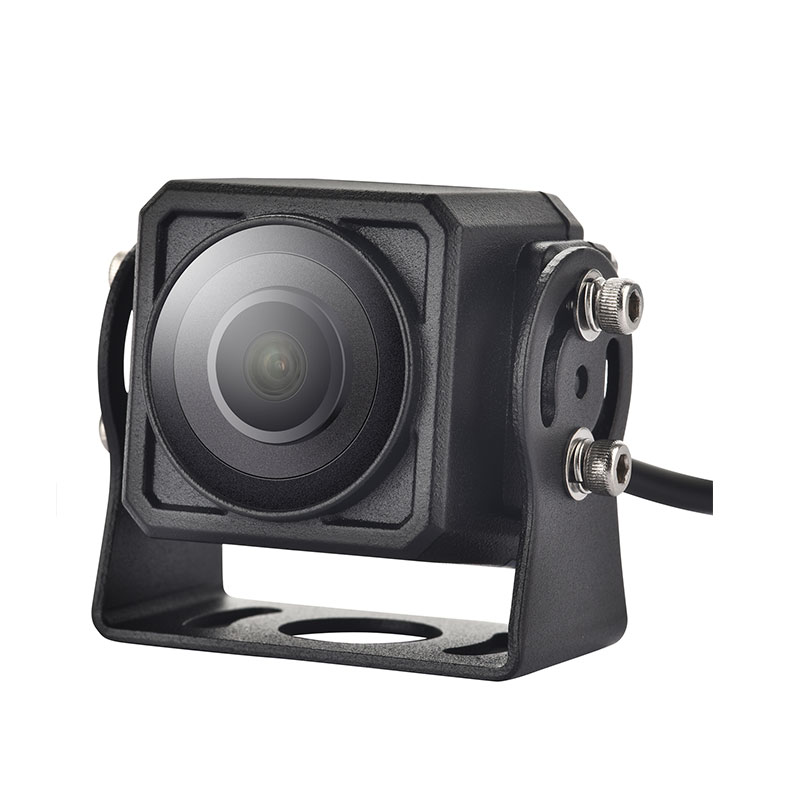

140° Wide Angle Starlight Vehicle Camera with IP69K Waterproof for Commercial Vehicle Monitoring

Features

• The 140° viewing angle provides broad monitoring coverage and helps reduce blind areas around the vehicle.
• The 1.6mm lens is designed for wide-area vehicle monitoring applications, making it suitable for trucks, buses and commercial vehicles.
• The camera provides Starlight Night Vision with color image, helping maintain useful image visibility in low-light conditions.
• The camera supports AHD1080P, AHD720P and CVBS, providing compatibility with different vehicle monitoring systems.
• The IP69K waterproof vehicle camera is designed for exterior installation and demanding commercial transportation environments.
• Mirror and non-mirrored image options allow flexible use for front, rear and side installation.
• A built-in microphone is available as an optional configuration for applications requiring audio monitoring.

Product Parameters

Product Type: Starlight Side / Front / Rear View Camera

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Mirror Image: Optional

Non-Mirrored Image: Optional

Lens: 1.6mm

Lux: 0.1 LUX

Starlight Night Vision: Color Image

View Angle: 140°

S/N Ratio: ≥48dB

System: PAL / NTSC Optional

Built-in Microphone: Optional

Waterproof Rating: IP69K

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Quality Control

• Image Quality Inspection
• AHD1080P Video Output Test
• CVBS/AHD Compatibility Test
• Wide Angle Test
• Low-Light Image Test
• Starlight Night Vision Test
• Mirror/Non-Mirror Image Test
• Power Supply Test
• IP69K Waterproof Test
• Operating Temperature Test
• Appearance Inspection
• Final Product Inspection

Application Scenarios

• Wide Angle Truck Camera

The 140° wide angle truck camera is suitable for monitoring areas around commercial trucks where broad visual coverage is required.

• Truck Backup Camera

Used as a truck backup camera to provide rear monitoring and assist the driver during reversing and parking.

• Front View Vehicle Camera

Can be installed as a front view camera for road and vehicle-front monitoring.

• Bus Surveillance Camera

Suitable for front, rear or side monitoring on buses and passenger transportation vehicles.

• Commercial Vehicle Monitoring

Designed for commercial vehicle surveillance, including logistics trucks, delivery vehicles, construction vehicles and fleet vehicles.

• Fleet Monitoring

The camera can be integrated with a fleet monitoring system, vehicle DVR or mobile DVR for transportation fleet management.

FAQ

Q1: What is the viewing angle of this vehicle camera?

This model provides a 140° viewing angle with a 1.6mm lens.

Q2: Is this a wide-angle backup camera?

Yes. The 140° viewing angle makes it suitable for wide-angle rear view and backup monitoring.

Q3: Does it support AHD1080P?

Yes. The camera supports AHD1080P, AHD720P and CVBS.

Q4: Can it be used on trucks?

Yes. It can be used as a truck camera, truck backup camera, front camera, rear view camera or side view camera.

Q5: Does it have night vision?

Yes. It features Starlight Night Vision with color image and 0.1 LUX low-light performance.

Q6: Is the camera waterproof?

Yes. It has an IP69K waterproof rating and is suitable for exterior vehicle installation.

Q7: Can it work with a 24V commercial vehicle?

Yes. DC12V is standard and 24V is optional.
