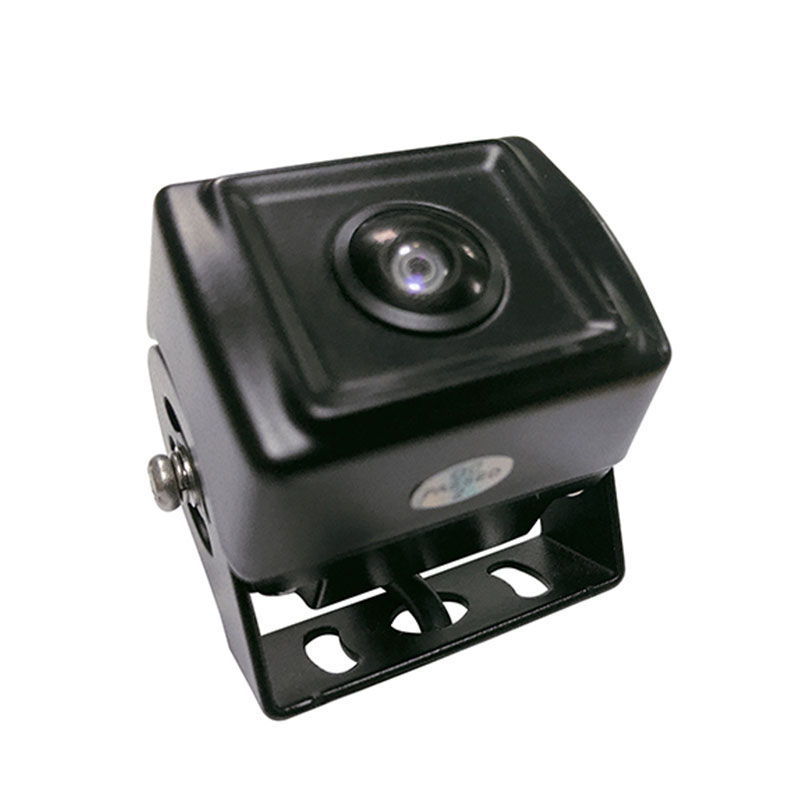

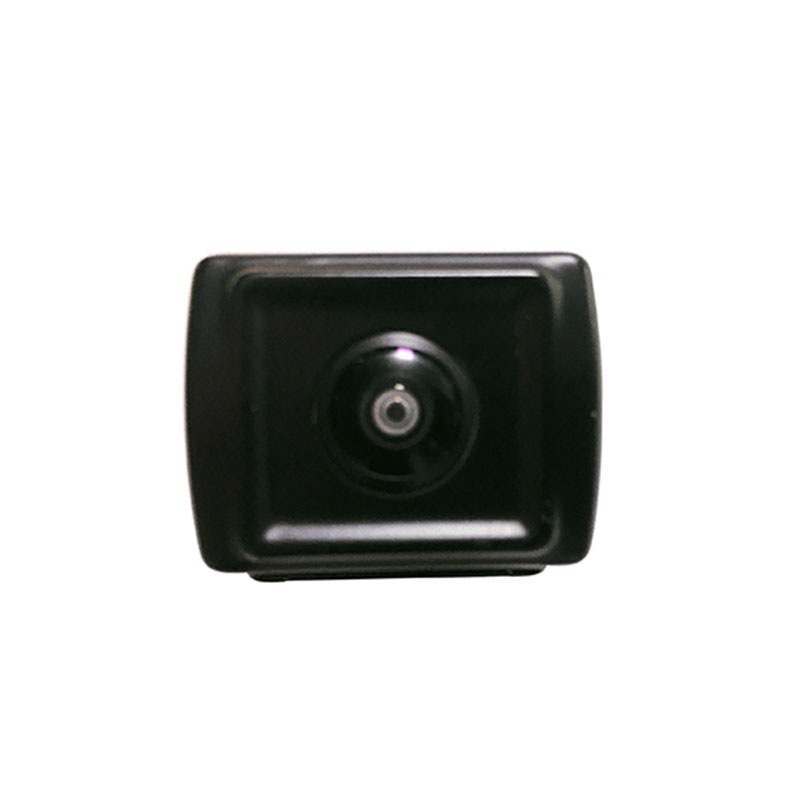

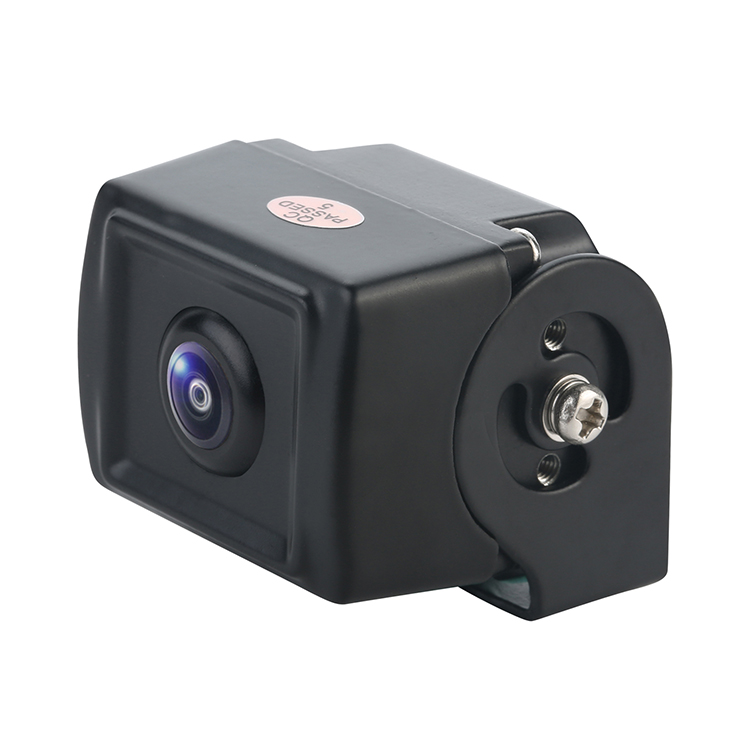

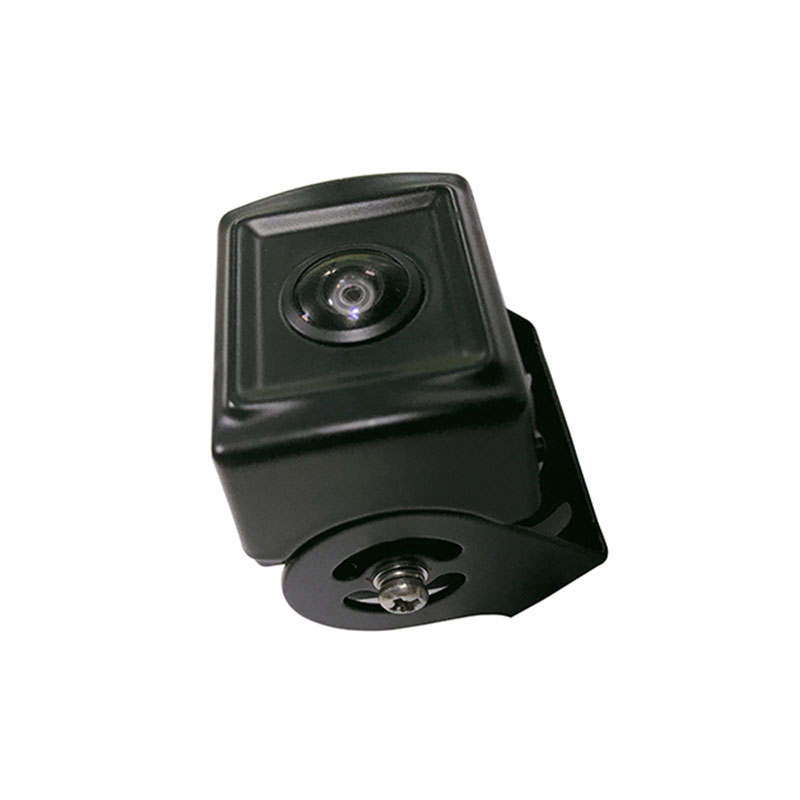

160° Wide Angle Mini Rear View Vehicle Camera with IP69K for Trucks and Commercial Vehicles

Features

1. With dimensions of only 36mm × 32mm × 28mm, this compact vehicle camera is suitable for installations where space is limited.

2. The 160° viewing angle provides broad coverage and helps reduce vehicle blind spots, making the camera suitable for front, side and rear monitoring.

3. With a 0 Lux specification, the camera is designed for low-light and dark vehicle monitoring applications, helping maintain visibility when ambient light is limited.

4. The IP69K vehicle camera is designed for demanding outdoor environments and provides protection against water, dust and high-pressure cleaning.

5. The camera supports CVBS, AHD 720P and AHD 1080P optional configurations for flexible integration with different vehicle monitors and DVR systems.

6. Both mirror and non-mirrored image configurations are available for different installation positions and monitoring requirements.

Parameter

Product Type: Mini Vehicle Camera

Video Input: CVBS / AHD 720P / AHD 1080P Optional

Power Supply: DC12V Standard, 24V Optional

Image: Mirror / Non-Mirrored Optional

Minimum Illumination: 0 Lux

Lens: 1.96mm

Effective Pixels: 668 × 576

S/N Ratio: ≥48dB

System: PAL / NTSC Optional

Viewing Angle: 160°

Waterproof Rating: IP69K

Dimension: 36mm(L) × 32mm(W) × 28mm(H)

Operating Temperature: -20°C~+75°C (RH95% Max.)

Storage Temperature: -30°C~+85°C (RH95% Max.)

Quality Testing

Each mini vehicle camera is tested before shipment to ensure stable performance and reliable operation in demanding vehicle environments.

• Image quality test
• Video output test
• CVBS video test
• AHD 720P test
• AHD 1080P test
• 160° viewing angle test
• Lens inspection
• Low-light performance test
• Mirror / non-mirrored image test
• PAL / NTSC test
• Power supply test
• IP69K waterproof inspection
• High/low temperature test
• Dimension inspection
• Final appearance inspection

FAQ

Q1: What is the size of this mini vehicle camera?

The camera measures only 36mm × 32mm × 28mm, making it suitable for compact installation locations.

Q2: What is the viewing angle?

The camera provides a 160° wide viewing angle for broad vehicle monitoring coverage.

Q3: Does the camera support AHD 1080P?

Yes. CVBS, AHD 720P and AHD 1080P are available as optional configurations.

Q4: Is this camera waterproof?

Yes. The camera features an IP69K waterproof rating for demanding vehicle and outdoor environments.

Q5: Can it be used as a side or rear-view camera?

Yes. The camera can be used for front, side and rear-view monitoring, with mirror and non-mirrored image options available.

Q6: Is the camera suitable for trucks and buses?

Yes. Its compact design, wide viewing angle and IP69K protection make it suitable for trucks, buses, commercial vehicles and construction vehicles.

Q7: What does 0 Lux mean for this camera?

The 0 Lux specification indicates that the camera is designed to operate in very low-light or dark conditions, depending on the specific configuration and lighting environment.
