16CH HDD Mobile DVR with GPS 4G Support for Vehicle Fleet Monitoring and Security System

Carleader 16CH HDD Mobile DVR Vehicle Recorder with GPS 4G Support for Fleet Monitoring System, the vehicle DVR designed for fleet management, public transportation and commercial vehicle surveillance applications. This MDVR supports up to 16CH 1080P/720P AHD camera inputs, with a high-performance Novatek image processing chip and H.264/H.265 video compression technology. It supports HDD and SD card storage(2*4TB HDD+1*512GB SD card), GPS positioning, G-sensor, 4G communication and optional WiFi module for remote fleet management.

Features:

1. 16CH Vehicle DVR Supports 1080P/720P AHD Video Input for Multi-Camera Monitoring

2. H.264/H.265 Compression Technology Provides High-Quality Recording with Efficient Storage

3. GPS and 4G Support Enable Real-Time Fleet Tracking and Remote Vehicle Management

4. 9-36V Wide Voltage Input with Multiple Protection Functions for Various Vehicles

5. HDD and SD Card Dual Storage Support Ensures Reliable Video Data Recording

6. Built-in G-Sensor Monitors Driving Behavior for Improved Vehicle Safety Management

7. Three Protection: Low Voltage Protection, Short Circuit Protection and Reverse Connection Protection

Parameter:

Product Type: 16CH HDD Mobile DVR

Video Input: Support 16CH 1080P/720P AHD Input

Video Input Type: AHD / TVI / CVI / IPC / CVBS Analog Video Input

Video Encoding: H.264 / H.265 High Compression Encoding

Video Output: CVBS / AHD / VGA Output

Video Function: Support Horizontal Mirror, Vertical Mirror and 90° Rotation

Storage: Support HDD and SD Card Storage

SD Card Storage: Support SD Card up to 512GB

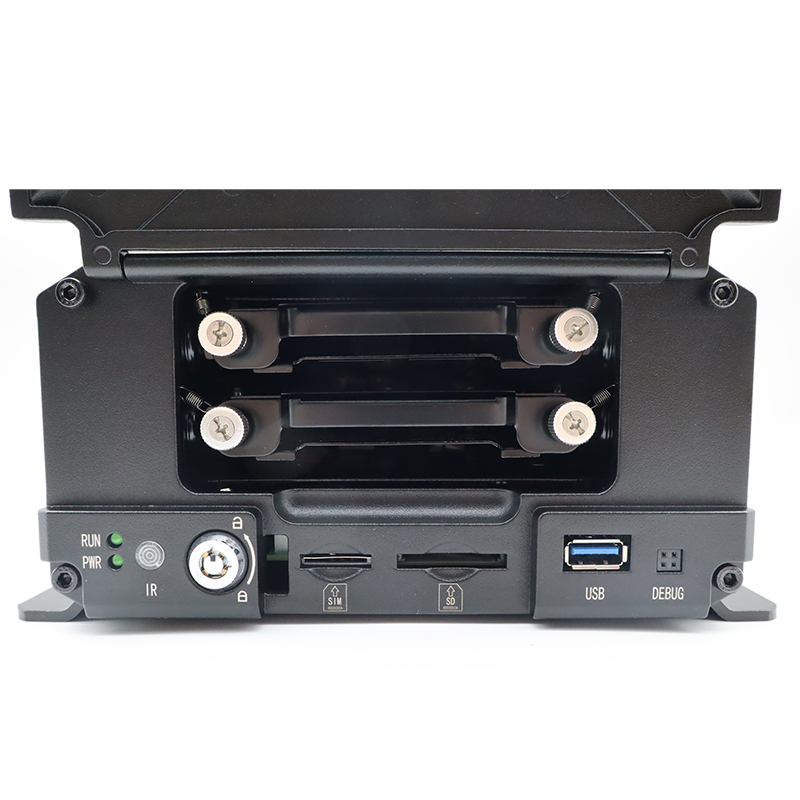

Hard Disk Support: Support Dual 2.5-inch HDD Storage(7mm THK / 15mm THK HDD Optional)

G-Sensor: Built-in G-Sensor for Vehicle Driving Behavior Monitoring

GPS Module: Built-in GNSS (GPS/BD/GLONASS) Module

Wireless Module: Support 4G/5G Module, Optional 2.4GHz WiFi Module

Power Supply: 9-36V DC Wide Voltage Vehicle Power Supply

Protection Function: Low Voltage Protection, Short Circuit Protection, Reverse Connection Protection

Power Management: Intelligent Power Management with Low Power Consumption

Data Protection: Special File Management System for Data Security
