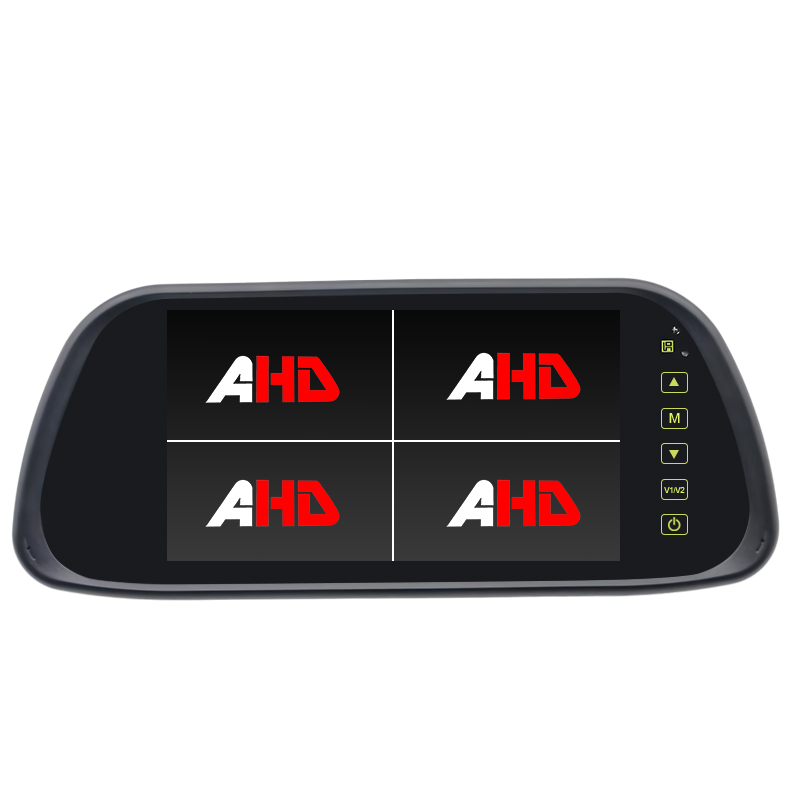

2 in 1 Installation 7 Inch Quad AHD Rearview Mirror Monitor

Carleader 2 in 1 Installation 7 Inch Quad AHD Rearview Mirror Monitor, a cutting-edge 7-inch quad view  AHD monitor designed to provide superior visibility and safety for your vehicle. With 2 in 1 installation design for selectable installation solution. Combining a sleek design with advanced technology, this monitor transforms your standard rearview mirror into a powerful multi-camera display system.

Features:

1. Carleader 2 in 1 Installation 7 Inch Quad AHD Rearview Mirror Monitor, 16 : 9 image ratio, 1024x600 resolution

2. 4CH AHD video inputs with trigger wires, support CVBS / 720P / 1080P camera input, PAL/NTSC auto switch.

3. Auto dimming function (Optional)

4. 2 in 1 installation method: A. stalk bracket; B. clip-on bracket.

Specification:

7 inch high digital new panel,16 : 9 image

Resolution: 1024 x RGB x 600

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire. AHD2 has priority

Auto switchable AHD2 when trigger reverse cable

Video input format: CVBS/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

Auto dimming function optional

Brightness: 450 cd/m2

Contrast: 500 : 1

Power supply: DC9-32V

Touch button function

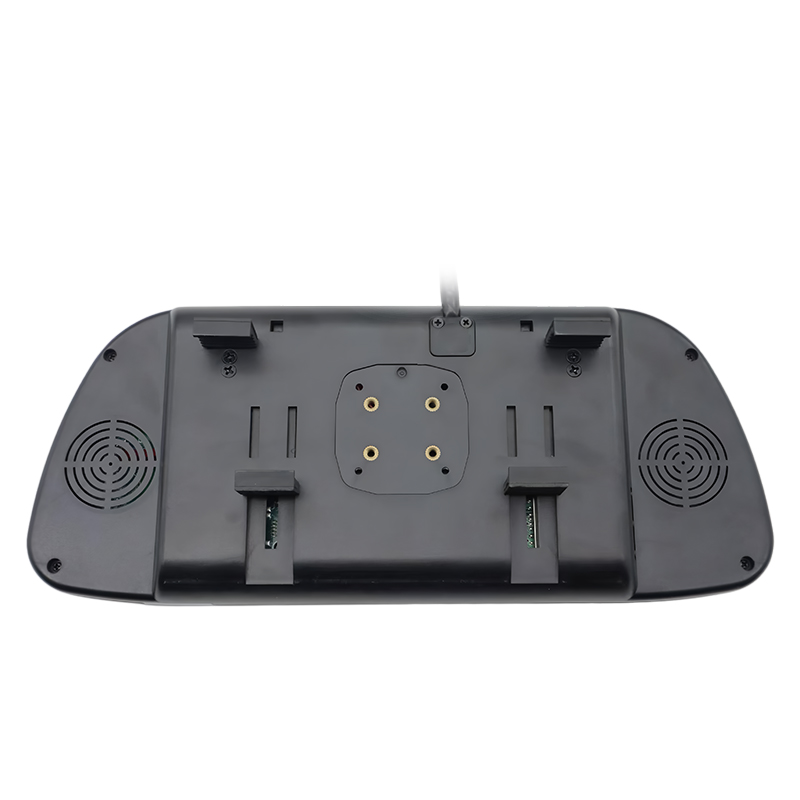

2 in 1 Installation Design:

     A. Use stalk bracket to replace the original mirror

     B. Use Clip-on Bracket directly Clip on the original mirror

Dimension: 26 x 11 x 4.7cm

Carleader 2 in 1 Installation 7 Inch Quad AHD Rearview Mirror Monitor Ideal For cars, trucks, vans, and fleets. Perfect for reversing assistance, blind-spot monitoring, and comprehensive vehicle surveillance.
