Vehicle Monitor & Camera Manufacturer New Products

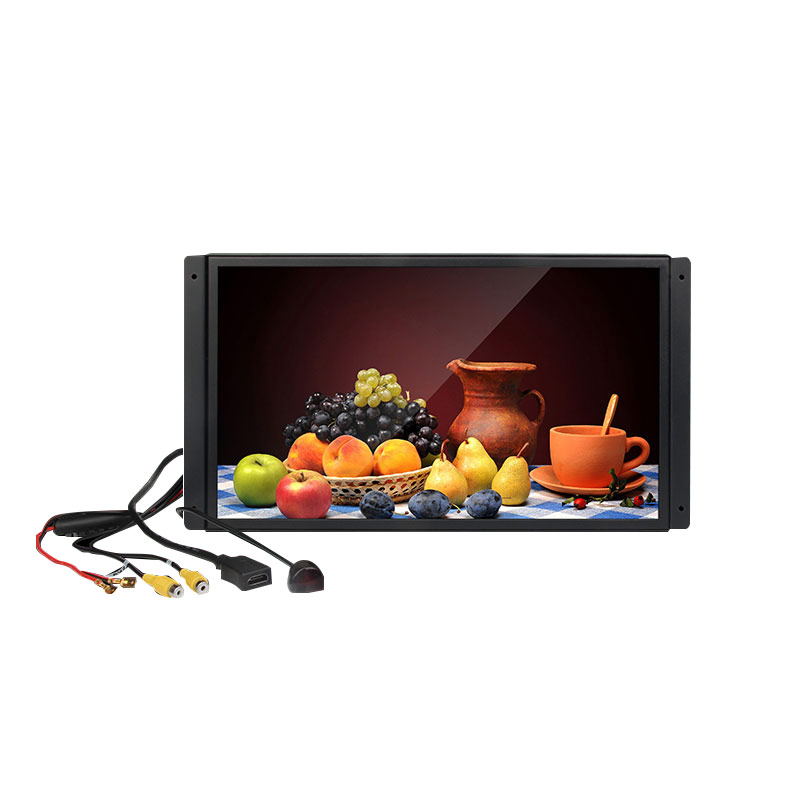

21.5inch open frame HD monitor
Carleader are a factory focusing on heavy car CCTV item. Our 21.5inch open frame HD monitor and vehicle cameras are characterized by high quality, high performance, high reliability and multi-function, which can meet the different needs and requirements of customers. If you need large car security products, welcome to contact us, we will serve you wholeheartedly.
Model:CL-215HD
Send Inquiry
Product Description
The Car Monitor of the CL-215HD uses a high-quality IPS panel with different viewing angles and a resolution of 1920x3(RGB)x1080. This means users can enjoy precise, detailed images from any angle, making it ideal for displaying images and videos.
In addition, the CL-215HD is equipped with a wealth of connectivity options, including HDMI, VGA, AV and USB inputs, which can be easily connected to a variety of devices, including computers, laptops, tablets, smartphones and video cameras. This makes it a versatile monitor for a variety of occasions such as offices, conference rooms, home entertainment, RV monitoring, and more.
The parameter of 21.5inch Open Frame HD Monitor:
LCD Screen Physical Indicators:
|
Screen Type |
Color TFT LCD Screen |
|
Size |
21.5inch |
|
Viewable size |
476.64(H)x268.11(V) MM |
|
Pixel |
0.24825(H)x0.24825(V) MM |
|
Resolution |
1920x3(RGB)x1080 |
|
Image |
16.:9 |
|
View Mode |
TN Mode |
|
View Color |
16.7M colors (RGB 6-bits+HiFRC) |
|
Screen signal interface |
single channel LVDS |
LCD Screen Spec:
|
Viewing angle |
85︒/85︒/ 80︒/ 80︒（Left/Right/Up/Down） |
|
contrast |
1000.：1 |
|
brightness |
250cd/㎡ |
|
Response time |
6msec |
|
Screen backlight |
WLED |
|
Backlight life |
50000 hours |
Other Spec:
|
Operating temperature range |
-20°C~70°C, humidity max 95% |
|
Storage temperature range |
-30°C~80°C, maximum humidity 95% |
|
Operating voltage range |
DC12V |
|
Working power |
≤20 W |
|
Mode of operation |
Remote control, panel button operation |
|
Language |
multi-language |
|
Installation method |
Recessed, wall-mounted, desktop stand mounted, etc. |
|
Housing material |
Metal housing |
|
Housing Color |
Black |
