Carleader 3 channel dual lens AI dash cam with Advanced Driver Assistance Systems (ADAS) and Driver Status Monitoring(DSM). 3 Channel AI Dash Cam with ADAS and DSM can detect the driver's driving behavior and remind the driver through a sound alarm when abnormalities occur. Abnormal driving conditions of the driver include fatigue, distraction, smoking and talking on the phone while driving.
The ADAS camera is located in the front of the vehicle, helping the driver and the vehicle better understand the surrounding driving environment and assisting the driver to avoid collisions.
3 Channel AI Dash Cam with ADAS and DSM Parameters:
Item |
Device parameter |
Performance |
System |
Operating system |
Embedded Linux operating system |
Operating language |
Chinese/English |
|
Operating interface |
Configuration through operation and maintenance treasure |
|
Password security |
User password management |
|
Audio & Video
|
Video compression |
H.265/H.264 |
Image resolution |
1080P/720P /960H/D1/CIF |
|
Recording quality |
Class 1-6 optional |
|
Audio Compression |
G.711A, G.711U, G.726 |
|
Recording method |
Audio & Video synchronized recording |
|
Recording&Playback |
Video method |
Automatic/Alarm |
Audio bit rate |
8Kb/s |
|
Video search |
Searchable by channel, type of recording |
|
Firmware upgrading |
Upgrading mode |
Manual/Automatic/Remote |
Upgrading method |
USB disk, TF card, wireless network |
|
Interface |
Ignition input |
1 ACC signal |
Audio input |
Built -in MIC |
|
Audio output |
Built-in 2W speaker |
|
TF Card |
1xTF Card interface |
|
SIM Interface |
1x MICRO SIM Interface |
|
USB Port |
1x MICRO USB Port |
|
Led indicator light |
PWR/RUN two color light |
|
Extended functions |
GNSS |
Built-in ceramic antenna, GPS+BD+GLONASS |
Wireless |
4G all-network support |
|
WIFI |
Frequency 2.4GHz |
|
Other |
Power input |
DC: 8V~36V |
Typical power consumption |
Less than5W |
|
Working temperature |
-20-70℃ |
|
Storage |
1080P 600MB/Hour/CH H.265 1080P 1200MB/Hour/CH H.264 |
|
Dimension |
125.6*86.6*46.9mm |

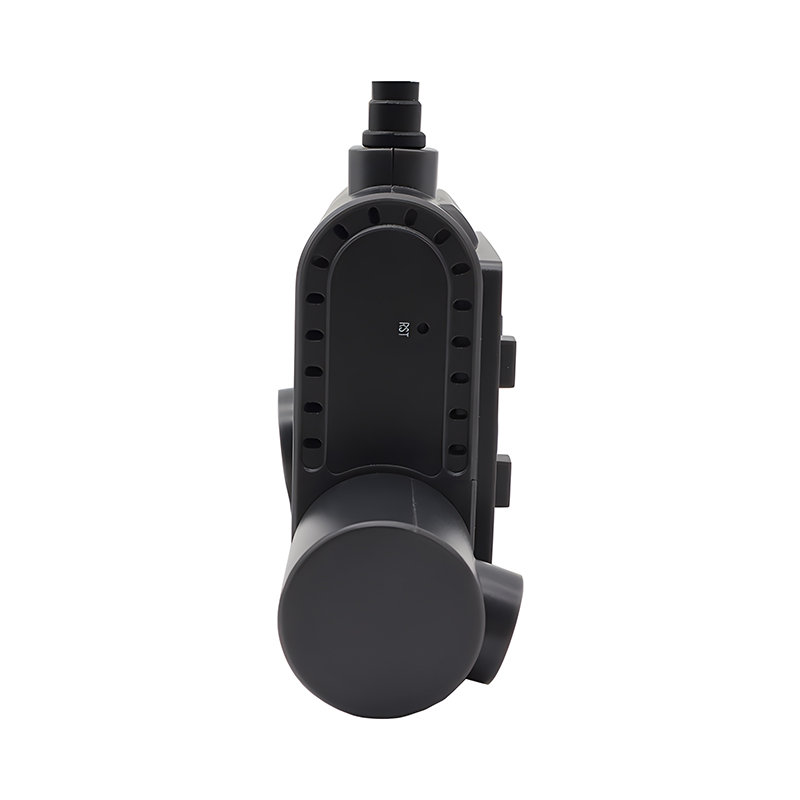

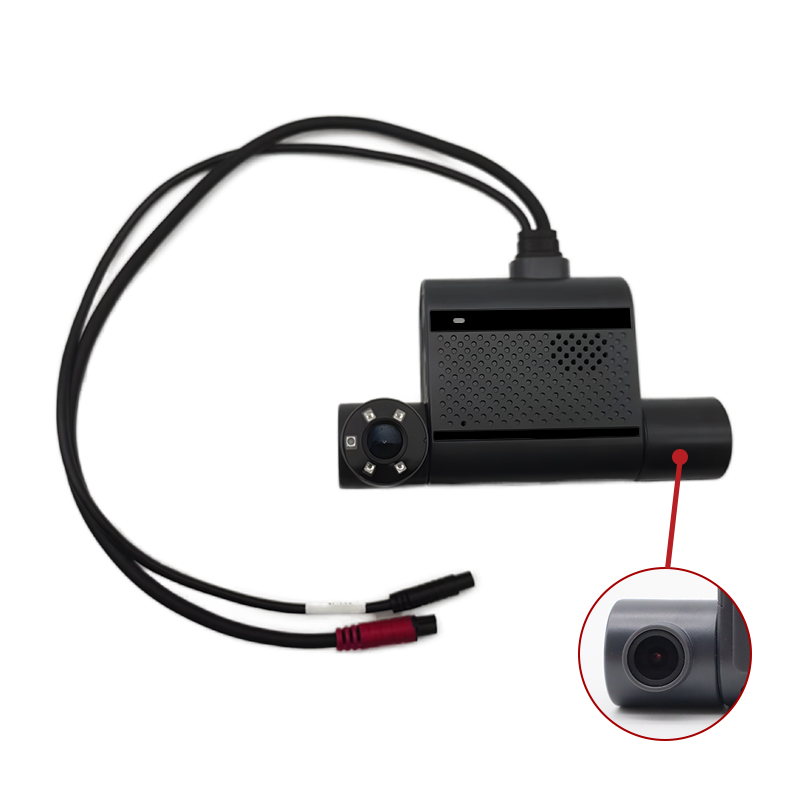

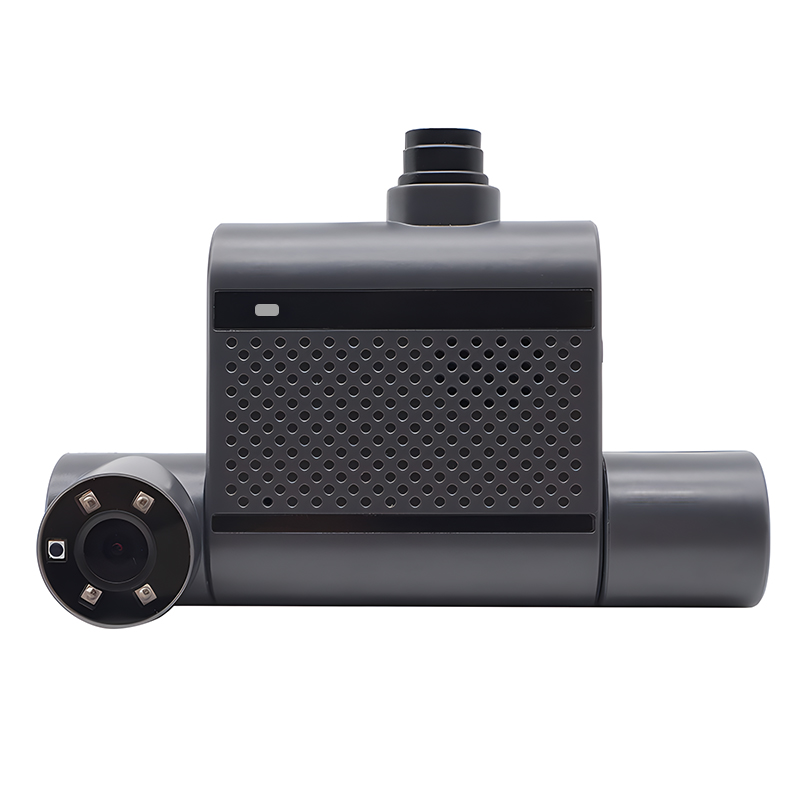

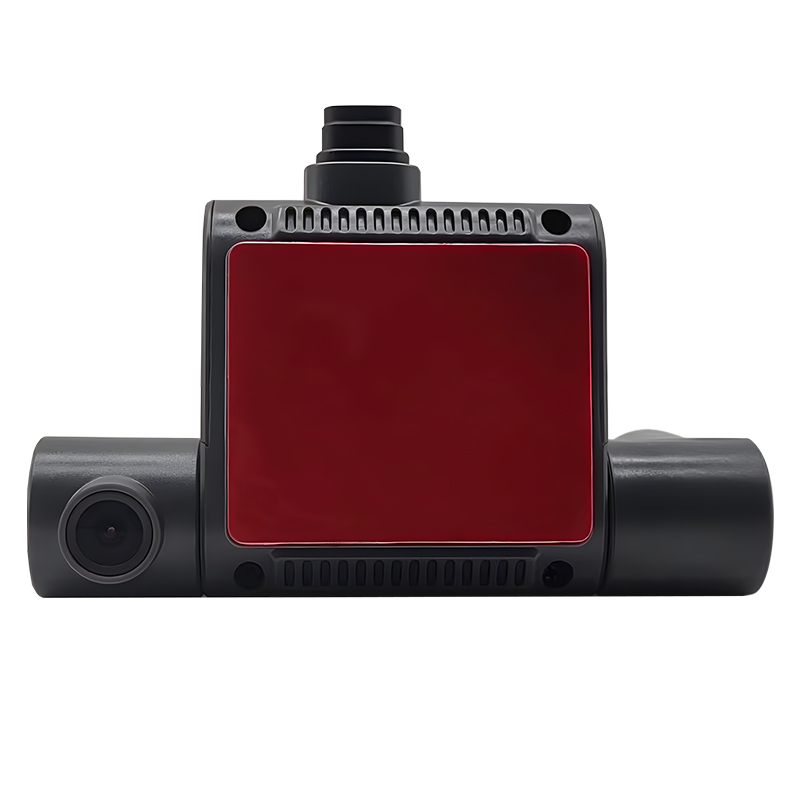

4G Dvr Car Dash Cam Images:
3 channel dash cam front and rear inside with 4G, Wifi and GPS tracking, dash cam with gps and speed recording for commercial truck camera monitoring system. Car dual camera video recorder can operated on yunweobao APP via built-in Wifi, car dvr dash cam app can remotely control and view the vehicle's drive status. Dash cam with gps and speed software also is available. GPS dash cam driving recorders can record the driver's speed and location, which can help the driver drive more regularly and also provide assistance for fleet management.
For more details about car dvr dash cam instructions and manuals, please contact us!
