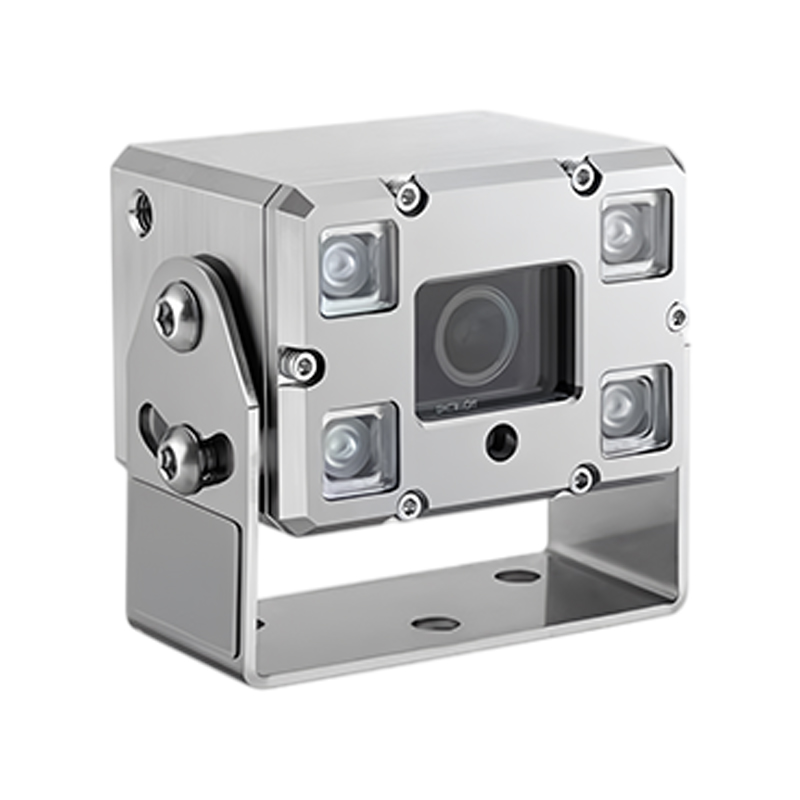

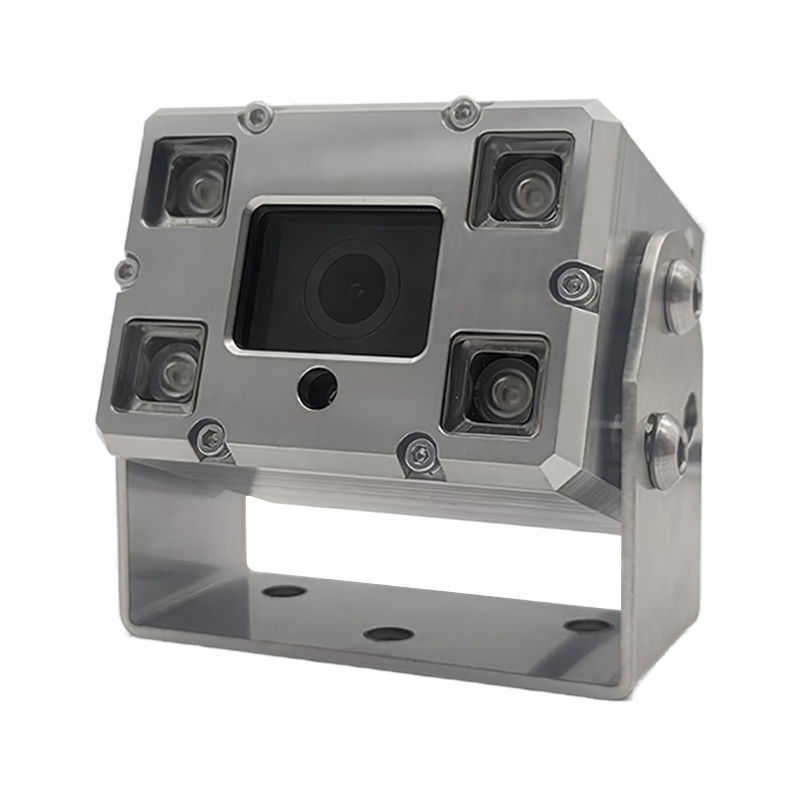

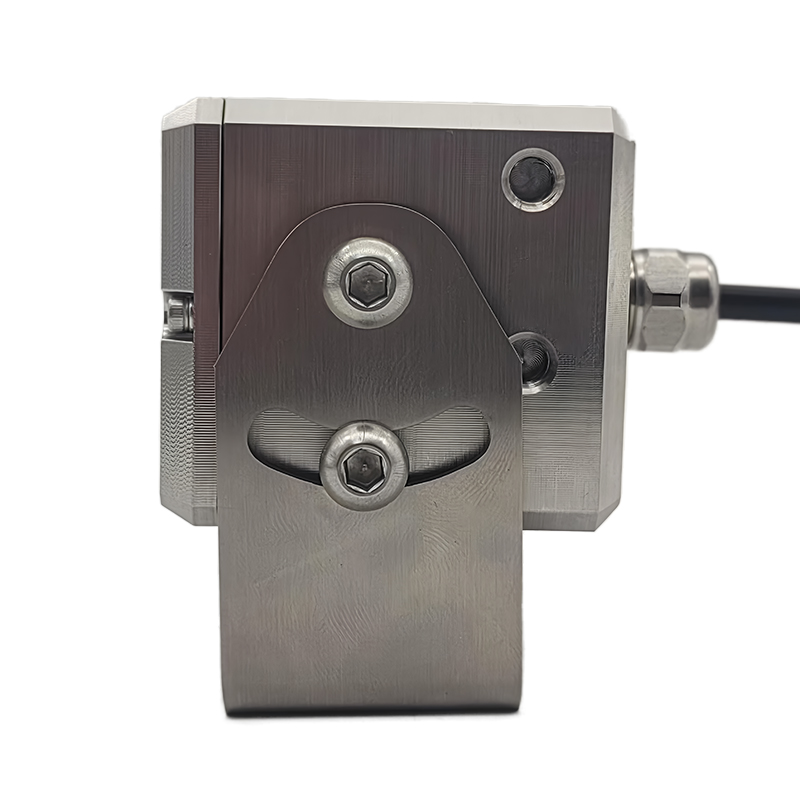

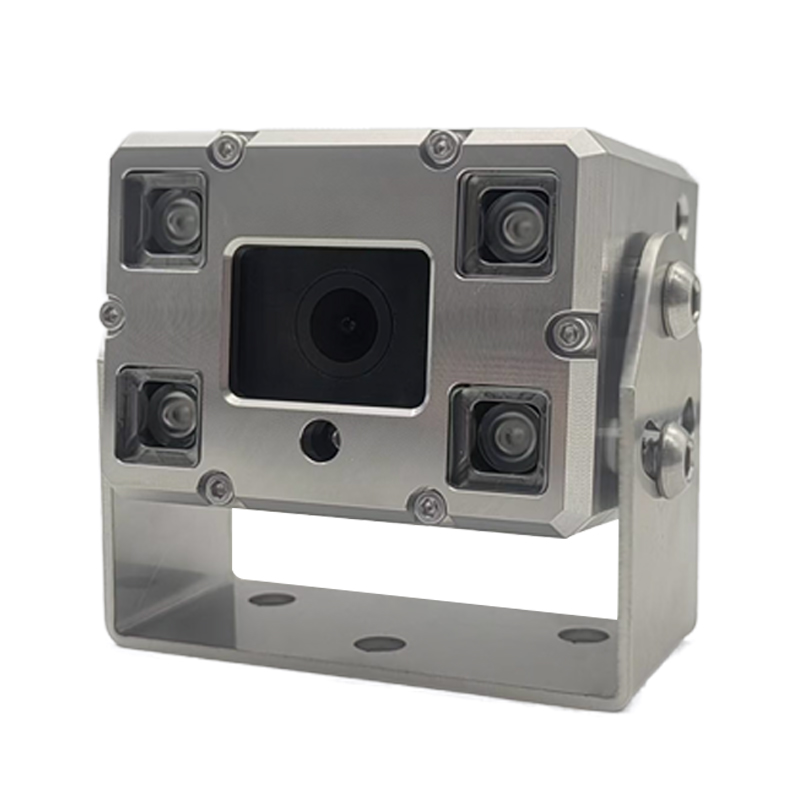

304 Stainless Steel IP69K AHD Truck Rear View Camera with 4-LED IR Night Vision

Key Features

1. Marine-Grade 304 Stainless Steel Body

Machined from real 304 stainless steel instead of plated zinc alloy. No paint to chip, no rust under road salt, chemical wash or coastal humidity — built to last on garbage trucks, reefers, seafood haulers and port equipment.

2. IP69K Sealed Against Pressure Wash

Tested against close-range, high-pressure, high-temperature water jets and full dust immersion. Survives daily bay washes, road splash and winter slush without condensation inside.

3. 120° Viewing Angle on a 3.6mm Lens

Wide enough to cover side blind spots and rear corners, tight enough to preserve natural distance perception. Compared with ultra-wide fisheye lenses, the 3.6mm setup reduces distortion so drivers can judge how close the trailer, curb or obstacle really is.

4. 4-LED IR Night Vision

Four infrared LEDs illuminate the area directly behind and beside the vehicle after dark. Focused output avoids the over-exposed white-out common on dense IR arrays, and the tempered glass front keeps image clarity high after years of washing.

5. CVBS / AHD, PAL / NTSC — Your Choice

Order the format that matches your existing monitor or MDVR. Works with legacy analog systems and newer AHD commercial displays.

6. 4Pin Aviation Connector

Locking, sealed and vibration-rated. The standard connector on most fleet MDVRs and heavy-duty wiring looms — far more reliable than bare pigtails or RCA plugs on rough terrain.

Specifications

Product Type: Heavy duty side / rear view vehicle camera

Housing Material: 304 stainless steel

Front Window: High-transparency tempered glass

Video Input / Output: CVBS / AHD (optional)

Video System: PAL / NTSC (optional)

Lens: 3.6 mm

Viewing Angle: 120°

Night Vision: Infrared, 4 IR LEDs

Waterproof Rating: IP69K

Power Supply: DC 12V (standard) / 24V (optional)

Connector: 4-pin aviation

Built-in Microphone: No

Operating Temperature: -20°C ~ +75°C (RH 95% max.)

Storage Temperature: -25°C ~ +85°C (RH 95% max.)

Applications

• Trucks, tractors and semi-trailers — rear backup and side blind-spot monitoring
• Buses, coaches and minibuses — passenger-side near-view cameras
• Garbage trucks, sweepers and sanitation vehicles — chemical-wash compatible
• Refrigerated trucks (reefers) — freeze-thaw and condensation resistant
• Marine vessels, workboats and port equipment — salt-spray proof
• Mining, construction and agricultural machinery
• Fleet retrofits, MDVR and AHD monitor integration projects

Why Buy From Us

We are a China-based manufacturer specializing in heavy duty vehicle camera systems. Beyond this standard model we support:

• Custom PAL / NTSC and CVBS / AHD configuration
• Custom cable length and connector tailoring to your harness
• Private-label logo, packaging and fleet branding
• Volume pricing for distributors, system integrators and aftermarket installers

Send us your monitor / MDVR model and vehicle type, and we will confirm compatibility and quote within 24 hours. Sample orders are accepted.

FAQ

Q1. What is the advantage of a 304 stainless steel housing?

A. Most "heavy duty" cameras use zinc alloy with a painted coating that chips after one winter of road salt. 304 stainless resists corrosion on its own, which is why it is specified for marine, sanitation and refrigerated applications.

Q2. Is IP69K the same as IP67?

A. No. IP67 only covers temporary immersion. IP69K is tested against high-pressure, high-temperature jets — exactly the truck bay wash environment — and is the rating to ask for on commercial vehicles.

Q3. Can I use this camera on a 24V truck?

A. Yes. The standard SKU runs on DC 12V. Order the 24V variant for heavy trucks and buses; do not use a buck converter, which adds a failure point.

Q4. Is 120° wide enough for side blind spots?

A. Yes. It covers side blind zones and rear corners while keeping perspective natural. Ultra-wide 150° lenses show more area but distort distance, which is risky when judging clearance.

Q5. Will it work with my old CVBS monitor or new AHD DVR?

A. Yes. Choose CVBS or AHD when ordering, and PAL or NTSC to match your region.

Q6. Does the camera record audio?

A. No — this model does not have a built-in microphone, keeping the sealing simpler and more reliable.

Q7. What vehicles is this camera suitable for?

A. Trucks, buses, trailers, reefers, sanitation vehicles, marine vessels, mining and agricultural machinery, and any 12V / 24V commercial vehicle needing a rugged backup or side-view camera.
