3CH ADAS+DMS Dual Lens AI Dash Camera 4G+GPS+WIFI Module

Carleader's 1080p dual lens car dvr dash cam with built-in DVR function,4G,Wifi and GPS tracking.3 Channel AI Dash Cam with ADAS and DSM function to assist driver monitoring the vehicle's surroundings.DSM is driver status monitoring. Car dvr dash cam camera video recorder support APP and platform operation.

Model:CL-MT95L-A3

Send Inquiry

Product Description

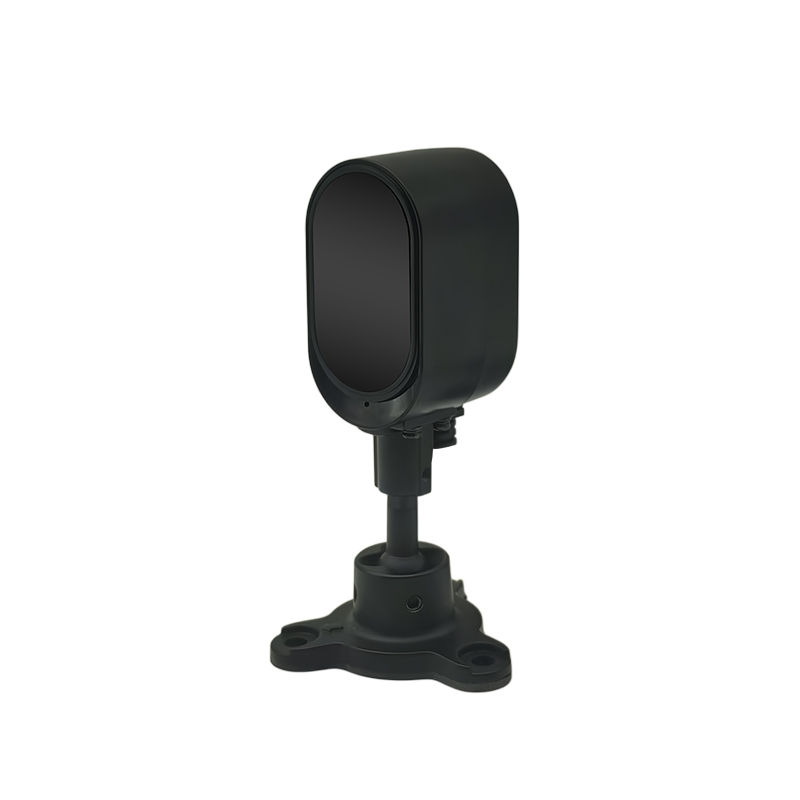

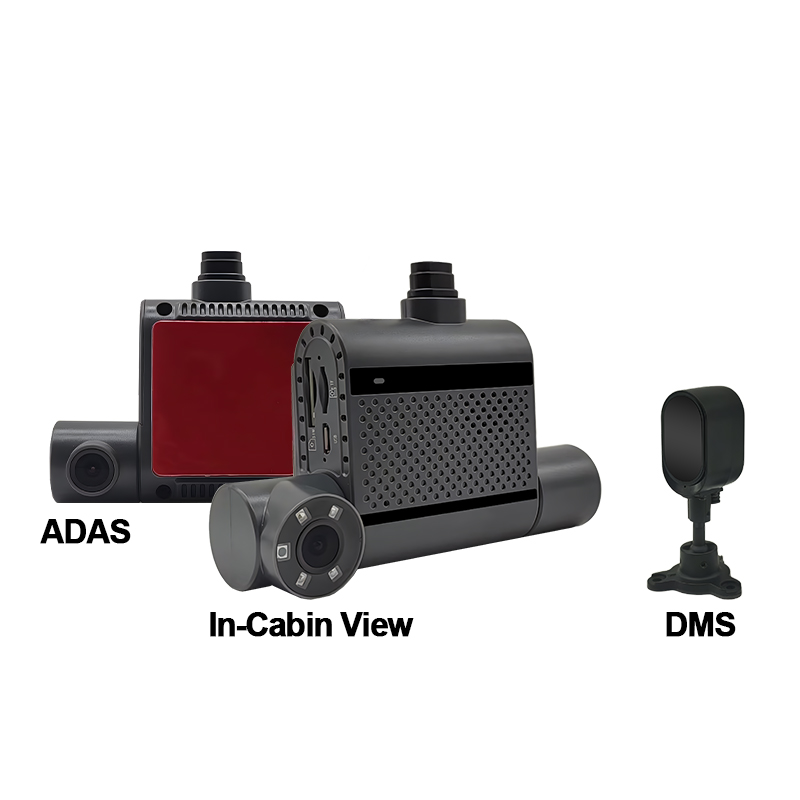

Carleader 3CH ADAS+DMS Dual Lens AI Dash Camera 4G+GPS+WIFI Module with Advanced Driver Assistance Systems (ADAS) and Driver Monitoring System(DMS). 1CH 1080P front view ADAS camera + 1CH 1080P in-car view camera + 1CH external 720P DMS camera, DMS camera can detect the driver's driving behavior and start the alarm. Abnormal driving conditions include fatigue, distraction, smoking and talking on the phone while driving.

The ADAS camera is located in the front of the vehicle, helping the driver and the vehicle better understand the surrounding driving environment and assisting the driver to avoid collisions.

Parameters:

3CH ADAS+DMS Dual Lens AI Dash Camera 4G+GPS+WIFI Module
Item	Device parameter	Performance
System	Operating system	Embedded Linux operating system
	Operating language	Chinese/English
	Operating interface	Configuration through operation and maintenance treasure
	Password security	User password management
Audio & Video	Video compression	H.265/H.264
	Image resolution	1080P/720P /960H/D1/CIF
	Recording quality	Class 1-6 optional
	Audio Compression	G.711A, G.711U, G.726
	Recording method	Audio & Video synchronized recording
Recording&Playback	Video method	Automatic/Alarm
	Audio bit rate	8Kb/s
	Video search	Searchable by channel, type of recording
Firmware upgrading	Upgrading mode	Manual/Automatic/Remote
Firmware upgrading	Upgrading method	USB disk, TF card, wireless network
Interface	Ignition input	1 ACC signal
	Audio input	Built -in MIC
	Audio output	Built-in 2W speaker
	TF Card	1xTF Card interface
	SIM Interface	1x MICRO SIM Interface
	USB Port	1x MICRO USB Port
	Led indicator light	PWR/RUN two color light
Extended functions	GNSS	Built-in ceramic antenna, GPS+BD+GLONASS
	Wireless	4G all-network support
	WIFI	Frequency 2.4GHz
Other	Power input	DC: 8V~36V
	Typical power consumption	Less than5W
	Working temperature	-20-70℃
	Storage	1080P 600MB/Hour/CH H.265 1080P 1200MB/Hour/CH H.264
	Dimension	125.686.646.9mm

Images:
