3CH DVR AI Dash Camera with 4G GPS, ADAS, DSM and WiFi for Fleet Vehicles

Key Features

1. 3-Channel Vehicle Video Recording

Supports multiple camera views for different vehicle monitoring requirements:

• Front AHD 1080P camera
• Rear/in-cabin AHD 1080P camera
• External DSM camera input
• 130° viewing angle for front and in-cabin cameras

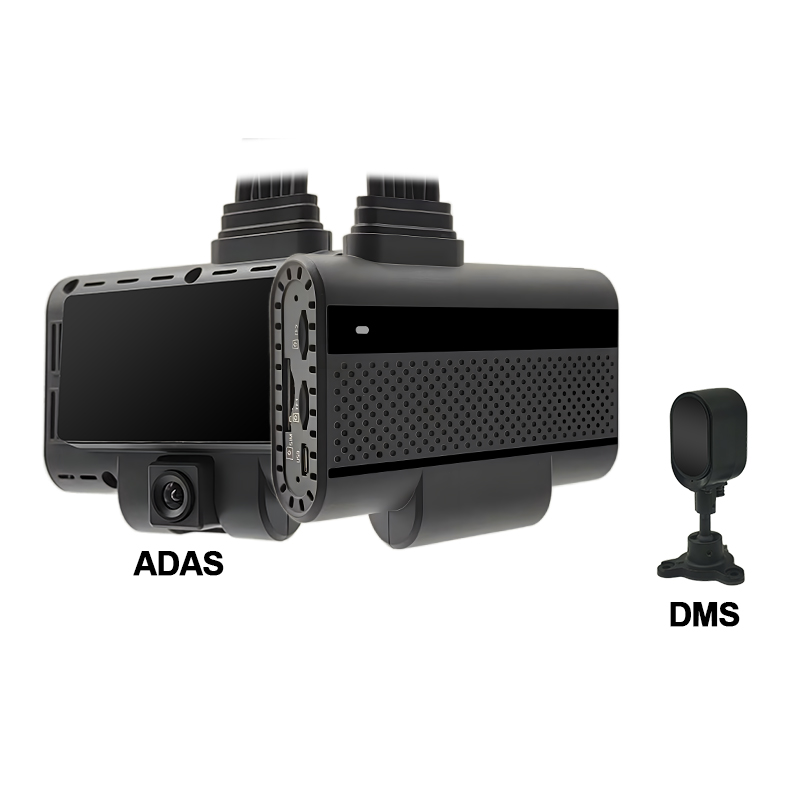

2. ADAS Front Camera

The front camera supports ADAS functionality, helping create an additional layer of driving safety monitoring for commercial vehicles and fleet applications.

3. DSM Camera Support

The dedicated DSM input allows the system to be integrated with a driver monitoring camera for applications requiring additional driver-related monitoring.

4. 4G Fleet Connectivity

Built-in 4G full-network communication allows the dash camera to be used in connected vehicle and fleet management systems.

5. GPS / BeiDou / GLONASS Positioning

Multi-system GNSS support provides positioning capability for vehicle tracking and recorded video applications.

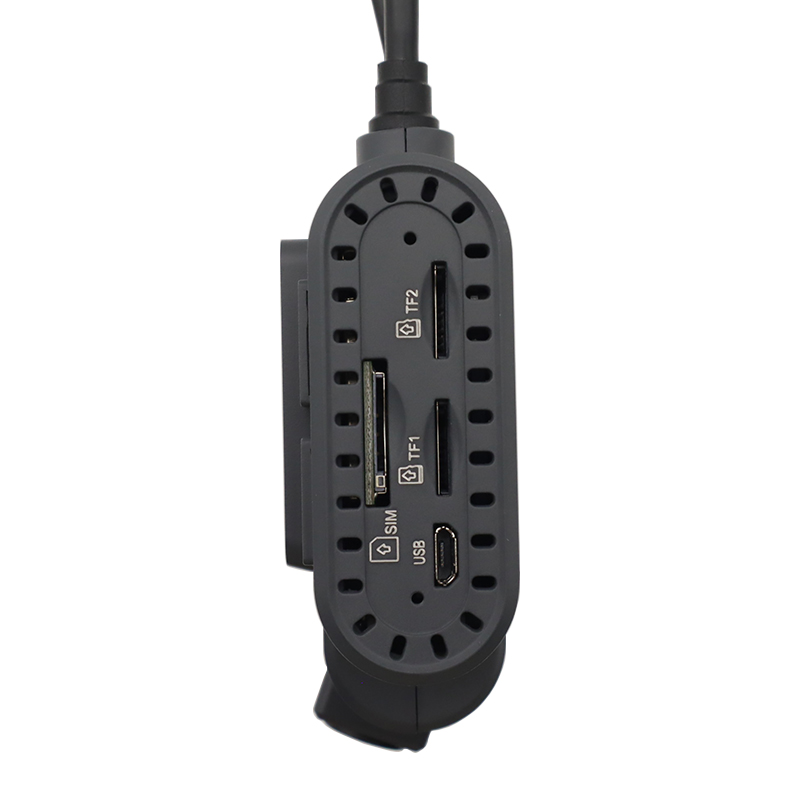

6. Up to 512GB TF Card

The DVR supports TF card storage of up to 512GB, making it suitable for applications requiring extended video recording.

7. GPS Drift Suppression

A dedicated GPS drift suppression algorithm improves positioning stability during vehicle operation.

Technical Specifications

Product Type: 3CH DVR AI Dash Camera

Camera Channels: 3CH

Front Camera:

- Resolution: AHD 1080P

- Viewing Angle: 130°

- Function: ADAS

In-Cabin Camera:

- Resolution: AHD 1080P

- Viewing Angle: 130°

DSM Input: 1CH External DSM Camera

Video Encoding: H.265

Storage:

- Storage Type: TF Card

- Maximum Storage: 512GB

- Built-in Storage: 4GB

4G: Full Netcom

Positioning: GPS / BeiDou / GLONASS

WiFi: 2.4GHz

Power:

- Power Input: DC 9–36V

- Power Protection: Under-voltage / Short Circuit / Reverse Connection

- Backup Power: Super Capacitor

Antennas:

- 4G Antenna: Built-in

- GNSS Antenna: Built-in

- WiFi Antenna: Built-in

Applications

This AI vehicle DVR camera can be used for:

• Commercial vehicle fleet management
• Truck video surveillance
• Bus monitoring systems
• Van and delivery vehicle monitoring
• Driver monitoring applications
• ADAS fleet safety systems
• 4G vehicle video solutions
• Logistics and transportation fleets
• Vehicle DVR replacement or system upgrades

FAQ

Q1:What is a 3CH AI dash camera?

  A 3CH AI dash camera is a vehicle recording system that supports three camera channels. This model combines a front ADAS camera, an in-cabin camera and an external DSM camera input.

Q2:Does the camera support 4G?

 Yes. The DVR has a built-in 4G full-netcom module, making it suitable for connected fleet and remote vehicle monitoring applications.

Q3:What storage capacity does it support?

 The system supports a TF card with a maximum capacity of 512GB.

Q4:Does it support GPS?

 Yes. The system supports GPS, BeiDou and GLONASS positioning.

Q5:What vehicles can use this DVR?

 The 9–36V wide-voltage design makes it suitable for many commercial vehicles, including trucks, buses, vans and fleet vehicles.
