4CH AHD SD AI Mobile DVR with 4G GPS WiFi, ADAS DSM BSD for Commercial Vehicles

Features

1. The 4CH AHD DVR supports four AHD camera inputs and 720P real-time recording, allowing multiple areas around or inside a commercial vehicle to be monitored simultaneously.

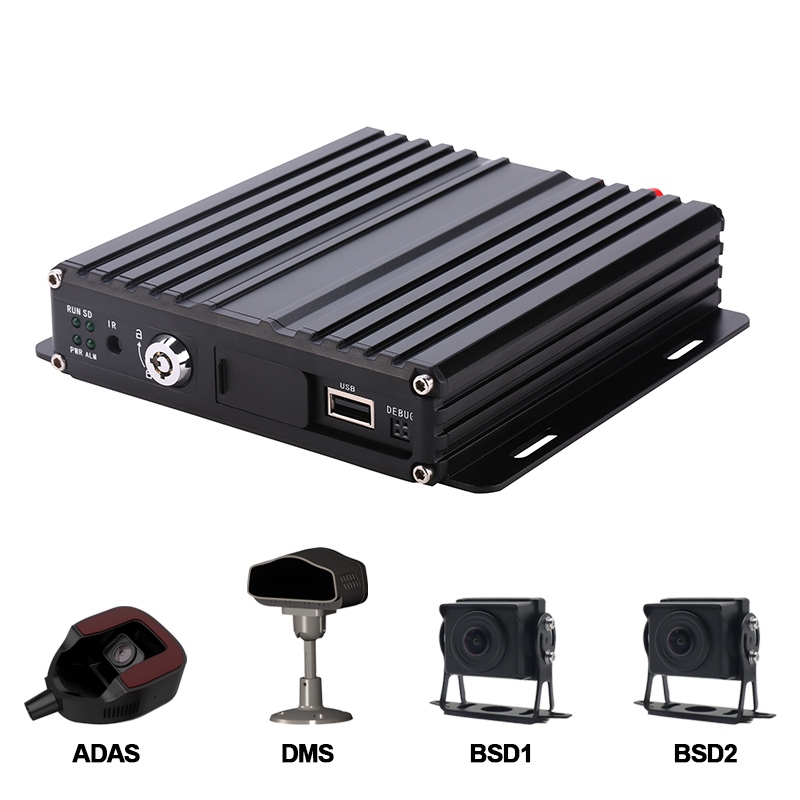

2. The AI Mobile DVR supports AI algorithms including ADAS, DSM and BSD, providing an expandable solution for intelligent vehicle safety and driver monitoring projects.

3. Optional 3G/4G communication enables the 4G Mobile DVR to support video and data transmission for fleet monitoring and remote management applications.

4. Built-in GPS support provides positioning functionality for fleet tracking and vehicle monitoring applications.

5. The WiFi Mobile DVR supports 802.11b/g/n 2.4GHz wireless communication for convenient local video downloading.

6. The SD Card Vehicle DVR supports SD card storage up to 512GB and includes a file management system designed to help protect recorded data.

7. Under-voltage, short-circuit and reverse-polarity protection help improve the reliability of the Vehicle Mobile DVR in demanding vehicle environments.

Parameter

Product Name: 4CH AHD SD AI Mobile DVR

Product Type: AI Mobile DVR / Vehicle DVR / Mobile DVR

Video Input: 4CH AHD

Video Resolution: 720P Real-Time Recording

Video Compression: H.265

AI Functions: ADAS / DSM / BSD

Video Output:1CH Synchronized AV Output,1CH VGA Output,1CH CVBS Output

Storage: SD Card

Maximum Storage: 512GB

GPS: Supported

WiFi: 802.11b/g/n, 2.4GHz

Wireless Transmission: Optional 3G/4G

USB Interface: USB 2.0

USB Function: U Disk / Mouse

Power Input: DC 9–32V

Power Protection:Under-Voltage Protection, Short-Circuit Protection, Reverse-Power Protection

Power Management:Low-Voltage Shutdown, Low Standby Power Consumption

SD Card Management:SD Card Status Detection, Data Protection System

Dimension: 142 × 152 × 32 mm

Application Scenarios

• Commercial Vehicle Fleet

The Commercial Vehicle DVR can be installed in fleet vehicles for multi-camera recording, GPS positioning and vehicle video monitoring.

• Truck & Van Monitoring

The 4CH Mobile DVR can connect multiple AHD cameras to monitor the front, rear, side or cabin areas of trucks and vans.

• Bus & Passenger Transport

For buses and passenger vehicles, the 4CH Vehicle DVR can provide continuous video recording for vehicle safety and incident review.

• Logistics & Delivery Fleets

The combination of GPS, 4G, WiFi and multi-channel video makes the Fleet Vehicle DVR suitable for logistics and delivery vehicle monitoring.

• AI Safety Applications

With ADAS, DSM and BSD support, the AI Vehicle DVR can be integrated into intelligent vehicle safety solutions.

• Fleet Surveillance Projects

The Mobile Video Surveillance System can be used by fleet operators, vehicle integrators and system solution providers requiring multi-camera vehicle recording.

FAQ

Q1: How many cameras can this Mobile DVR connect?

A: This 4CH AHD Mobile DVR supports up to 4 AHD camera inputs.

Q2: What recording resolution does the 4CH Vehicle DVR support?

A: It supports 720P real-time recording.

Q3: Does the AI Mobile DVR support ADAS and DSM?

A: Yes. The DVR supports AI algorithms such as ADAS, DSM and BSD.

Q4: Does this Vehicle DVR support GPS?

A: Yes. GPS positioning is supported.

Q5: Does the 4CH Mobile DVR support 4G?

A: Optional 3G/4G transmission is supported, depending on the configuration.

Q6: Can I download recorded videos through WiFi?

A: Yes. The DVR supports 2.4GHz WiFi 802.11b/g/n for wireless video downloading.

Q7: What storage capacity does the SD Card Vehicle DVR support?

A: The DVR supports SD card storage up to 512GB.

Q8: What is the working voltage?

A: The Commercial Vehicle DVR supports a 9–32V DC wide voltage range.

Q9: Is this DVR suitable for fleet vehicles?

A: Yes. It is designed for applications including commercial vehicles, trucks, vans, buses, logistics fleets and vehicle surveillance systems.

Q10: Can you provide OEM or customized solutions?

A: OEM/ODM and project-based configurations can be discussed according to customer requirements, camera configuration and application.
