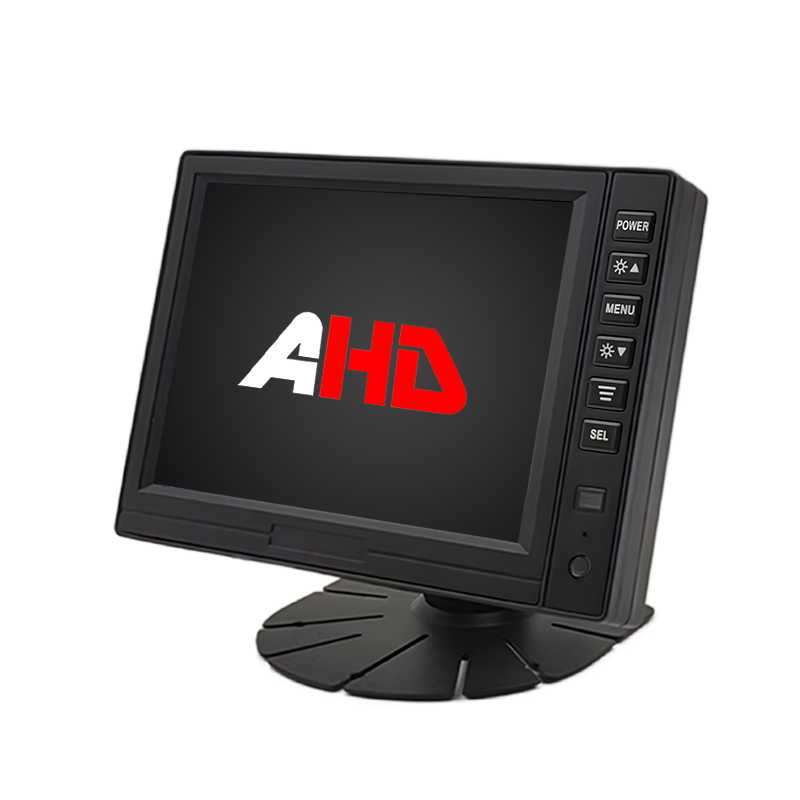

Carleader 5.6 Inch AHD Vehicle Reversing Monitor with 640*480 high definition, 4: 3 image, 2 camera inputs and 3 camera inputs for option, support 9-32V power supply. IR remote control and auto dimming function. High quality and durable 5.6 Inch AHD Car Rear View Monitor adopt industrial control LCD screen, supports for industrial vehicles, commercial vehicles, etc. Improve vehicle safety with a reliable, cost-effective 5.6 inch high definition TFT LCD color car rearview monitoring system. The following are the main features and introduction for 5.6 Inch AHD Car Rear View Monitor.
Parameter:
|
5.6 Inch AHD Vehicle Reversing Monitor |
|
|
Model |
CL-S562AHD |
|
Screen Type |
5.6 inch TFT LCD panel |
|
Aspect Ratio |
4 : 3 |
|
Resolution |
640 x 480 (RGB) |
|
Brightness |
350 cd/m2 |
|
Contrast |
400 : 1 |
|
Video Input |
Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 1CH Trigger wire for AHD2 on reversing |
|
Speaker |
Optional (Without as default) |
|
Audio Mode (If with speaker) |
CH1 with audio function |
|
Auto Dimming |
Optional (Without as default) |
|
Remote Control |
Yes, Package include 1x remote |
|
OSD Menu |
Brightness, Contrast, Color, Display Aspect Ratio, Language Select, Trigger Delay, Parking Guide Line On/Off, Reset |
|
Parking Guide Line |
Only for AHD2, activated when trigger the trigger wire (Off as default) |
|
Button Type |
Click buttons |
|
Power Supply |
DC 9~32V |
|
Connection Plug (Connector) |
4PIN aviation connector as default, customized to RCA connector available |
|
Operating Temperature |
-20°C~+70°C (RH0%-RH90%) |
|
Storage Temperature |
-30°C~+80°C (RH0%-RH90%) |
|
Warranty |
2 Years |
|
Dimension |
15.5 x 11.5 x 2.5 cm (without shade) |
