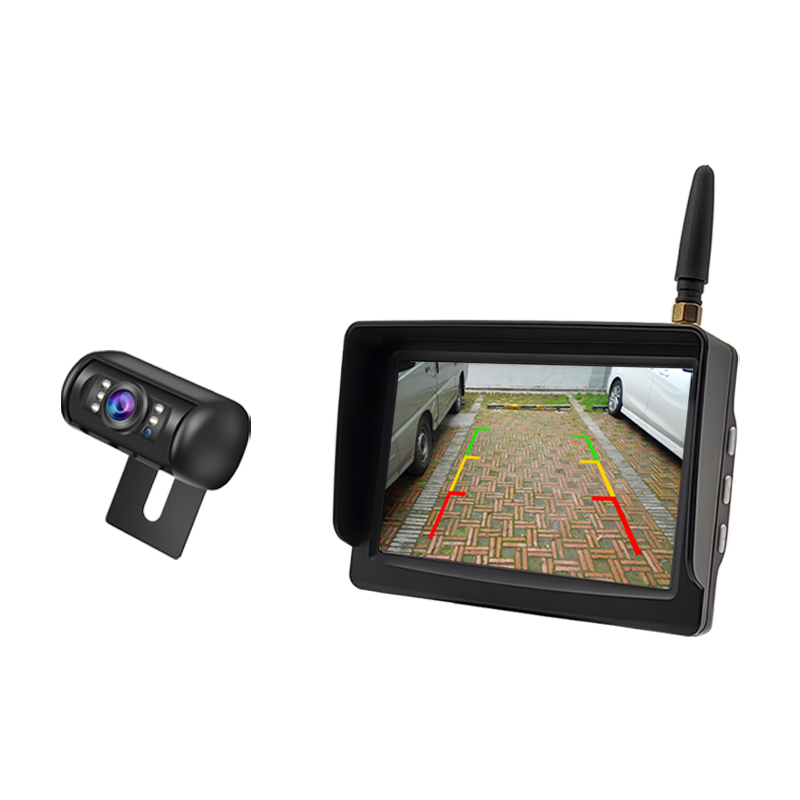

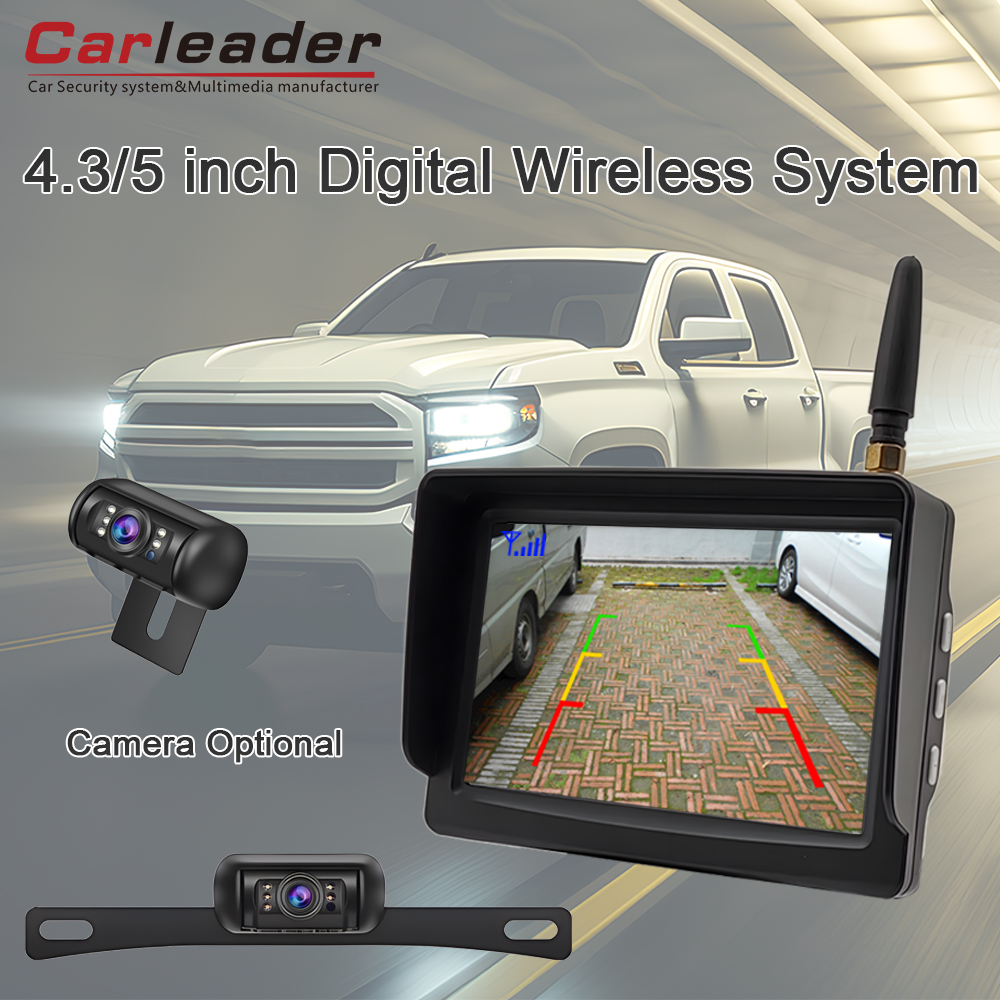

Carleader 5 Inch Wireless Reversing Monitor and Camera System for Vehicle is a cutting-edge safety solution designed specifically for commercial vehicles. This all-in-one kit combines a high-resolution 5-inch digital monitor with a rugged wireless camera, providing drivers with clear visibility of blind spots, rear areas, and cargo spaces—enhancing overall safety and operational efficiency.
Parameter:
|
5 Inch Wireless Monitor |
|
| Resolution | 800 x 480 (RGB) |
| Aspect Ratio | 16 : 9 |
| Brightness | 500 cd/m2 |
| Contrast | 1200:1 |
|
Viewing Angle |
L(70) R(70) UP(50) DOWN(70) |
|
OSD Language |
English ,Chinese,NEDE, PYCC,Italian,ESPA,DEUT,French,PORT |
|
Transmission Distance |
100M in open area |
|
Frequency Point |
2400 ~ 2483.5MHz |
|
Receiving Sensitivity |
-85dBm |
|
Power Supply |
DC 12-24V |
|
Power Consumption |
<5W |
|
Shockproof Level |
4G |
|
Working Temperature |
-20 to 70 degree |
|
Storage Temperature |
-30 to 80 degree |
| Dimension |
132mm*88mm*38mm |
|
Bracket Type |
Suction Cup Bracket |
|
Wireless Rear Camera |
|
|
Image Sensor |
1/3" CMOS |
|
Resolution |
600 TV Lines |
| IR LED | 5 PCS |
| Camera Optional |
1. Camera with Universal Bracket 2. Camera Only For USA License Plate |
|
Waterproof Level |
IP69K |
|
View Angle |
120 Degree Angle |
|
Emission Power |
17 dBm |
|
Transmission Distance |
100M in open area |
|
Frequency Point |
2400 ~ 2483.5MHz |
|
Power Supply |
DC 12-24V |
|
Power Consumption |
<3W |
|
Shockproof Level |
4G |
|
Working Temperature |
-20 to 70 degree |
|
Storage Temperature |
-30 to 80 degree |
| Dimension: |
Universal (65mm*58mm*43mm) USA (210mm*43mm*43mm) |
