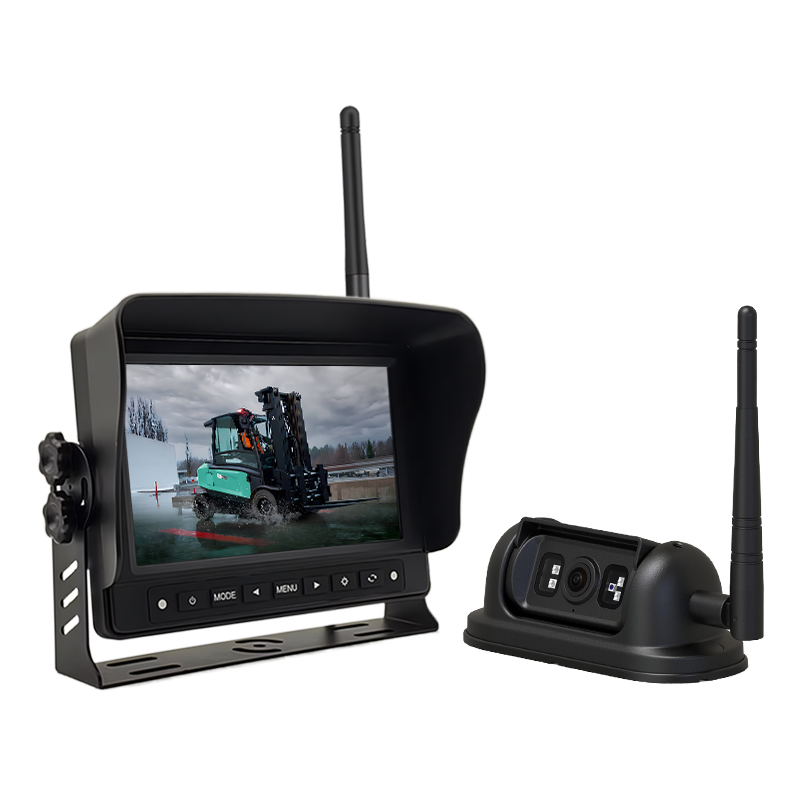

7-Inch 2.4G Digital Wireless Waterproof Monitoring System

Carleader 7-Inch 2.4G Digital Wireless Waterproof Monitoring System combining a 7-inch digital display and new camera with advanced 2.4G wireless technology, this system delivers seamless video transmission and robust functionality for industrial, commercial, or outdoor applications.

Key Features

7-Inch High-Resolution Display: Enjoy crisp 16:9 imaging with a resolution of 1024×RGB×600 and 450 cd/m² brightness, ensuring clarity even in bright conditions.

Long-Range Wireless Connectivity: Built-in 2.4G transmitter (camera) and receiver (monitor) enable stable video transmission up to 80–120 meters.

Expandable Inputs: Default 1 wireless video input, with optional expansion to 2/3/4 720P camera inputs for Single / Dual / Quad display monitoring.

Auto-Pairing Technology: Hassle-free setup with automatic camera-to-monitor pairing.

Specification:

Monitor:

7 inch digital panel, 16:9 image ratio

Resolution: 1024xRGBx600

Screen Type: 16:9

Backlight: LED, 400cd/m2

Contrast: 500:1

Remote control

Menu language: English, Russian, Korean, Portuguese, Spanish, Italian, Dutch, Finnish, German, French, Chinese.

AV input:1CH 2.4G wireless video signal input(default)

2/3/4CH wireless video inputs optional, support split display

Wireless distance about 80-120m

2.4G frequency point: 2400 ~ 2483.5MHz

Receiving Sensitivity: -85dBm

Power supply:DC12-24V

Power consumption:<6W

Waterproof metal case design

Waterproof:IP69K

Shockproof level:4G

detachable sunshade

Metal U type bracket

dimension:18.5 x 12.8 x 3.0cm( without shade)

                  20.4 x 14.1 x 7.8cm (with shade)

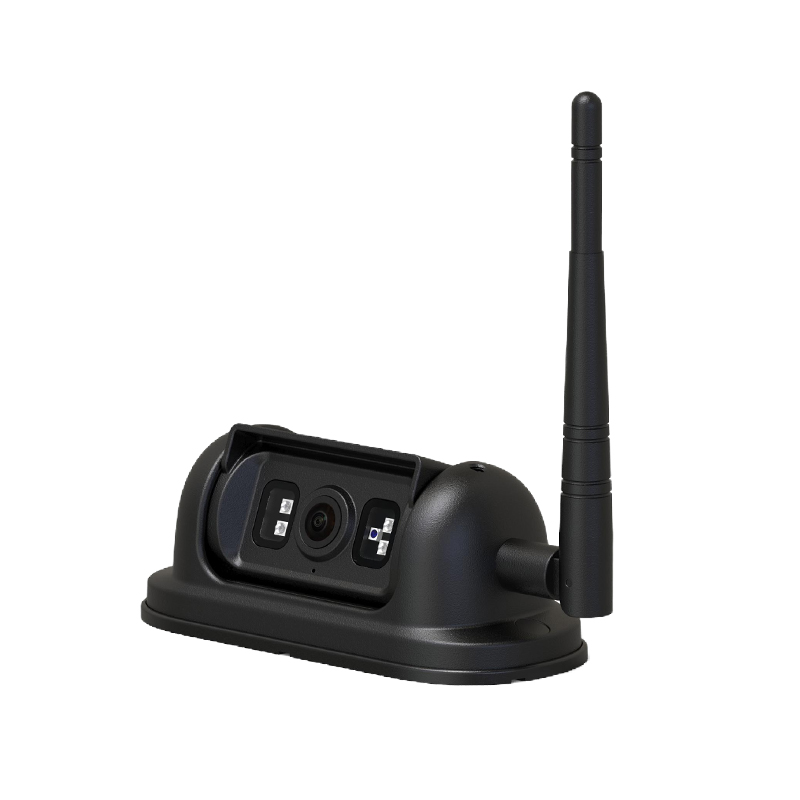

Camera:

Images Sensors:1/2.7″&1/3″

Built-in 2.4G wireless transmitter in camera

PAL/NTSC automatic switch

Camera Angle: 120°

18 IR LED, Support IR Night Vision.

Pairing: Auto

waterproof: IP69K

Video output: AHD 720P

Infrared (IR) LED. Effective range: 20m

Material: zinc alloy

Signal to noise ratio: 69dB

Working power supply: DC12V-24V

Working temperature: -20 ° C ~ +70 ° C

SD Card recording function( Optional )

Application:Truck/Trailer/Bus/RV/Pickups/Trailer/Forklifts
